£520.20
excl. VAT
£624.24 incl. VAT
£624.24
incl. VAT
£520.20 excl. VAT
Free shipping
In stock
Expected to ship on Tuesday 22 September
Product details

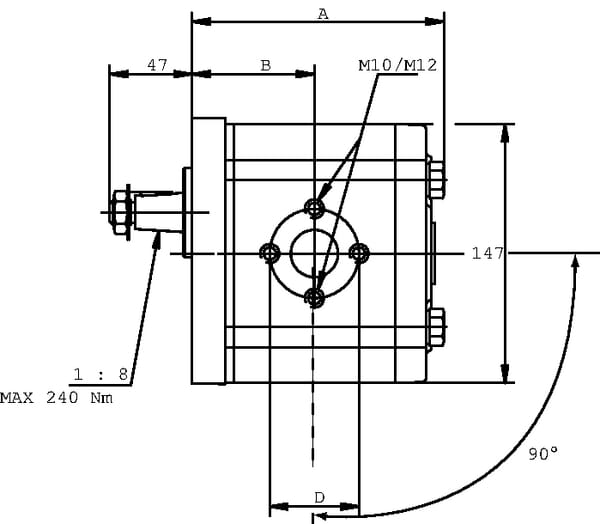

| AHousing length | 133 mm |
|---|---|
| Application range | Mobile applications, Industrial applications |
| BConnection port to flange distance | 64.5 mm |
| Benefits | Wide range of applications, Can be used in challenging environmental conditions |
| Details | Various connection options, Outer housing pivoted |
| Displacement | 26.7 cm³/rev |
| DSuction port bolts circle diameter | 51 mm |
| Flange and back cover material | Cast iron |
| Flange code | E3 |
| Flange type norm | European |
| Housing material | Aluminium |
| Max. continous working pressure | 250 BAR |
| Max intermittend working pressure | 270 BAR |
| Max pressure peak | 280 BAR |
| Max rotation speed | 3000 r/min |
| Min rotation speed | 350 r/min |

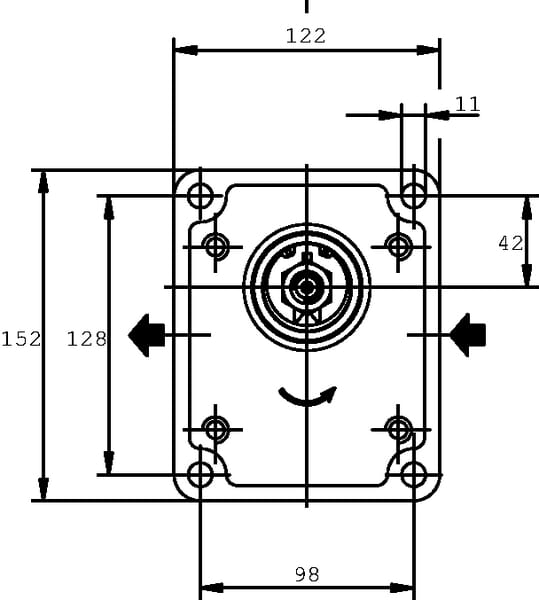

| Mounting diameter | 50.8 mm |
| Mounting holes horizontal distance | 95 mm |
| Mounting holes vertical distance | 128 mm |
| Number of mounting holes | 4 |
| Port position | Side |
| Pressure port bolts circle diameter | 40 mm |
| Properties | Consists of 3 parts, Electrohydraulic ventilator drive, Customer-specific design possible |
| Pump group code | 3 |
| Rotation direction | Counter-clockwise (CCW) |
| Sealing type | Standard |
| Shaft cone size code | 1:8 |
| Shaft diameter | 21.59 mm |
| Shaft thread diameter | M14 |
| Shaft thread pitch | 1.50 mm |
| Shaft thread type | Metric |
| Shaft type | Tapered 1:8 |
| Shaft type code | 83 |
| Unit | Each |
Logistics
| EAN | 8716106990672 |
|---|---|
| Unit of measure | EA |
| Weight | 8794 g |
| Dimensions | 282 × 154 × 123 mm |
| Dangerous goods | No |
You might also like
Free shipping
BPA000301008

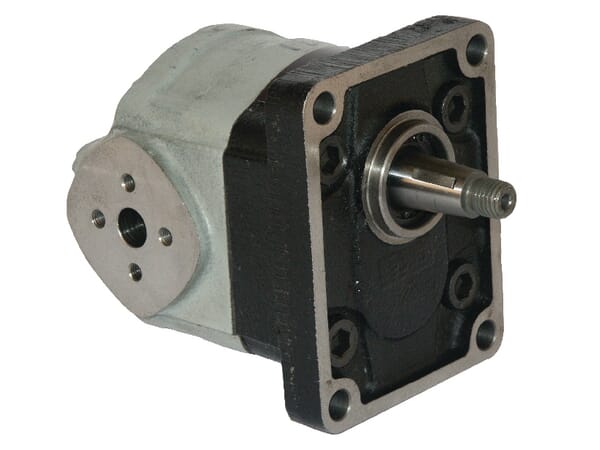

Casappa Motor KM20.14B0-82E2-LEA/EB-N KM2014B082E2
£615.50 excl.
£738.60 incl.
In stock
Expected to ship on Tuesday 22 September
Free shipping
BPA000340234

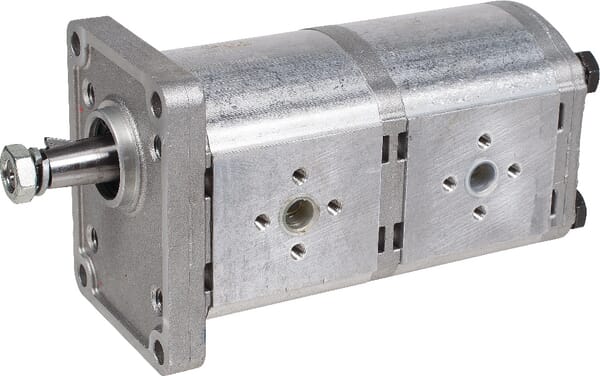

Casappa Pump PLP20.14/20.11,2 D/FS EL PLP201411D082E2
£591.49 excl.
£709.79 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000340397

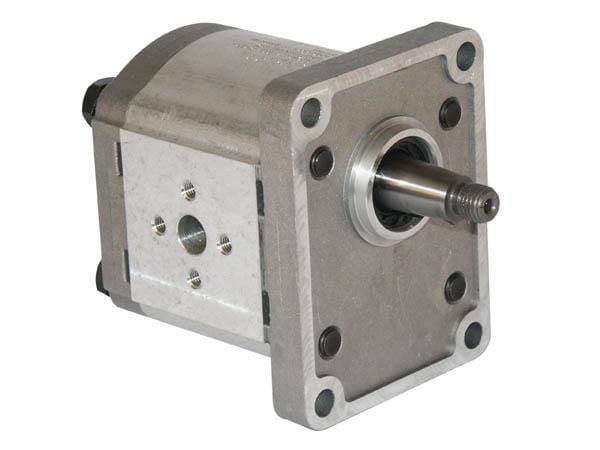

Casappa Pump PLP20.8S0-82E2-LEA/EA-EL PLP208S082E2
£362.79 excl.
£435.35 incl.
In stock
Expected to ship on Tuesday 22 September
Free shipping

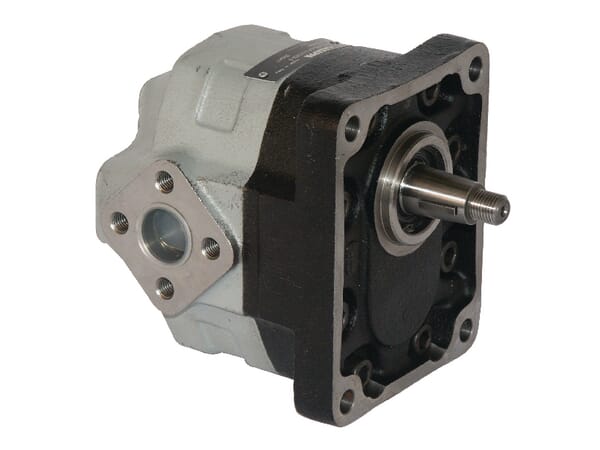

BPA000301034
Casappa Motor KM 30.51 RO-83E3-LED/EB KM3051R83E3
£881.60 excl.
£1,057.92 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000340298

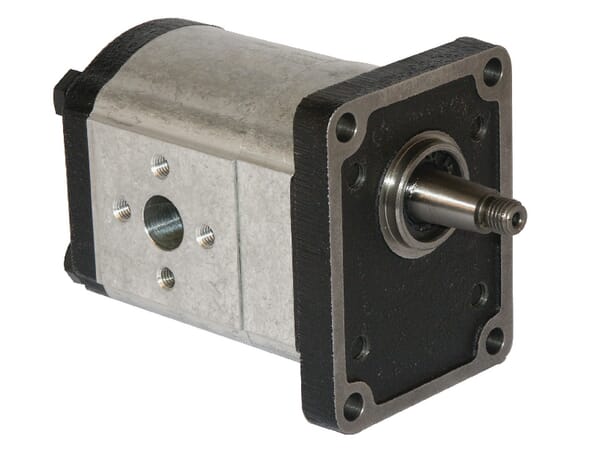

Casappa Pump PLP 20.20-D3 82-E2 LEB/EA PLP2020D382E2
£471.65 excl.
£565.98 incl.
In stock
Expected to ship on Tuesday 22 September
Free shipping
BPA000340293

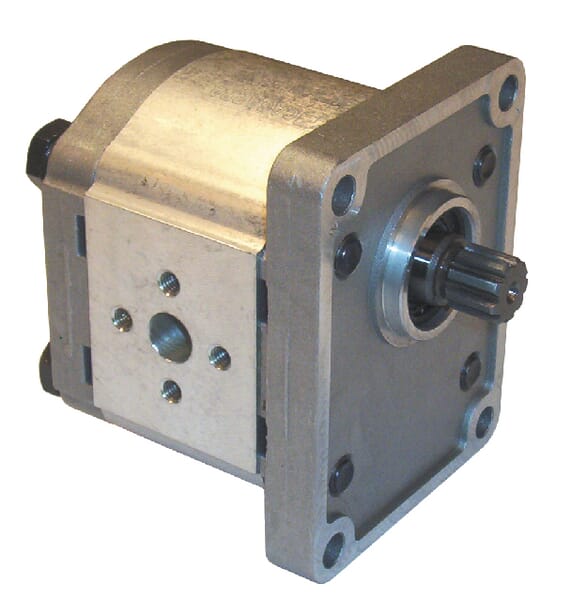

Casappa Pump PLP20.20 D0-12E2-LEB/EA-N- PLP2020D012E2
