£543.97
excl. VAT
£652.76 incl. VAT
£652.76
incl. VAT
£543.97 excl. VAT
Free shipping
In stock
Expected to ship on Monday 21 September
Product details

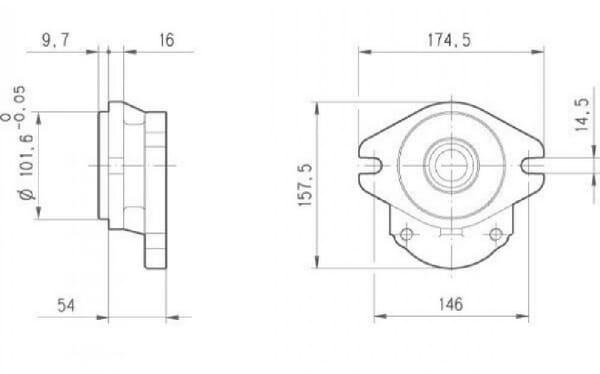

| Connection port to flange distance | 46 mm |
|---|---|
| Displacement | 43.98 cm³/rev |
| Flange and back cover material | Cast iron |
| Flange code | S5 |
| Flange type norm | SAE-B |
| Housing length | 120 mm |
| Housing material | Aluminium |
| Max. continous working pressure | 230 BAR |
| Max intermittend working pressure | 250 BAR |
| Max pressure peak | 260 BAR |
| Max rotation speed | 3000 r/min |
| Min rotation speed | 350 r/min |
| Mounting diameter | 101.6 mm |
| Mounting holes horizontal distance | 146 mm |
| Number of mounting holes | 2 |
| Port position | Side |
| Pressure port bolts circle diameter | 40 mm |
| Pump group code | 3 |
| Rotation direction | Counter-clockwise (CCW) |
| Sealing type | Standard |
| Shaft cone size code | n/a |

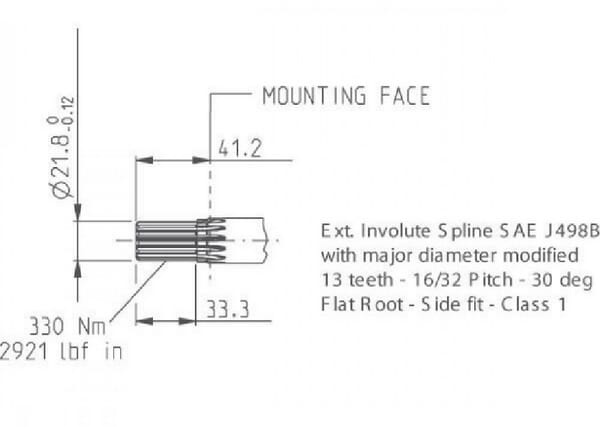

| Shaft diameter | 21.8 mm |
| Shaft number of teeth | 13 |
| Shaft type | Splined 13T |
| Shaft type code | 04 |
| Suction port bolts circle diameter | 51 mm |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 11476 g |
| Dimensions | 220 × 180 × 219 mm |
| Dangerous goods | No |
You might also like
BPA000340529

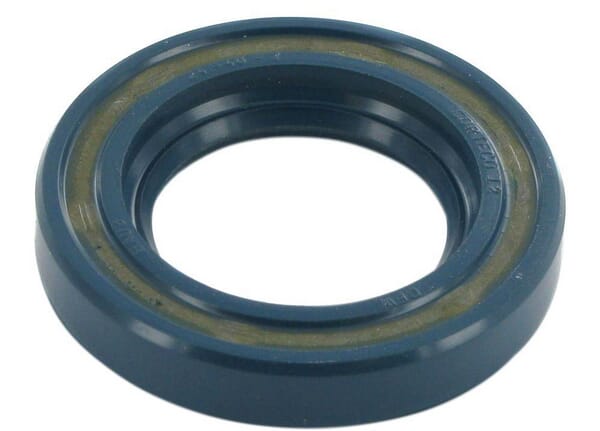

Casappa Shaft seal BA22,22x32x7 viton PLP92045
£43.08 excl.
£51.70 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000340459
Casappa Pump PLP30.73S0-83E3-LEF/ED-N PLP3073S083E3
£664.41 excl.
£797.29 incl.
In stock
Expected to ship on Monday 21 September
BPA000340612
Casappa Tie bolts polaris 20 M10x215 PLP920M10215
£17.48 excl.
£20.98 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000340250

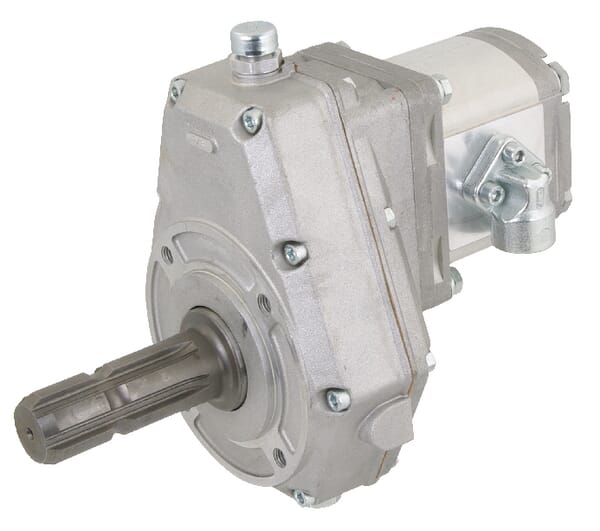

Casappa Gearbox with pump group 2 14cc PLP2014GBF20S1KIT
