£571.06
excl. VAT
£685.27 incl. VAT
£685.27
incl. VAT
£571.06 excl. VAT
Free shipping
In stock
Expected to ship on Thursday 17 September
Product details
| AHousing length | 144 mm |
|---|---|
| Application range | Mobile applications, Industrial applications |
| BConnection port to flange distance | 70 mm |
| Benefits | Wide range of applications, Can be used in challenging environmental conditions |
| Details | Various connection options, Outer housing pivoted |
| Displacement | 43.98 cm³/rev |
| DSuction port bolts circle diameter | 51 mm |
| Flange and back cover material | Cast iron |
| Flange code | E3 |
| Flange type norm | European |
| Housing material | Aluminium |
| Max. continous working pressure | 230 BAR |
| Max intermittend working pressure | 250 BAR |
| Max pressure peak | 260 BAR |
| Max rotation speed | 3000 r/min |
| Min rotation speed | 350 r/min |
| Mounting diameter | 50.8 mm |
| Mounting holes horizontal distance | 95 mm |
| Mounting holes vertical distance | 128 mm |
| Number of mounting holes | 4 |
| Port position | Side |
| Pressure port bolts circle diameter | 40 mm |
| Properties | Consists of 3 parts, Electrohydraulic ventilator drive, Customer-specific design possible |
| Pump group code | 3 |
| Rotation direction | Counter-clockwise (CCW) |
| Sealing type | Standard |
| Shaft cone size code | 1:8 |
| Shaft diameter | 21.59 mm |
| Shaft thread diameter | M14 |
| Shaft thread pitch | 1.50 mm |
| Shaft thread type | Metric |
| Shaft type | Tapered 1:8 |
| Shaft type code | 83 |
| Unit | Each |
Compatible accessories
Parts and components that work with this product.
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 9580 g |
| Dimensions | 189 × 155 × 128 mm |
| Dangerous goods | No |
You might also like
Free shipping

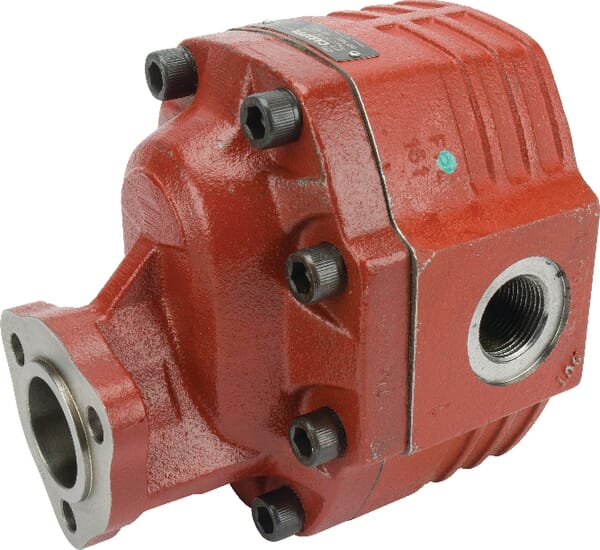

BPA000279369
Casappa Pump FP40.87D0-19T1-LGG/GF-N FP4087D
£935.94 excl.
£1,123.13 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000340092
Casappa Motor PLM20.11,2R0-12E2-LEA/EA-N-EL PLM2011R12E2
£295.01 excl.
£354.01 incl.
In stock
Expected to ship on Thursday 17 September
Free shipping

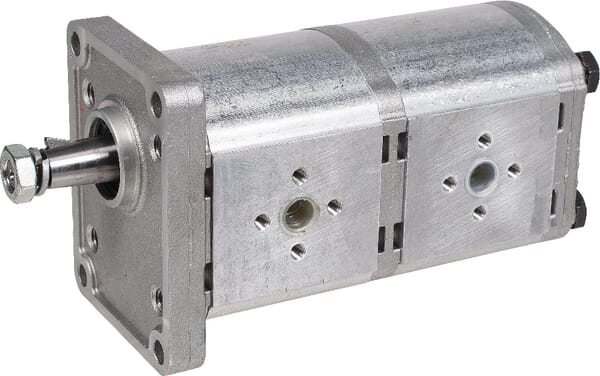

BPA000340342
