£275.27
excl. VAT
£330.32 incl. VAT
£330.32
incl. VAT
£275.27 excl. VAT
Free shipping
In stock
Expected to ship on Tuesday 22 September
Product details
| Displacement | 6.61 cm³/rev |
|---|---|
| Flange and back cover material | n/a |
| Flange code | - |
| Flange type norm | DII |
| Housing material | Aluminium |
| Max. continous working pressure | 250 BAR |
| Max intermittend working pressure | 280 BAR |
| Max pressure peak | 300 BAR |
| Max rotation speed | 4000 r/min |
| Min rotation speed | 600 r/min |
| Number of mounting holes | 4 |
| Port position | Side |
| Pressure port bolts circle diameter | 30 mm |
| Pump group code | 2 |
| Rotation direction | Clockwise (CW) |
| Sealing type | Standard |
| Shaft cone size code | n/a |
| Shaft thread diameter | n/a |
| Shaft thread type | n/a |
| Shaft type | Splined |
| Shaft type code | - |
| Suction port bolts circle diameter | 30 mm |
| Unit | Each |
Logistics
| EAN | 8719607007481 |
|---|---|
| Unit of measure | EA |
| Weight | 1275 g |
| Dimensions | 129 × 110 × 60 mm |
| Dangerous goods | No |
You might also like
Free shipping
BPA000340211

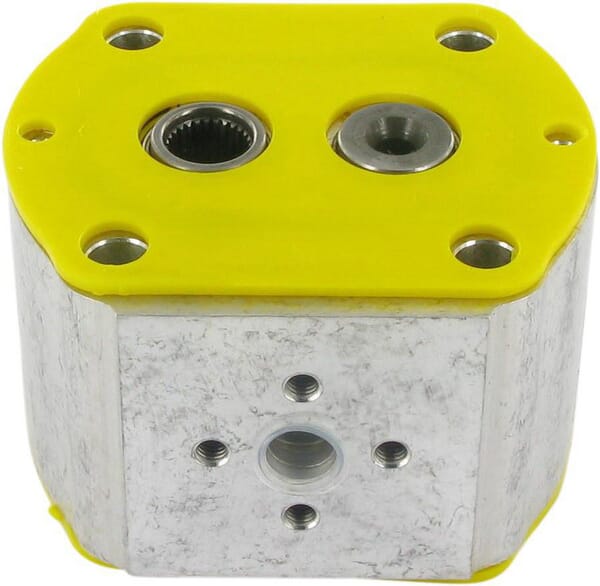

Casappa Tandem Pump PLP20.11,2D0-86-S6-LEA/EA-N-I-FS PLP20112DII
£219.66 excl.
£263.59 incl.
In stock
Expected to ship on Tuesday 22 September
Free shipping
BPA000301031
Casappa Gear motor KM30.38 R0 08E3-LGF/GF-N KM3038R8E3GF
£853.69 excl.
£1,024.43 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000340486

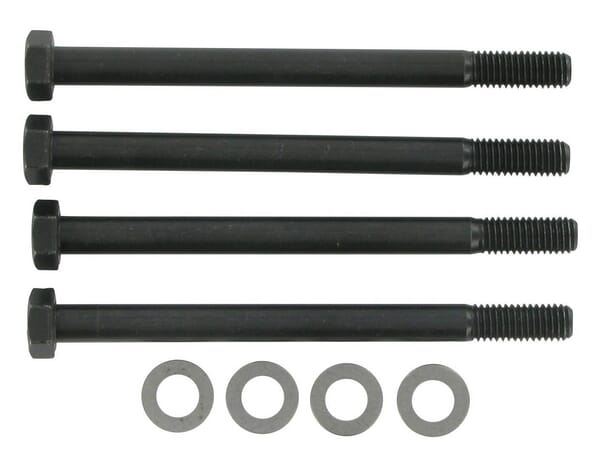

Casappa Bolt set M8X225(IV) PLP910M8225
£33.86 excl.
£40.63 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000340474

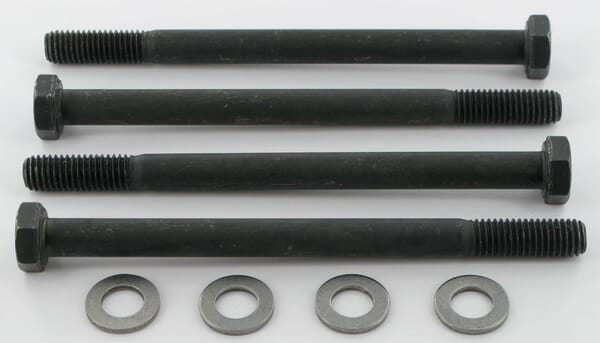

Casappa Tie bolts Polaris 10 M8x110 PLP910M8110
£34.00 excl.
£40.80 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000340218
Casappa Pump PLP 20.11-D0 54-B5 LBC/BE PLP2011D054B5
£304.84 excl.
£365.81 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000340264

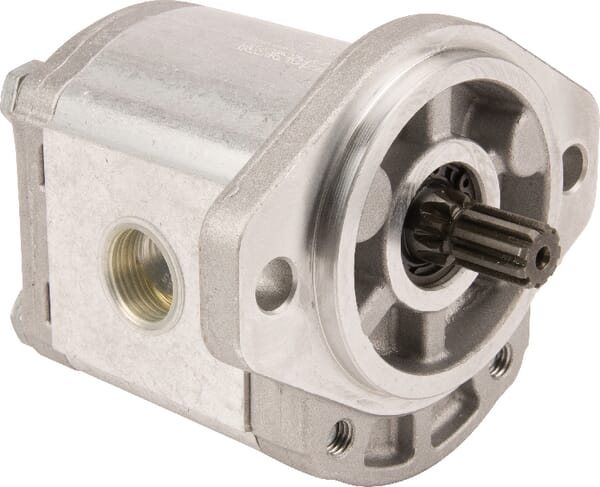

Casappa Pump PLP20.16D0-03S1-LGE/GD-N PLP2016D003S1
