£608.16
excl. VAT
£729.79 incl. VAT
£729.79
incl. VAT
£608.16 excl. VAT
Free shipping
In stock
Expected to ship on Tuesday 22 September
Product details
| Connection port to flange distance | 48.5 mm |
|---|---|
| Displacement | 51.83 cm³/rev |
| Flange and back cover material | Cast iron |
| Flange code | S5 |
| Flange type norm | SAE-B |
| Housing length | 125 mm |
| Housing material | Aluminium |
| Max. continous working pressure | 210 BAR |
| Max intermittend working pressure | 230 BAR |
| Max pressure peak | 240 BAR |
| Max rotation speed | 2500 r/min |
| Min rotation speed | 350 r/min |
| Mounting diameter | 101.6 mm |
| Mounting holes horizontal distance | 146 mm |
| Number of mounting holes | 2 |
| Port position | Side |
| Pressure port bolts circle diameter | 40 mm |
| Pump group code | 3 |
| Rotation direction | Counter-clockwise (CCW) |
| Sealing type | Standard |
| Shaft cone size code | n/a |

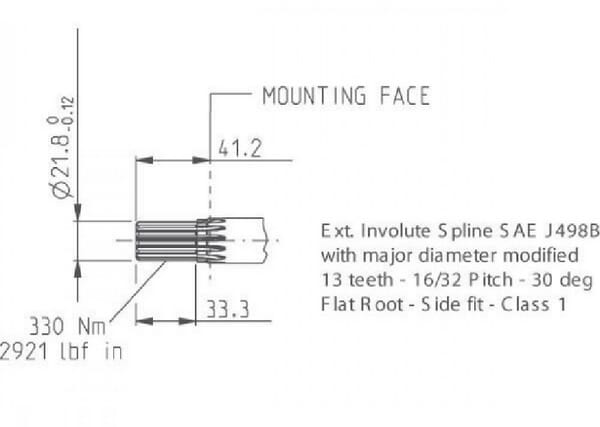

| Shaft diameter | 21.8 mm |
| Shaft number of teeth | 13 |
| Shaft type | Splined 13T |
| Shaft type code | 04 |
| Suction port bolts circle diameter | 51 mm |
| Unit | Each |
Compatible accessories
Parts and components that work with this product.
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 11800 g |
| Dimensions | 250 × 170 × 185 mm |
| Dangerous goods | No |
You might also like
Free shipping
BPA000340455
Casappa Pump PLP30.73D0-83E3-LEF/ED-N-FS PLP3073D083E3
£528.44 excl.
£634.13 incl.
In stock
Expected to ship on Tuesday 22 September
Free shipping
BPA000340236
Casappa Pump PLP20.14D0-03S1-LBE/BC-N-EL PLP2014D003S1LBEBC
£244.06 excl.
£292.87 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000340031

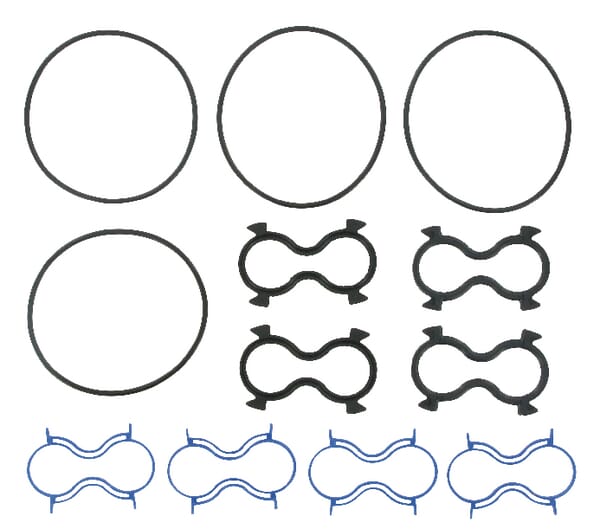

Casappa Seal kit PLD10.2 PLD9102AFD
