£643.39
excl. VAT
£772.07 incl. VAT
£772.07
incl. VAT
£643.39 excl. VAT
Free shipping
In stock
Expected to ship on Tuesday 22 September
Product details

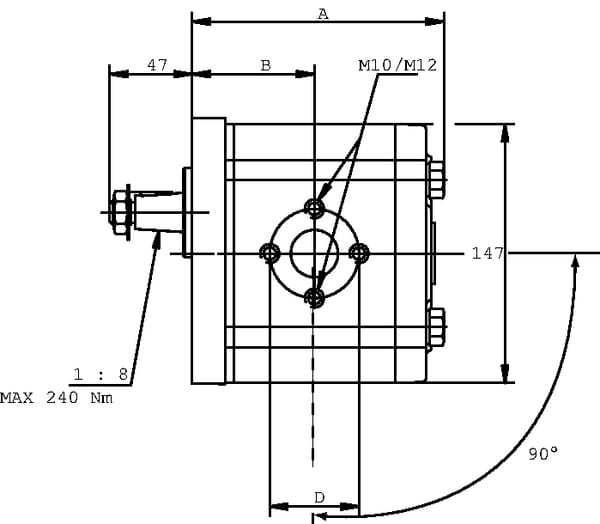

| AHousing length | 155 mm |
|---|---|
| Application range | Mobile applications, Industrial applications |
| BConnection port to flange distance | 75.5 mm |
| Benefits | Wide range of applications, Can be used in challenging environmental conditions |
| Details | Various connection options, Outer housing pivoted |

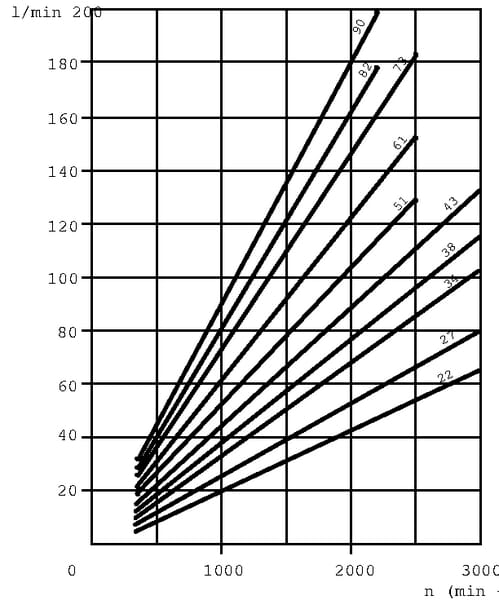

| Displacement | 61.26 cm³/rev |
| DSuction port bolts circle diameter | 51 mm |
| Flange and back cover material | Cast iron |
| Flange code | E3 |
| Flange type norm | European |
| Housing material | Aluminium |
| Max. continous working pressure | 190 BAR |
| Max intermittend working pressure | 210 BAR |
| Max pressure peak | 220 BAR |
| Max rotation speed | 2500 r/min |
| Min rotation speed | 350 r/min |

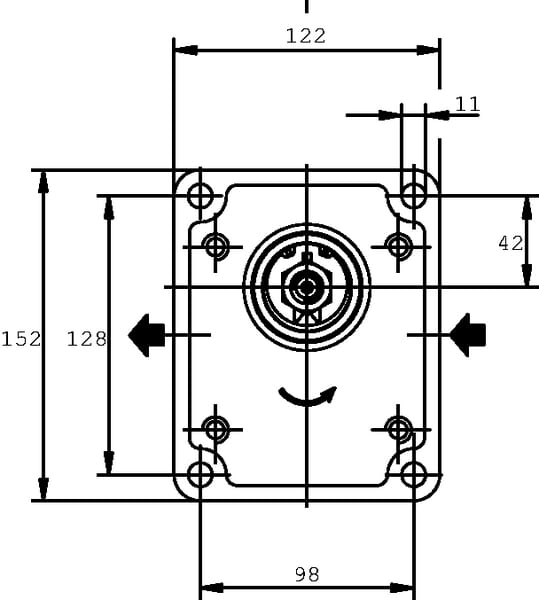

| Mounting diameter | 50.8 mm |
| Mounting holes horizontal distance | 95 mm |
| Mounting holes vertical distance | 128 mm |
| Number of mounting holes | 4 |
| Port position | Side |
| Pressure port bolts circle diameter | 40 mm |
| Properties | Consists of 3 parts, Electrohydraulic ventilator drive, Customer-specific design possible |
| Pump group code | 3 |
| Rotation direction | Counter-clockwise (CCW) |
| Sealing type | Standard |
| Shaft cone size code | 1:8 |
| Shaft diameter | 21.59 mm |
| Shaft thread diameter | M14 |
| Shaft thread pitch | 1.50 mm |
| Shaft thread type | Metric |
| Shaft type | Tapered 1:8 |
| Shaft type code | 83 |
| Unit | Each |
Logistics
| EAN | 8719607050548 |
|---|---|
| Unit of measure | EA |
| Weight | 10019 g |
| Dimensions | 200 × 154 × 123 mm |
| Dangerous goods | No |
You might also like
BPA000340667

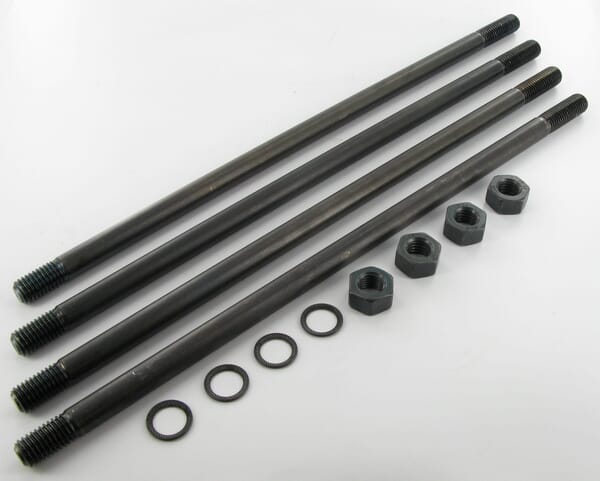

Casappa Tie bolts polaris 30 M12x340 PLP930M12320
£66.92 excl.
£80.30 incl.
In stock
Expected to ship on Tuesday 22 September
Free shipping
BPA000340302
Casappa Gearbox with pump group 2 20cc PLP2020GBF20235KIT
£560.32 excl.
£672.38 incl.
In stock
Expected to ship on Tuesday 22 September
Free shipping
BPA000340098
Casappa Motor PLM20.20D0-12B2-LBC/BE-N-EL PLM2020D012B2
£402.98 excl.
£483.58 incl.
In stock
Expected to ship on Tuesday 22 September
Free shipping
BPA000340334

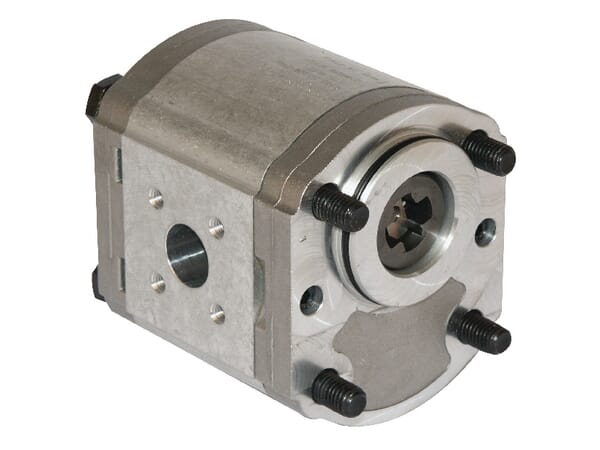

Casappa Pump PLP20.25S0-95B6-LBE/BC-N-EL PLP2025S095B6
£363.09 excl.
£435.71 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000340504

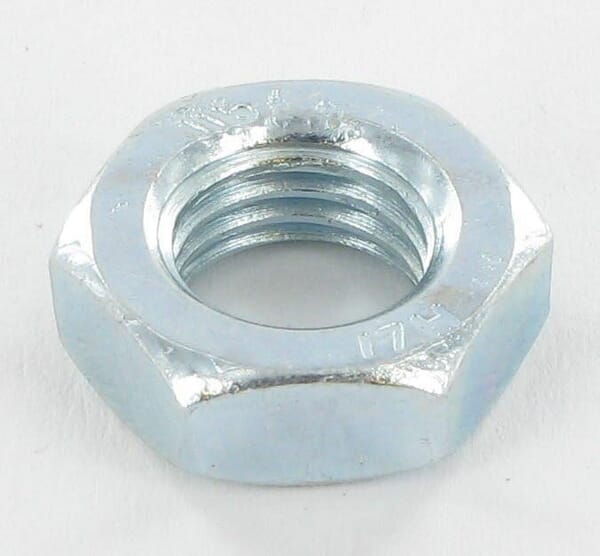

Casappa Nut M12 PLP/PLM 20 PLP92015
£0.47 excl.
£0.56 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000279386

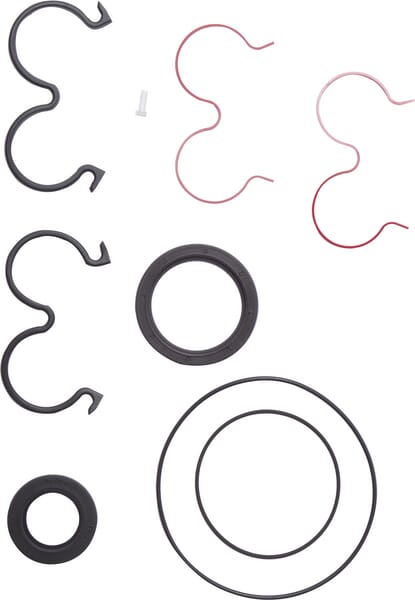

Casappa Seal kit FP30-16Z0 S/D-(2) FP93016ZOSD2AFD
