£208.17
excl. VAT
£249.80 incl. VAT
£249.80
incl. VAT
£208.17 excl. VAT
Free shipping
In stock
Expected to ship on Thursday 17 September
Product details
| Displacement | 3.34 cm³/rev |
|---|---|
| Flange and back cover material | n/a |
| Flange code | - |
| Flange type norm | DII |
| Housing material | Aluminium |
| Max. continous working pressure | 260 BAR |
| Max intermittend working pressure | 280 BAR |
| Max pressure peak | 290 BAR |
| Max rotation speed | 4000 r/min |
| Min rotation speed | 650 r/min |
| Number of mounting holes | 4 |
| Port position | Side |
| Pressure port bolts circle diameter | 30 mm |
| Pump group code | 1 |
| Rotation direction | Clockwise (CW) |
| Sealing type | Standard |
| Shaft cone size code | n/a |
| Shaft thread diameter | n/a |
| Shaft thread type | n/a |
| Shaft type | Splined |
| Shaft type code | - |
| Suction port bolts circle diameter | 30 mm |
| Unit | Each |
Logistics
| EAN | 8719607004473 |
|---|---|
| Unit of measure | EA |
| Weight | 517 g |
| Dimensions | 160 × 130 × 50 mm |
| Dangerous goods | No |
You might also like
BPA000301296
Casappa Seal kit KAPPA 30-83E3 KP93083E3
£23.75 excl.
£28.50 incl.
In stock
Expected to ship on Thursday 17 September
BPA000340073

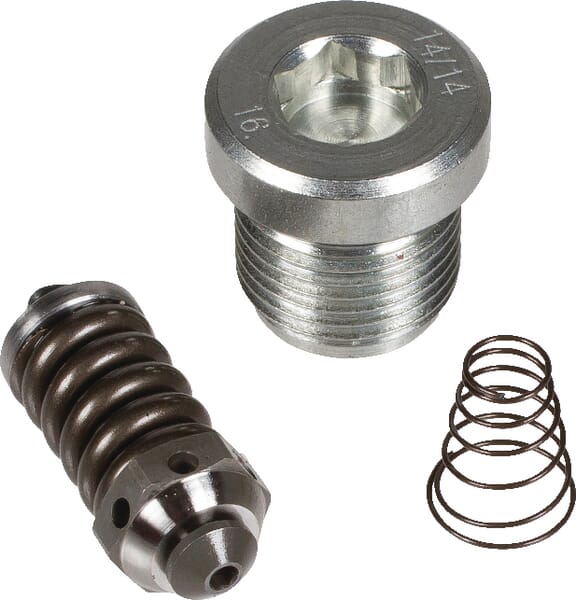

Casappa Cartridge PLC051-250 PLD10/20 PLD920VPE250
£75.06 excl.
£90.07 incl.
In stock
Expected to ship on Thursday 17 September
Free shipping
BPA000340024

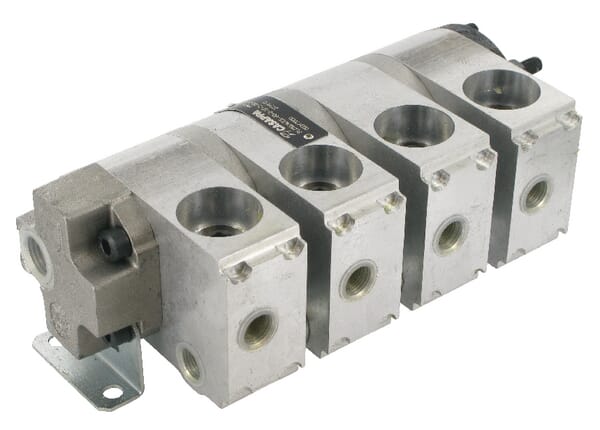

Casappa Distribution Motor PLD10CS-GS/10.4X4 PLD1044VPE
£1,739.24 excl.
£2,087.09 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000285992

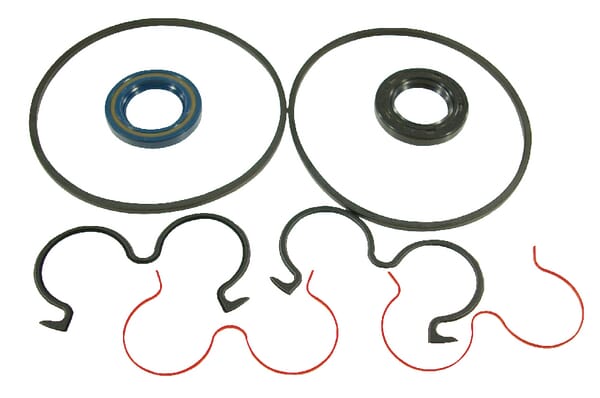

Casappa Gasket set HDP 35-R-vers. 0-1 HDP935R01
£46.50 excl.
£55.80 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000340346
Casappa Pump PLP20.4D0-54B4-LBE/BC-N-EL FS PLP204D054B4
£322.07 excl.
£386.48 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000340542

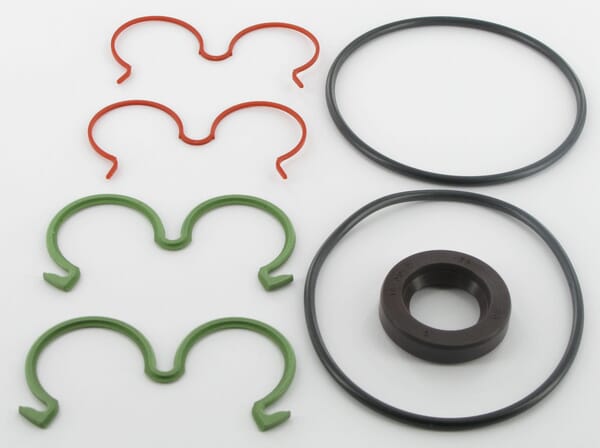

Casappa Seal kit POLARIS 20-82E2 PLP92082E2V
