£322.07
excl. VAT
£386.48 incl. VAT
£386.48
incl. VAT
£322.07 excl. VAT
Free shipping
Out of stock — Backorder available
Usually ships within 3–8 weeks.

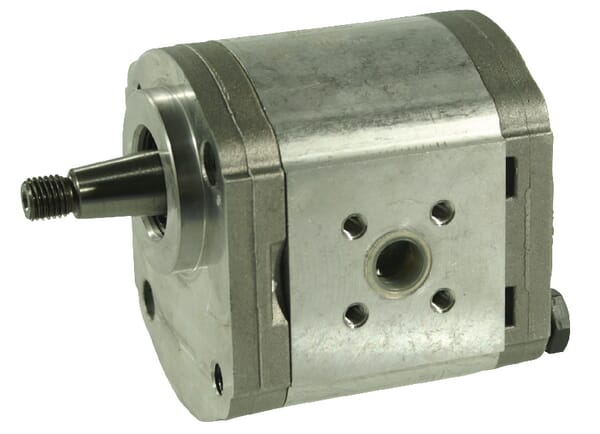

Product details
| Application range | Mobile applications, Industrial applications |
|---|---|

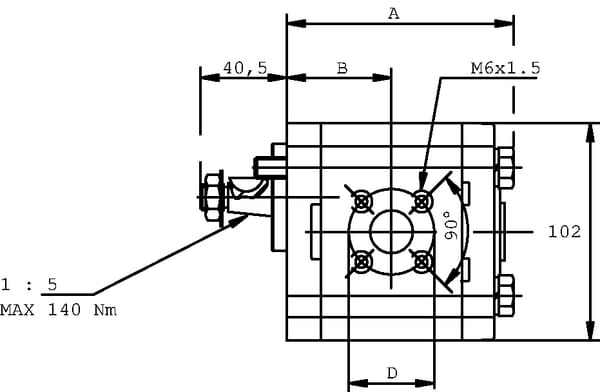

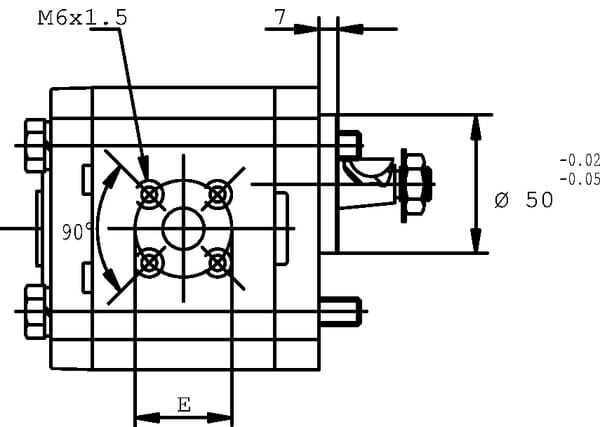

| BConnection port to flange distance | 41.7 mm |
| Benefits | Wide range of applications, Can be used in challenging environmental conditions |
| Details | Various connection options, Outer housing pivoted |
| Displacement | 4.95 cm³/rev |
| DSuction port bolts circle diameter | 40 mm |
| Flange and back cover material | Aluminium |
| Flange code | B4 |
| Flange type norm | German |
| Housing length | 91 mm |
| Housing material | Aluminium |
| Max. continous working pressure | 250 BAR |
| Max intermittend working pressure | 280 BAR |
| Max pressure peak | 300 BAR |
| Max rotation speed | 4000 r/min |
| Min rotation speed | 600 r/min |
| Mounting diameter | 50 mm |

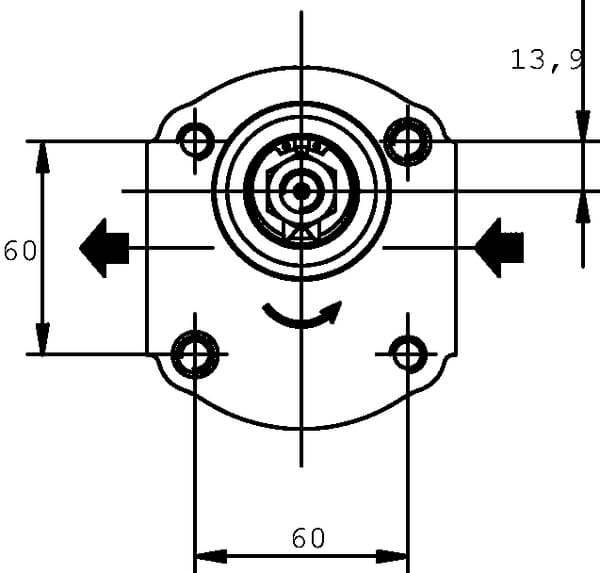

| Mounting holes horizontal distance | 60 mm |
| Mounting holes vertical distance | 60 mm |
| Number of mounting holes | 2 |
| Port position | Side |
| Pressure port bolts circle diameter | 35 mm |
| Properties | Consists of 3 parts, Customer-specific design possible |
| Pump group code | 2 |
| Rotation direction | Clockwise (CW) |
| Sealing type | Standard |
| Shaft cone size code | 1:5 |
| Shaft diameter | 17 mm |
| Shaft thread diameter | M12 |
| Shaft thread pitch | 1.50 mm |
| Shaft thread type | Metric |
| Shaft type | Tapered 1:5 |
| Shaft type code | 54 |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 2132 g |
| Dimensions | 134 × 117 × 134 mm |
| Dangerous goods | No |
You might also like
Free shipping

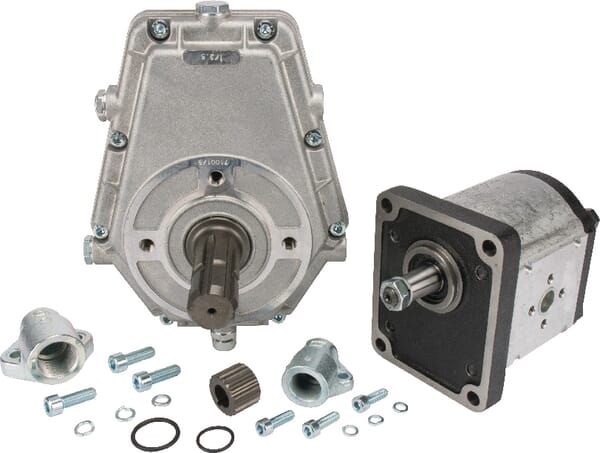

BPA000340435
Casappa Gearbox with pump group 3 43cc PLP3043GBF30135KIT
£911.90 excl.
£1,094.28 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping

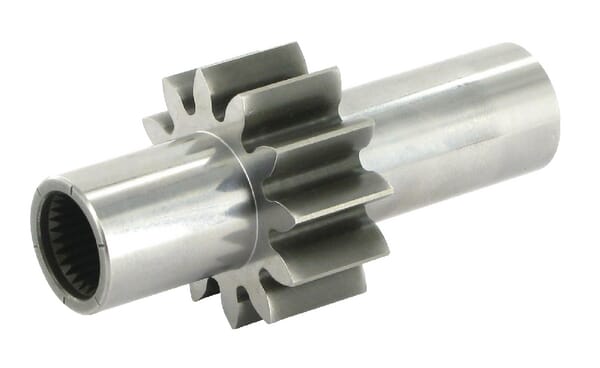

BPA000340552
Casappa Shaft PLP20.11,2/III/FS-L PLP920AS11
£129.83 excl.
£155.80 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping

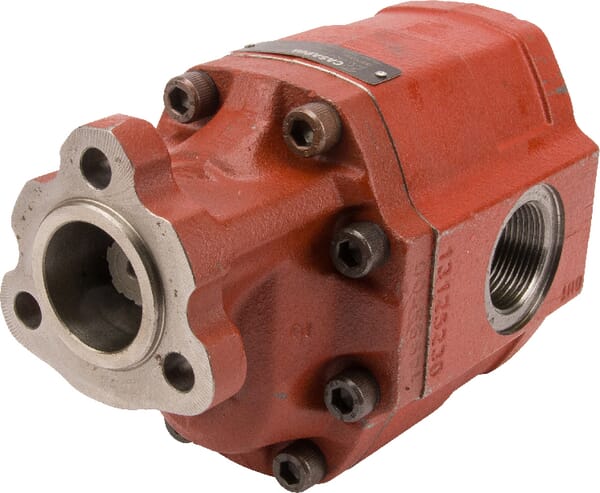

BPA000279315
Casappa Pump FP30.125D0-19T1 LGG/GG-N FP30125D
£961.61 excl.
£1,153.93 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping

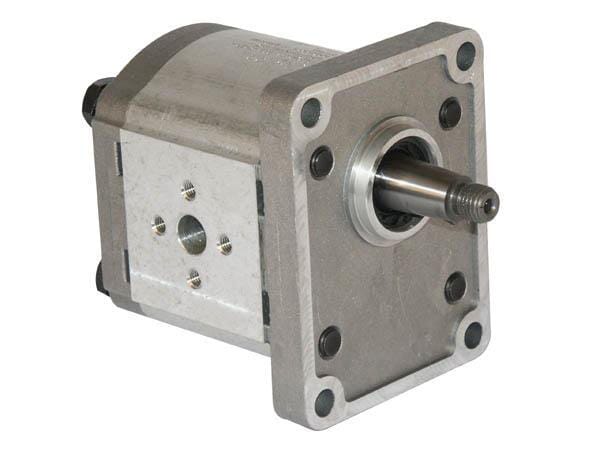

BPA000340259
Casappa Pump PLP20.14S0-82E2-LEB/EA-N- PLP2014S082E2
£351.08 excl.
£421.30 incl.
In stock
Expected to ship on Thursday 17 September
Free shipping

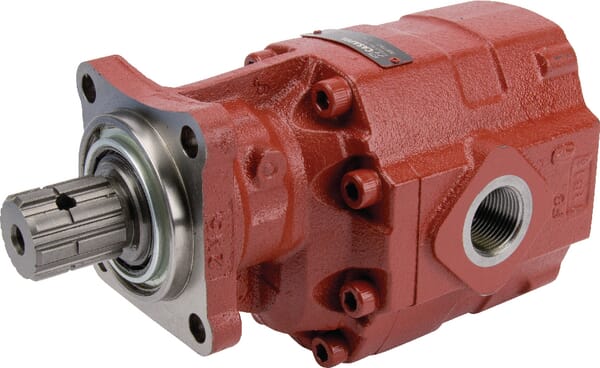

BPA000279330
Casappa Pump FP30.51B0-16Z0-LGF/GF-x FP3051B116Z0
£1,304.94 excl.
£1,565.93 incl.
In stock
Expected to ship on Friday 18 September
Free shipping

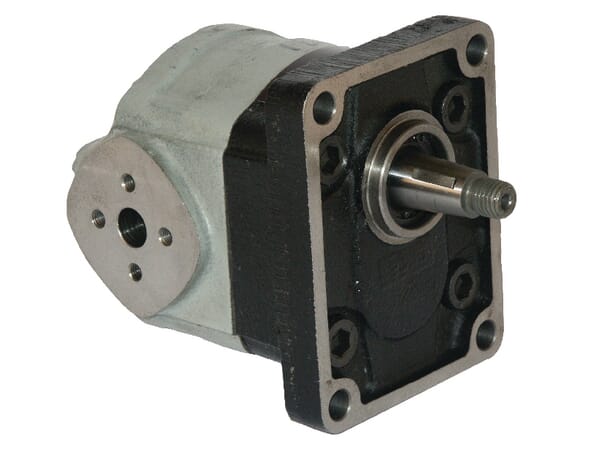

BPA000301010
Casappa Motor KM 20.16 RO-82E2-LEB/EA KM2016R82E2
£564.79 excl.
£677.75 incl.
Backorder available
Usually ships within 3–8 weeks
Recently viewed

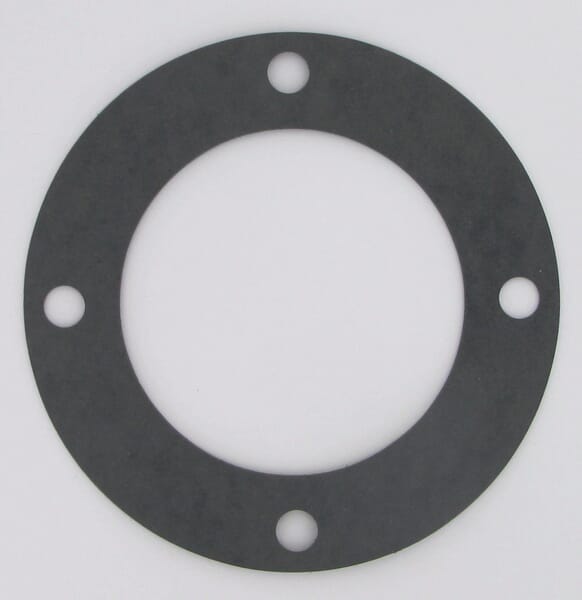

BPA000184571
