£225.84
excl. VAT
£271.01 incl. VAT
£271.01
incl. VAT
£225.84 excl. VAT
Free shipping
In stock
Expected to ship on Thursday 17 September
Product details
| Displacement | 4.27 cm³/rev |
|---|---|
| Flange and back cover material | n/a |
| Flange code | - |
| Flange type norm | DII |
| Housing material | Aluminium |
| Max. continous working pressure | 250 BAR |
| Max intermittend working pressure | 270 BAR |
| Max pressure peak | 280 BAR |
| Max rotation speed | 4000 r/min |
| Min rotation speed | 650 r/min |
| Number of mounting holes | 4 |
| Port position | Side |
| Pressure port bolts circle diameter | 30 mm |
| Pump group code | 1 |
| Rotation direction | Clockwise (CW) |
| Sealing type | Standard |
| Shaft cone size code | n/a |
| Shaft thread diameter | n/a |
| Shaft thread type | n/a |
| Shaft type | Splined |
| Shaft type code | - |
| Suction port bolts circle diameter | 30 mm |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 599 g |
| Dimensions | 96 × 93 × 53 mm |
| Dangerous goods | No |
You might also like
BPA000340471
Casappa Front cover pl. 10-E1/AL C PLP910E1ALC
£28.37 excl.
£34.04 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000340314

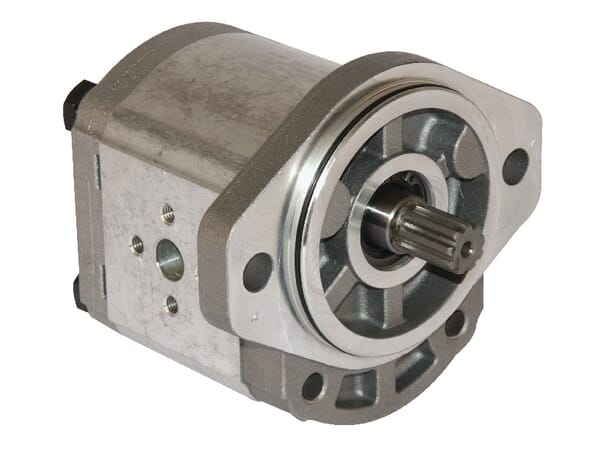

Casappa Pump PLP20.25D0-03S2-LEB/EA-N-EL FS PLP2025D003S2
£311.18 excl.
£373.42 incl.
In stock
Expected to ship on Thursday 17 September
BPA000340630

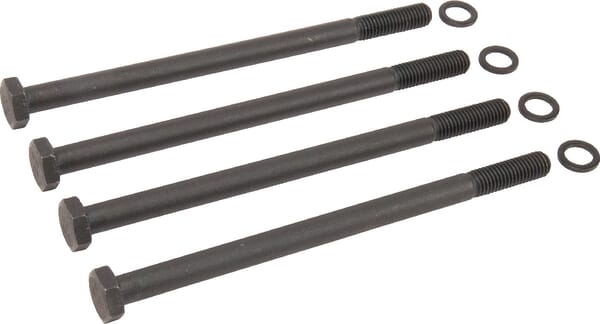

Casappa Bolt set M10X340 PLP920M10340
£47.88 excl.
£57.46 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000301276

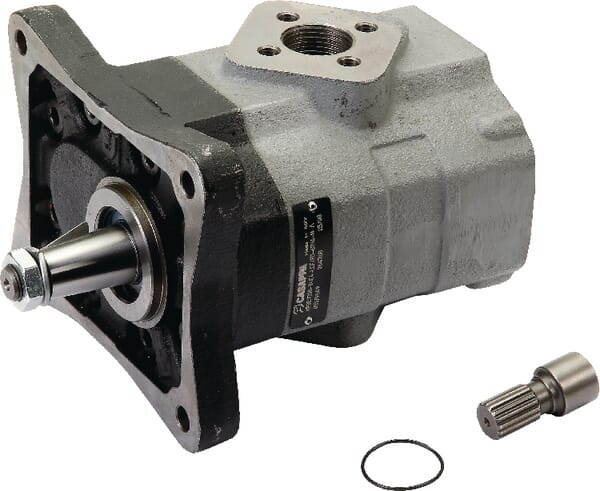

Casappa Gear Pump KP3073S084E4PLP20
£1,141.74 excl.
£1,370.09 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000340478

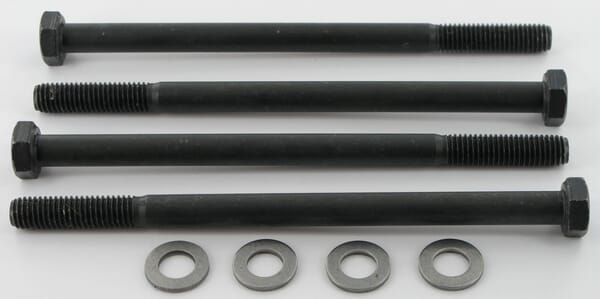

Casappa Tie bolts Polaris 10 M8x130 PLP910M8130
£31.61 excl.
£37.93 incl.
In stock
Expected to ship on Thursday 17 September
Free shipping
BPA000340390

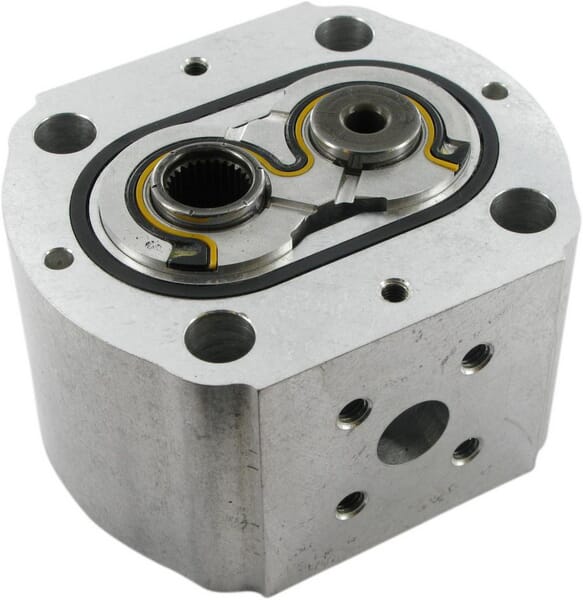

Casappa Tandem Pump PLP20.8-D0-86-S6-LBE/BC-N-I-FS PLP208DIIB
