£952.10
excl. VAT
£1,142.52 incl. VAT
£1,142.52
incl. VAT
£952.10 excl. VAT
Free shipping
Out of stock — Backorder available
Usually ships within 3–8 weeks.
Product details
| Benefits | Wide range of applications, Compact design |
|---|---|
| Connection port to flange distance | 63 mm |
| Details | High performance even at low speeds, Can be mounted directly on the PTO shaft |
| Displacement | 34.56 cm³/rev |
| Flange and back cover material | Cast iron |
| Flange code | T1 |
| Flange type norm | Italian |
| Housing length | 122.5 mm |
| Housing material | Cast iron |
| Max. continous working pressure | 235 BAR |
| Max rotation speed | 2800 r/min |
| Mounting diameter | 52 mm |
| Mounting holes horizontal distance | 73 mm |
| Mounting holes vertical distance | 73 mm |
| Number of mounting holes | 3 |
| Port position | Side |
| Pressure port thread type | BSP |
| Properties | Different connection positions, Low noise emission, Customer-specific design possible |
| Pump group code | 3 |
| Rotation direction | Bi-directional |
| Sealing type | Standard |
| Shaft cone size code | n/a |
| Shaft diameter | 25 mm |
| Shaft number of teeth | 6 |
| Shaft type | Splined 6T |
| Shaft type code | 19 |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 13584 g |
| Dimensions | 187 × 152 × 149 mm |
| Dangerous goods | No |
You might also like
Free shipping
BPA000340171

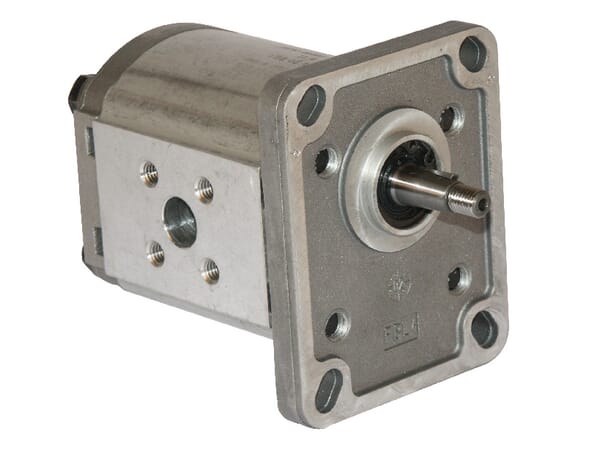

Casappa Pump PLP10.10 D0-81E1-LBB/BA-N PLP1010D081E1
£226.59 excl.
£271.91 incl.
In stock
Expected to ship on Monday 21 September
Free shipping
BPA000340057

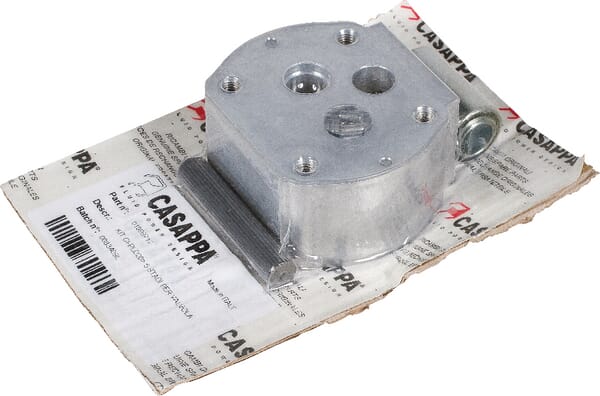

Casappa Intake mid Section for VPE PLD920CI
£143.48 excl.
£172.18 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000340548

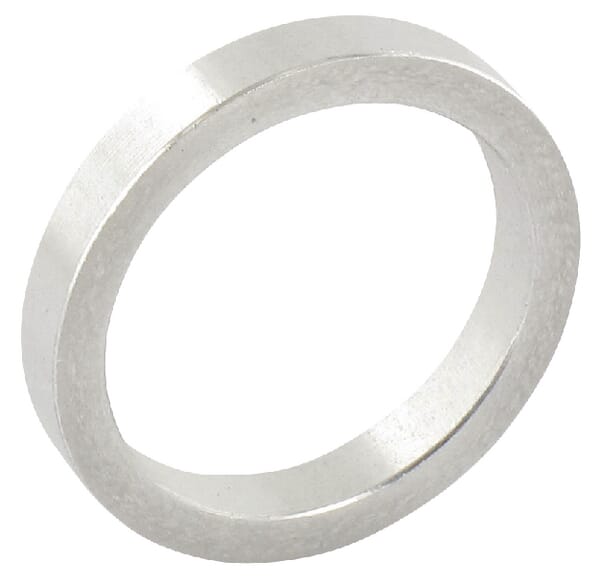

Casappa Back-up washer BA 22x32x7 PLP92095
£10.75 excl.
£12.90 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000340148

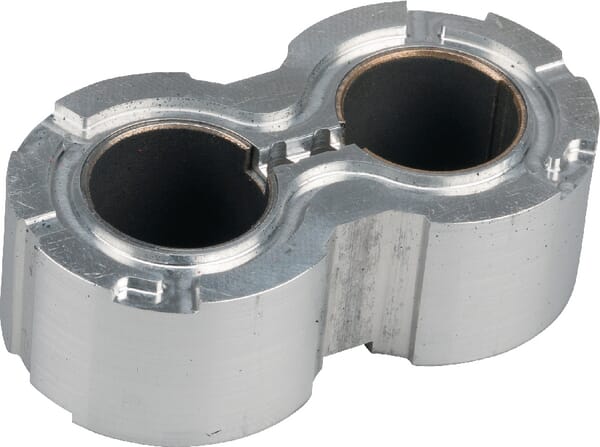

Casappa Thrust plate PLM20 PLM920RDH
£28.87 excl.
£34.64 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000340240

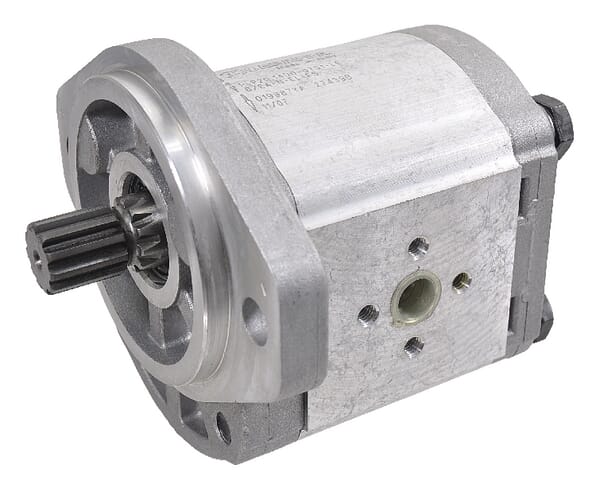

Casappa Gear pump, ELLEB/EA-N-EL-FS PLP2014D007S1
£308.16 excl.
£369.79 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000301003

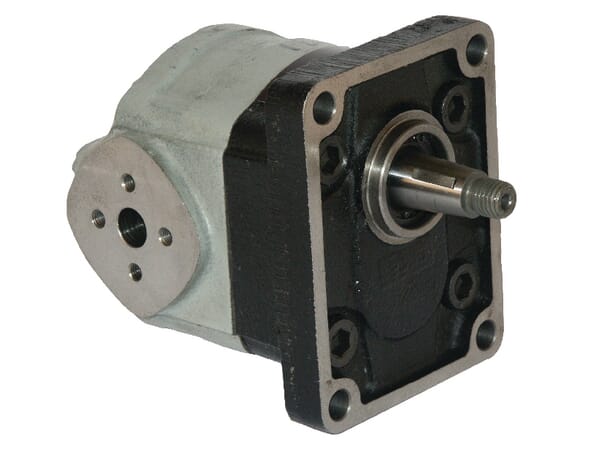

Casappa Motor KM20.8B0-82E2-LEA/EA-N KM2008B082E2
