£1,378.65
excl. VAT
£1,654.38 incl. VAT
£1,654.38
incl. VAT
£1,378.65 excl. VAT
Free shipping
Out of stock — Backorder available
Usually ships within 3–8 weeks.
Product details

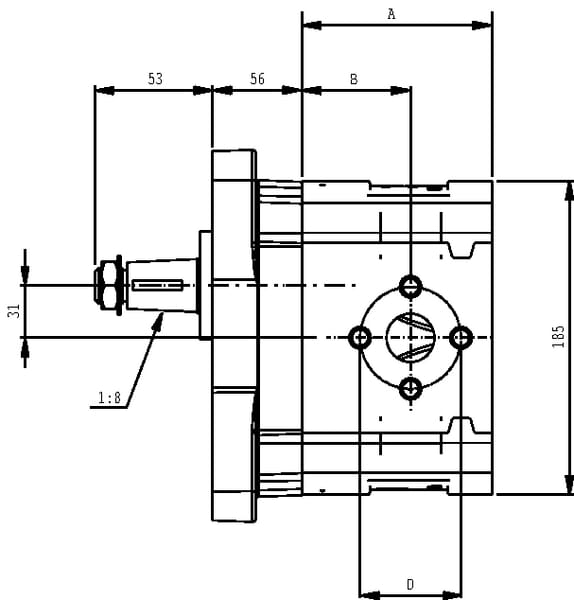

| AHousing length | 187 mm |
|---|---|
| Application range | Mobile applications, Industrial applications |
| BConnection port to flange distance | 128 mm |
| Benefits | Wide range of applications, Can be used in challenging environmental conditions |
| Details | Various connection options, Outer housing pivoted |
| Displacement | 134.03 cm³/rev |
| DSuction port bolts circle diameter | 72 mm |

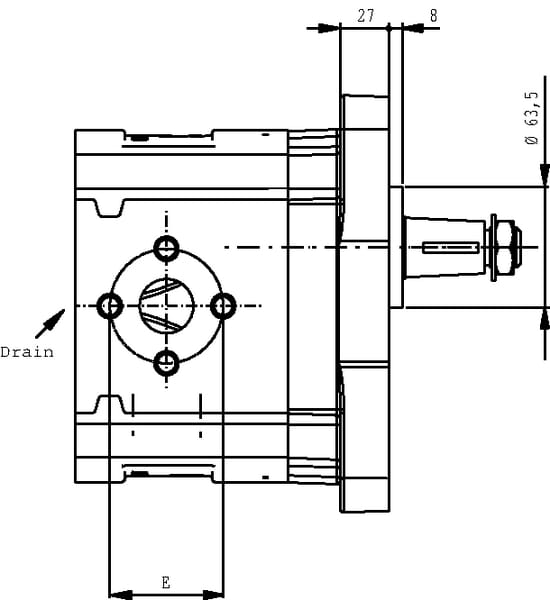

| EPressure port bolts circle diameter | 62 mm |
| Flange and back cover material | Cast iron |
| Flange code | E5 |
| Flange type norm | European |
| Housing material | Steel |
| Max. continous working pressure | 200 BAR |
| Max intermittend working pressure | 220 BAR |
| Max pressure peak | 240 BAR |
| Max rotation speed | 2500 r/min |
| Min rotation speed | 300 r/min |
| Mounting diameter | 63.5 mm |

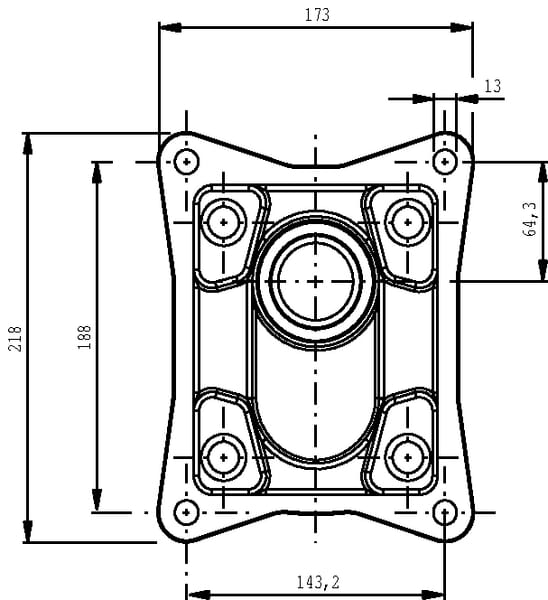

| Mounting holes horizontal distance | 143.2 mm |
| Mounting holes vertical distance | 188 mm |
| Number of mounting holes | 4 |
| Port position | Side |
| Properties | Consists of 3 parts, Customer-specific design possible |
| Pump group code | 4 |
| Rotation direction | Counter-clockwise (CCW) |
| Sealing type | Standard |
| Shaft cone size code | 1:8 |
| Shaft diameter | 32.55 mm |
| Shaft thread diameter | M22 |
| Shaft thread pitch | 1.50 mm |
| Shaft thread type | Metric |
| Shaft type | Tapered 1:8 |
| Shaft type code | 85 |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 34300 g |
| Dimensions | 260 × 220 × 180 mm |
| Dangerous goods | No |
You might also like
BPA000340597
Casappa Tie bolts Polaris 20 M10x145 PLP920M10145
£17.41 excl.
£20.89 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000340644

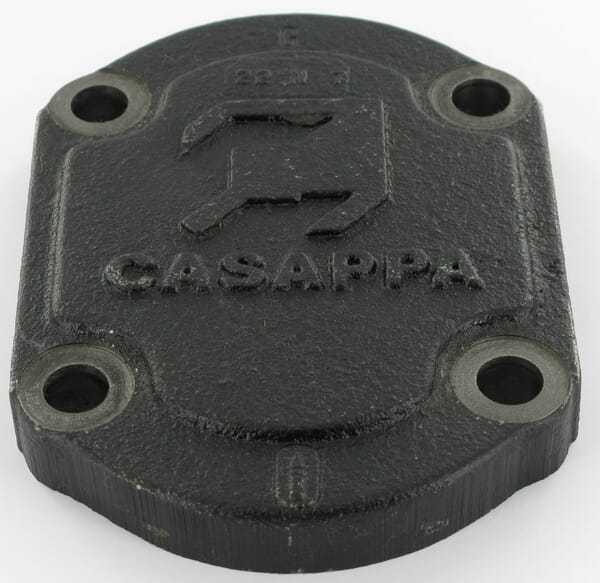

Casappa Rear cap PLP 30 PLP93035
£66.35 excl.
£79.62 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000340630
Casappa Bolt set M10X340 PLP920M10340
£47.88 excl.
£57.46 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000340495

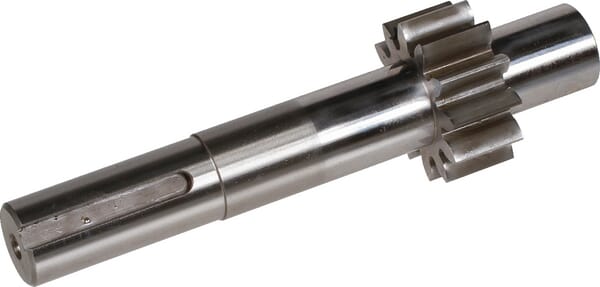

Casappa Drive shaft 11 cc 49/FS PLP92011249FS
£162.14 excl.
£194.57 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000340386

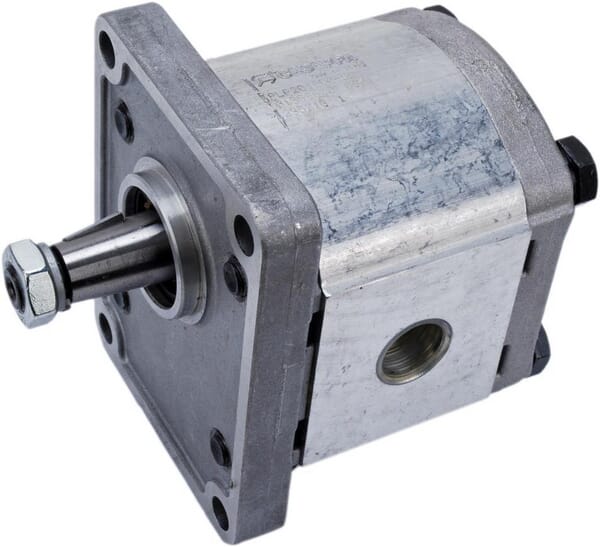

Casappa Pump PLP20.8 D0-82E2-LGD/GD-N- PLP208D082E2G
£275.79 excl.
£330.95 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000340068

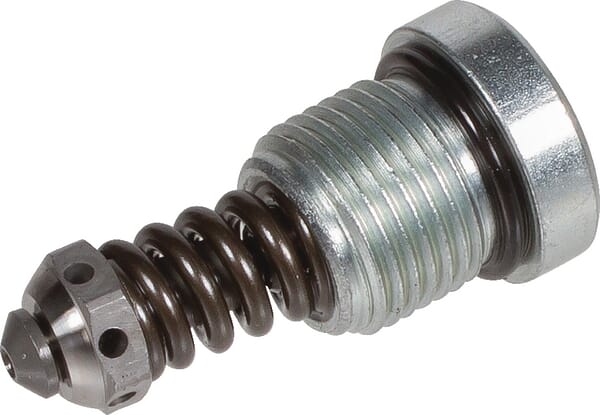

Casappa Cartridge PLC051-125Bar PLD10/ PLD920VPE125
