£630.79
excl. VAT
£756.95 incl. VAT
£756.95
incl. VAT
£630.79 excl. VAT
Free shipping
In stock
Expected to ship on Tuesday 22 September
Product details
| Displacement | 73.82 cm³/rev |
|---|---|
| Flange and back cover material | n/a |
| Flange code | - |
| Flange type norm | DII |
| Housing material | Aluminium |
| Max. continous working pressure | 170 BAR |
| Max intermittend working pressure | 190 BAR |
| Max pressure peak | 200 BAR |
| Max rotation speed | 2500 r/min |
| Min rotation speed | 350 r/min |
| Number of mounting holes | 4 |
| Port position | Side |
| Pressure port bolts circle diameter | 62 mm |
| Pump group code | 3 |
| Rotation direction | Clockwise (CW) |
| Sealing type | Standard |
| Shaft cone size code | n/a |
| Shaft thread diameter | n/a |
| Shaft thread type | n/a |
| Shaft type | Splined |
| Shaft type code | - |
| Suction port bolts circle diameter | 51 mm |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 5341 g |
| Dimensions | 146 × 149 × 124 mm |
| Dangerous goods | No |
You might also like
Free shipping
BPA000340451

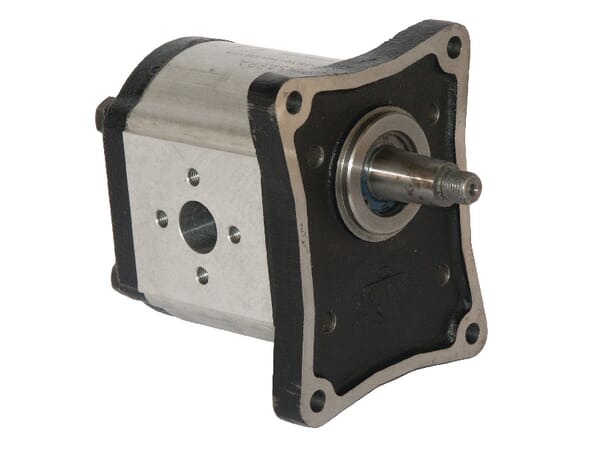

Casappa Pump PLP30.61D0-84E4-LEF/ED-N PLP3061D084E4
£701.93 excl.
£842.32 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000286819
Casappa Support ring GR. 3 motor GR3911
£6.76 excl.
£8.11 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000301300
Casappa Woodruff key KP/KM 30 KP94025
£6.04 excl.
£7.25 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000340655
Casappa Bolt set M12X145 PLP930M12145
£13.66 excl.
£16.39 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000340642
Casappa Woodruff Key PLP/PLM 30 PLP93025
£2.39 excl.
£2.87 incl.
In stock
Expected to ship on Tuesday 22 September
Free shipping
BPA000279358

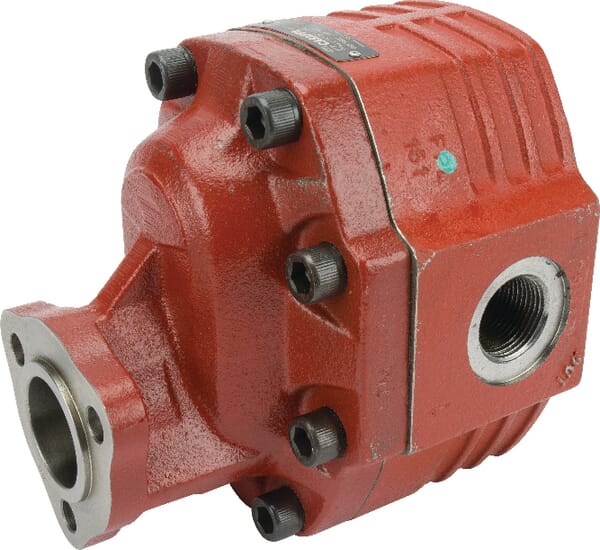

Casappa Formula 40 gear pump FP40133S
£930.38 excl.
£1,116.46 incl.
In stock
Expected to ship on Tuesday 22 September
Recently viewed
BPA000196000

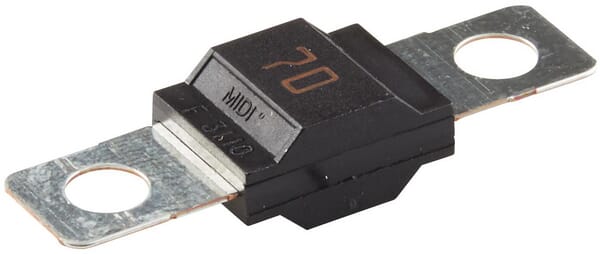

Hella Fuse Midi 32V 70A Length 41.1mm brown Pack 1x 8JS742901031
£5.96 excl.
£7.15 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000195520
Honda Oil seal 28x41.25x6 91202ZM0V31
£7.58 excl.
£9.10 incl.
In stock
Expected to ship on Tuesday 22 September
Free shipping
BPA000300661

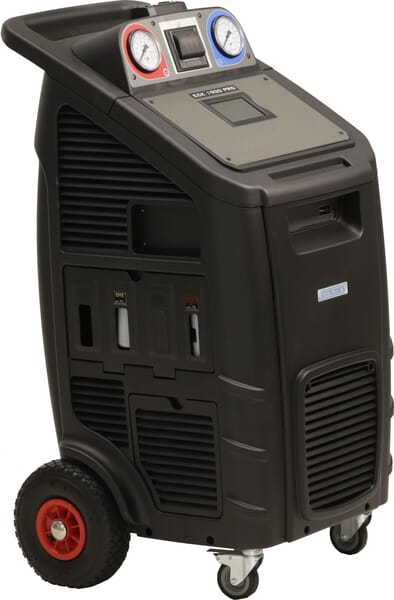

Kramp Air conditioning service station ECK1900PRO (to be used with refrigerant kits) KL093860
