About this product

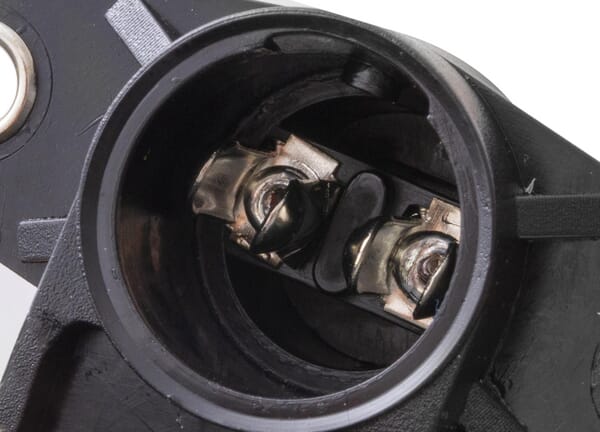

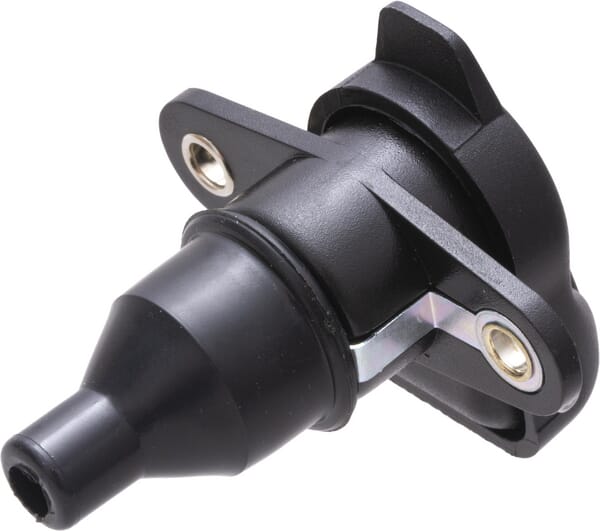

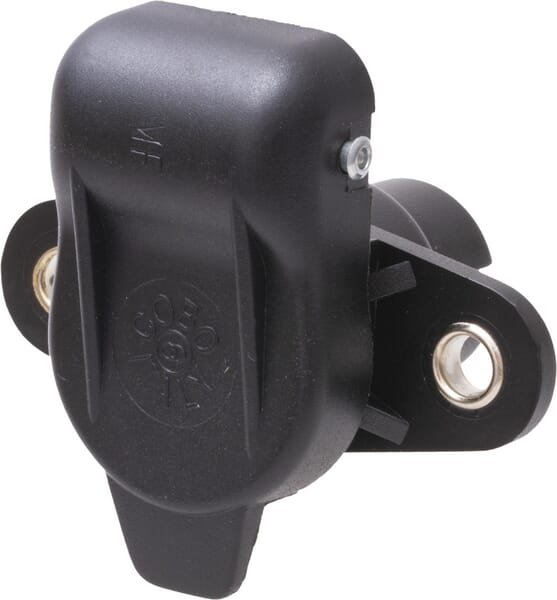

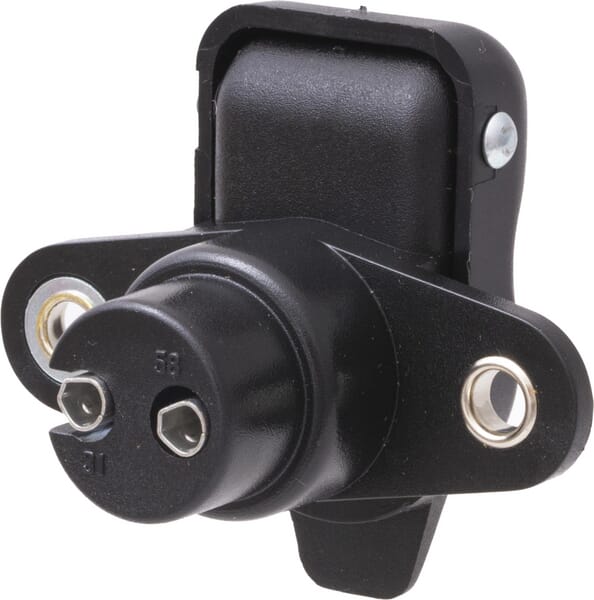

A 2-pole electrical socket for power applications, replacing Cobo original part 25-001-100-01. It operates at 12–24 V DC with a 5 A operating current.

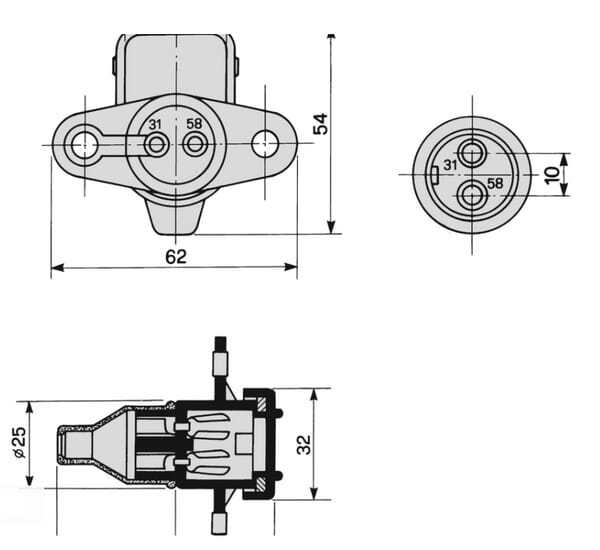

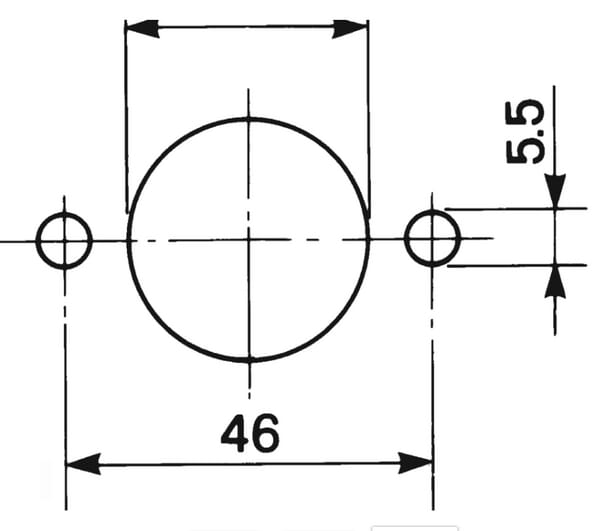

It has a black plastic housing with a straight female round connector sleeve. Requires a 25 mm diameter installation hole and mounts via two 5.5 mm fixing holes with 46 mm centre distance.
Product details
| Cable position type - connection no 1 | Straight |
|---|---|
| Connection 1, type - male/female | Female |
| Details | Housing made from black plastic |
| Electric application category | Power |
| Nominal voltage | 24 V |
| Nominal voltage range | 12-24 V |
| Number of poles | 2 |
| Operating current | 5 A |
| Original number equivalent | 25-001-100-01 |
| Properties | 2 holes, 5.5mm, for fixing screws, Distance between hole centres: 46mm, Installation dimensions: Ø 25mm |
| SAP code | 1028051 |
| Type | Round connector sleeve |
| Unit | Each |
Compatible accessories
Parts and components that work with this product.
Logistics
| EAN | 8716106783885 |
|---|---|
| Unit of measure | EA |
| Weight | 31 g |
| Dimensions | 71 × 64 × 58 mm |
| Dangerous goods | No |
You might also like
BPA000012357
Cobo Rear light LH rectangular, red/amber, bolt on, 185x85mm AMP plug, 02486000
£43.92 excl.
£52.70 incl.
In stock
Expected to ship on Monday 5 October
BPA000015308

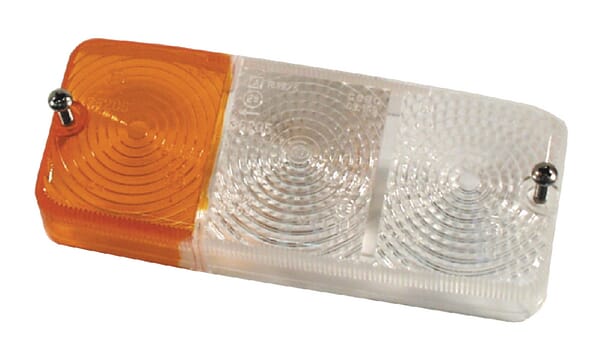

Cobo Light lens, transparent/amber front/LH/RH 03169200
