About this product

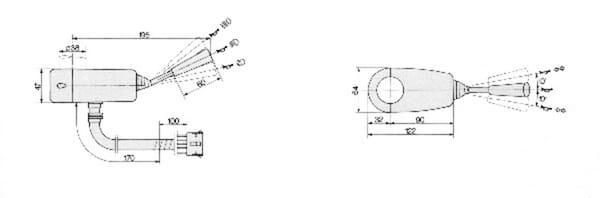

A Cobo combination switch designed to fit a 38 mm diameter steering column, suitable for 12 V and 24 V electrical systems. Replaces part number 01-268-000-01.
It controls the horn, side lights, dipped and main beam, main beam flash, indicators, ignition switch, and 3-speed windscreen wipers and washers. Rated current is 7 A.
Product details
| Application range | To fit a 38mm Ø steering column. |
|---|---|
| Details | Combination switch for attachment, Functions 01215500 - Horn, side lights, dipped/main beam, main beam flash and indicators, Functions 01215600 - Ignition switch, 3 speed windscreen wipers and washers, Can be used with 12V and 24V |
| Function | High beam, Low beam light, Horn, Direction indicator |
| Original number equivalent | 01-268-000-01 |
| Rated current | 7 A |
| SAP code | 1007253 |
| Supply voltage range of the bulb | 12-24 V |
| Unit | Each |
Logistics
| EAN | 8716106717194 |
|---|---|
| Unit of measure | EA |
| Weight | 510 g |
| Dimensions | 235 × 140 × 65 mm |
| Dangerous goods | No |
You might also like
BPA000015207
Cobo Direction and position light Halogen, front, rectangular, 12V, amber/transparent, bolt on, 80x120mm, 03104000
£20.67 excl.
£24.80 incl.
In stock
Expected to ship on Monday 5 October
BPA000024263
Cobo Fuel sender unit 1029628
£64.35 excl.
£77.22 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000012237
Cobo Rear light RH rectangular, red/amber, bolt on, 160x67mm, 4-pin, 02397000
£36.67 excl.
£44.00 incl.
In stock
Expected to ship on Monday 5 October
Free shipping
BPA000009431
Cobo Combination switch 01211000
£279.26 excl.
£335.11 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000021141
Cobo Warning light square, 12/24V, red, bolt on, 22.5x22.5xCobo 09472000
£8.15 excl.
£9.78 incl.
In stock
Expected to ship on Monday 5 October
BPA000061796

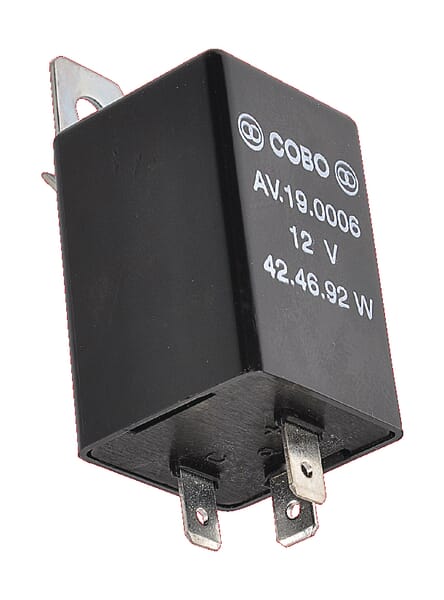

Cobo Flasher relay 12V 190006
