£301.20
excl. VAT
£361.44 incl. VAT
£361.44
incl. VAT
£301.20 excl. VAT
Free shipping
Out of stock — Backorder available
Usually ships within 3–8 weeks.
Product details

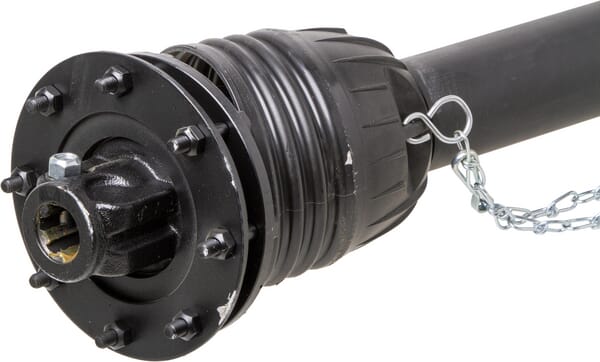

| Attachment machine side | Friction clutch |
|---|---|

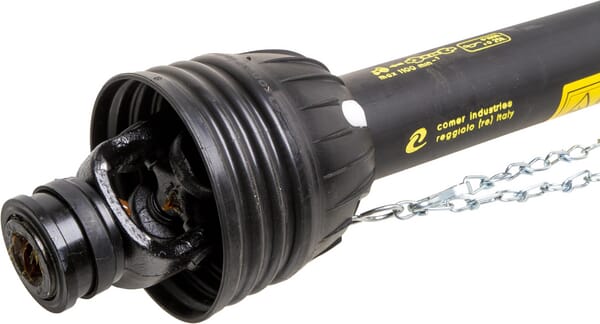

| Attachment tractor side | Quick disconnect yoke |
| Clutch type code | T16 |
| Connection outside diameter machine side inch and splines | 1.3/8-6 |
| Connection outside diameter tractor side inch and splines | 1.3/8-6 |
| Cross joint bush diameter by machine side | 27 mm |
| Cross joint bush diameter by tractor side | 27 mm |
| Cross joint length by machine side | 74.6 mm |
| Cross joint length by tractor side | 74.6 mm |
| Inner tube large outside diameter | 36 mm |
| Inner tube wall thickness | 4.5 mm |

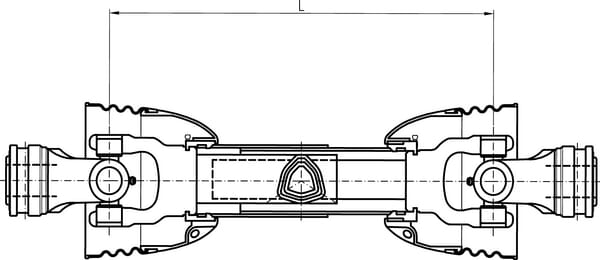

| LLength | 1110 mm |
| Locking type by machine side | Clamp cone |
| Locking type by tractor side | Collar lock |
| Max. clutch torque | 900 N·m |
| Max dynamic torque | 780 N·m |
| Original number equivalent | 0747503901 |
| Outer tube large outside diameter | 43.5 mm |
| Outer tube wall thickness | 3.4 mm |
| Power 1000 rpm | 40 kW |
| Power 540 rpm | 26 kW |
| Profile tube shape | Triangular |
| Size code | T40 |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 19020 g |
| Dimensions | 1300 × 181 × 180 mm |
| Dangerous goods | No |
You might also like
Free shipping
BPA000024714

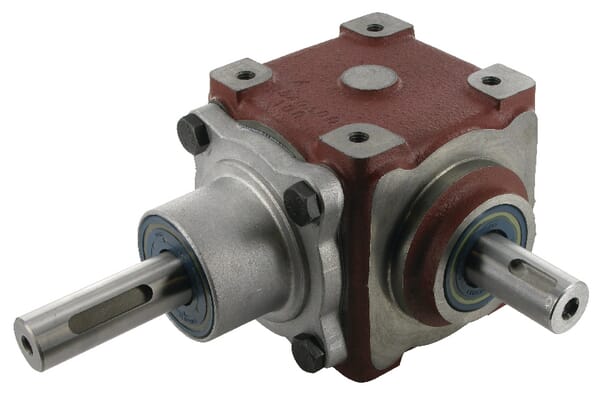

Comer Gearbox L-5A 1.89:1 104008
£302.78 excl.
£363.34 incl.
In stock
Expected to ship on Wednesday 23 September
Free shipping
BPA000048051
Comer Yoke, Clamp bolt, 1-3/8"-21 spline, T90/V90 141029023
£526.17 excl.
£631.40 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000115440

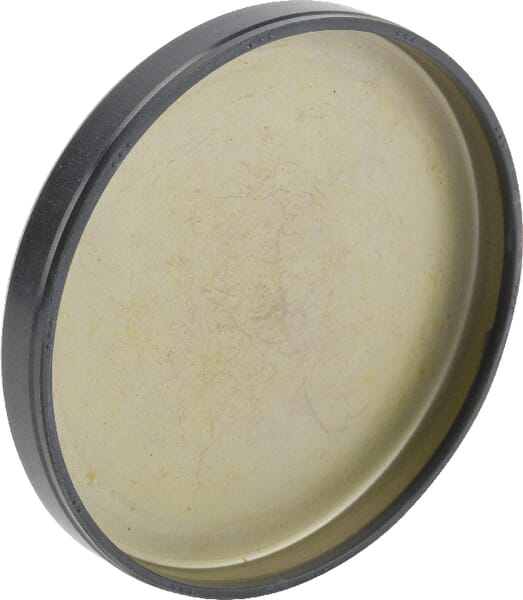

Comer Cap 8.7.0.00790 435887000790
£3.65 excl.
£4.38 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000076451

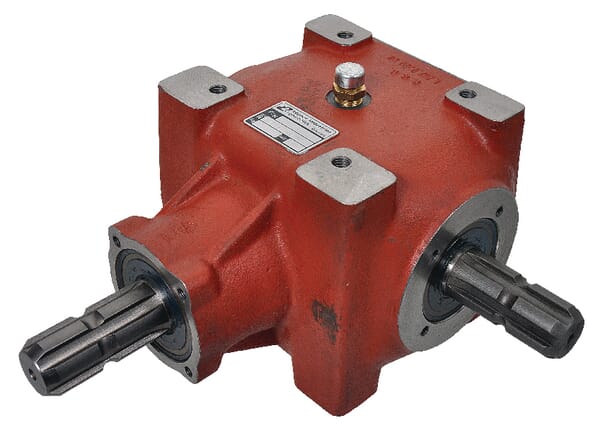

Comer Gearbox T-27A 1.47:1 267046
£506.90 excl.
£608.28 incl.
In stock
Expected to ship on Wednesday 23 September
Free shipping
BPA000023419

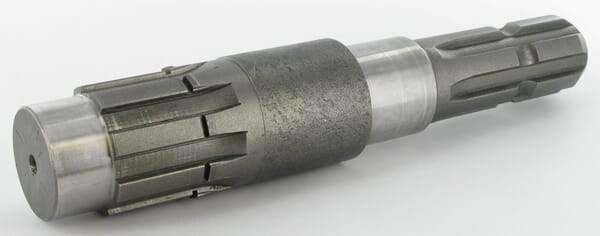

Comer Input shaft 1.3/8 07322000
