£305.68
excl. VAT
£366.81 incl. VAT
£366.81
incl. VAT
£305.68 excl. VAT
Free shipping
Out of stock — Backorder available
Usually ships within 3–8 weeks.

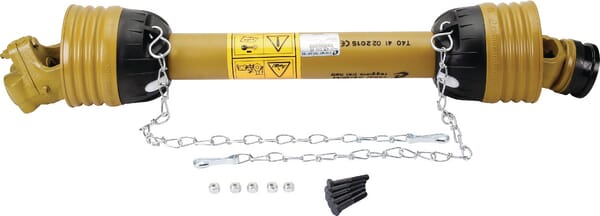

Product details
| Attachment machine side | Shear bolt clutch |
|---|---|
| Attachment tractor side | Quick disconnect yoke |
| Clutch type code | B02 |
| Connection outside diameter machine side inch and splines | 1.3/8-6 |
| Connection outside diameter tractor side inch and splines | 1.3/8-6 |
| Cross joint bush diameter by machine side | 27 mm |
| Cross joint bush diameter by tractor side | 27 mm |
| Cross joint length by machine side | 74.6 mm |
| Cross joint length by tractor side | 74.6 mm |
| Inner tube large outside diameter | 36 mm |
| Inner tube wall thickness | 4.5 mm |

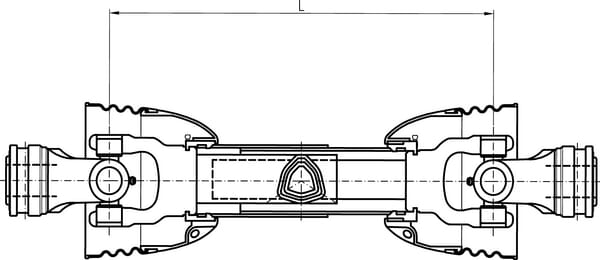

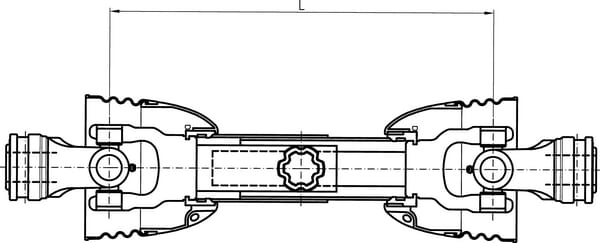

| LLength | 1210 mm |
| Locking type by machine side | Push pin |
| Locking type by tractor side | Collar lock |
| Max. clutch torque | 1700 N·m |
| Max dynamic torque | 780 N·m |
| Original number equivalent | 0743501810 |
| Outer tube large outside diameter | 43.5 mm |
| Outer tube wall thickness | 3.4 mm |
| Power 1000 rpm | 40 kW |
| Power 540 rpm | 26 kW |
| Profile tube shape | Triangular |
| Size code | T40 |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 17954 g |
| Dimensions | 1450 × 150 × 150 mm |
| Dangerous goods | No |
You might also like
BPA000200095

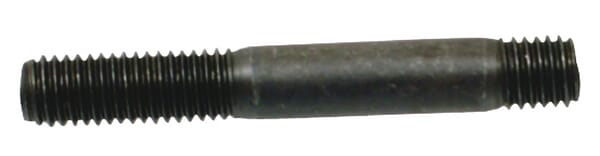

Comer Stud bolt DIN939 M8x135 steel 8.8 Kramp 9398135B
£20.93 excl.
£25.12 incl.
In stock
Expected to ship on Friday 18 September
Free shipping
BPA000078841

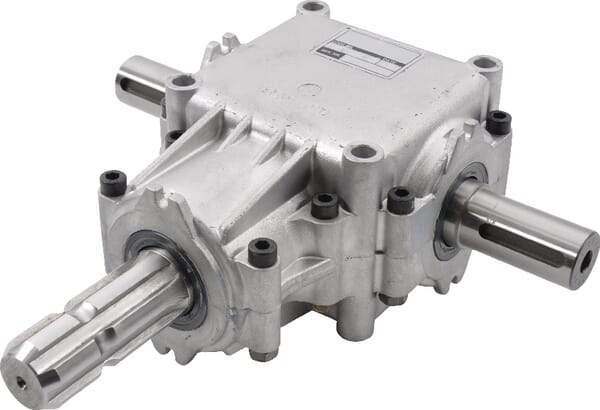

Comer Gearbox T-281A 1:1.84 281009
£536.34 excl.
£643.61 incl.
In stock
Expected to ship on Friday 18 September
Free shipping
BPA000155881

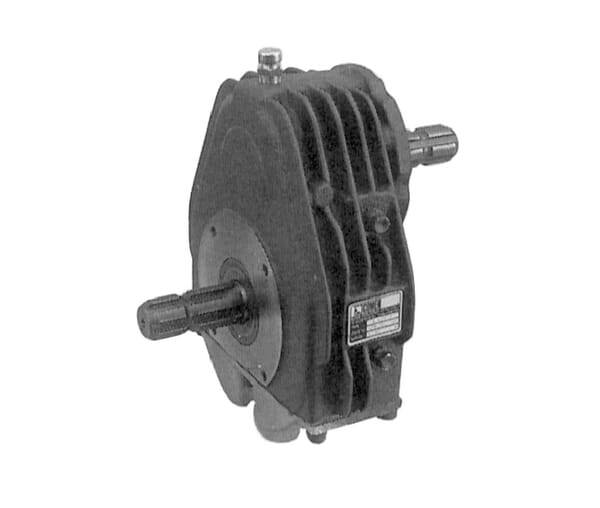

Comer Gearbox A-624A 1:6.9 624012
£641.33 excl.
£769.60 incl.
In stock
Expected to ship on Friday 18 September
Free shipping
BPA000048676

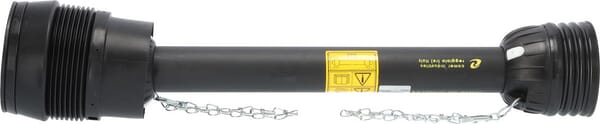

Comer Safety guard complete CvJ T80 1210 142781535
£374.10 excl.
£448.92 incl.
In stock
Expected to ship on Friday 18 September
BPA000012537

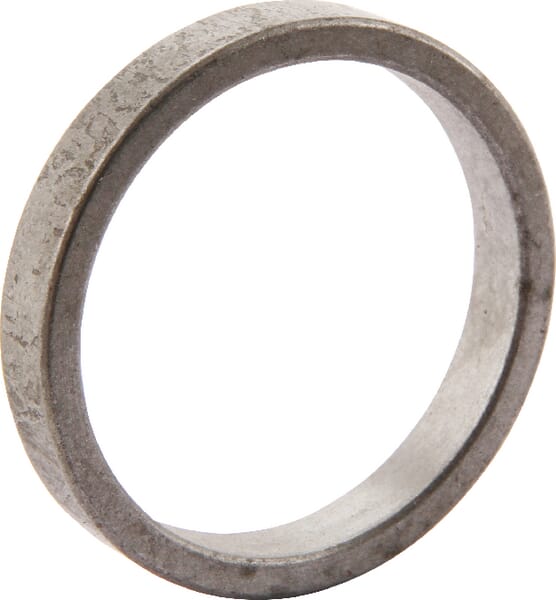

Comer Spacer 02597100
£7.16 excl.
£8.59 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000047972

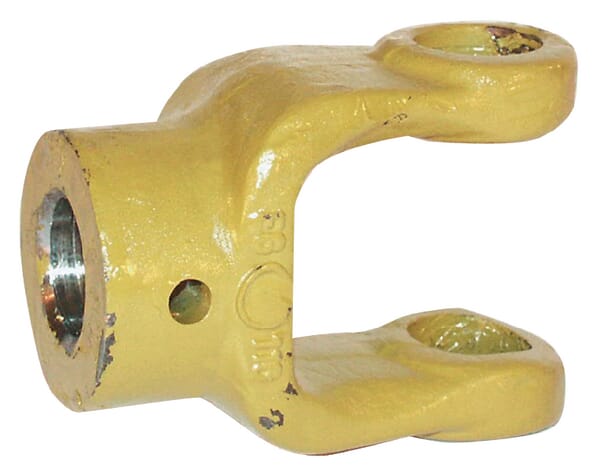

Comer Yoke, Hub, 35mm, T40/V40 151014069
