£441.06
excl. VAT
£529.27 incl. VAT
£529.27
incl. VAT
£441.06 excl. VAT
Free shipping
Out of stock — Backorder available
Usually ships within 3–8 weeks.
Product details
| Attachment machine side | Friction clutch |
|---|---|
| Attachment tractor side | Quick disconnect yoke |
| Clutch type code | T16 |
| Connection outside diameter machine side inch and splines | 1.3/8-6 |
| Connection outside diameter tractor side inch and splines | 1.3/8-6 |
| Cross joint bush diameter by machine side | 27 mm |
| Cross joint bush diameter by tractor side | 27 mm |
| Cross joint length by machine side | 74.6 mm |
| Cross joint length by tractor side | 74.6 mm |
| Inner tube large outside diameter | 36 mm |
| Inner tube wall thickness | 4.5 mm |
| LLength | 860 mm |
| Locking type by machine side | Clamp cone |
| Locking type by tractor side | Collar lock |
| Max. clutch torque | 900 N·m |
| Max dynamic torque | 780 N·m |
| Original number equivalent | 0747504311 |
| Outer tube large outside diameter | 43.5 mm |
| Outer tube wall thickness | 3.4 mm |
| Power 1000 rpm | 40 kW |
| Power 540 rpm | 26 kW |
| Profile tube shape | Triangular |
| Size code | T40 |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 17100 g |
| Dimensions | 1130 × 190 × 190 mm |
| Dangerous goods | No |
You might also like
Free shipping
BPA000078854

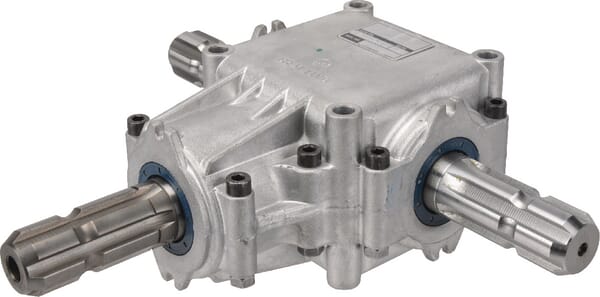

Comer Gearbox T-281A 2.91:1 281024
£358.96 excl.
£430.75 incl.
In stock
Expected to ship on Monday 21 September
BPA000058985

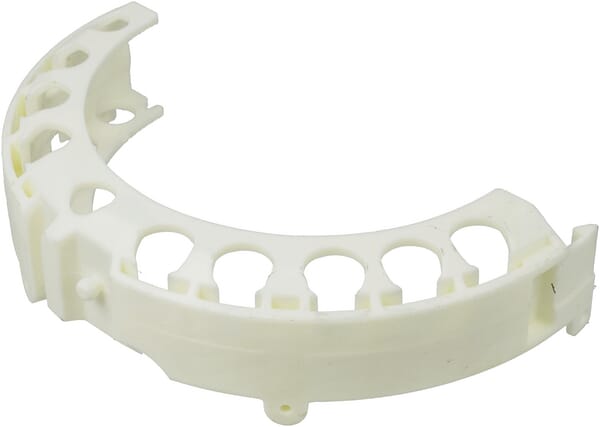

Comer Bearing ring CvJ cone VP7 180217041
£33.27 excl.
£39.92 incl.
In stock
Expected to ship on Monday 21 September
Free shipping
BPA000050273
Comer Clutch hub T0 1-3/8" z6 151014840
£125.32 excl.
£150.38 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000115381

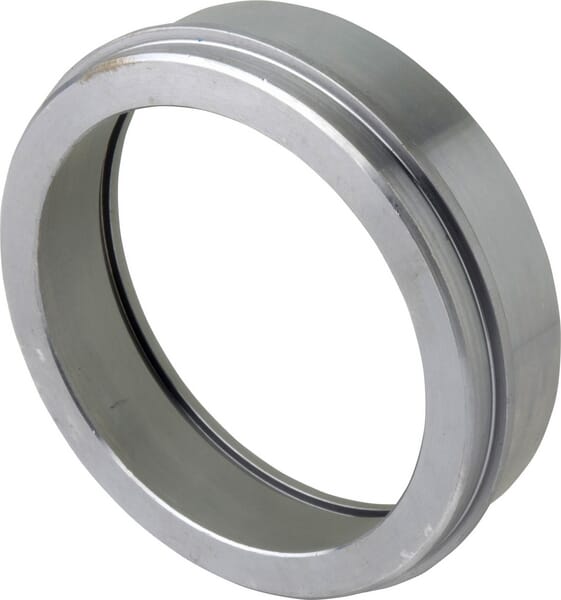

Comer Bush 0.404.7108.00 43580404710800
£61.62 excl.
£73.94 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000115403

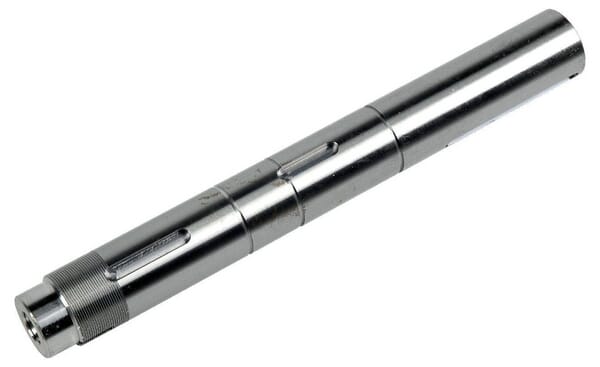

Comer Central shaft. compatible with 9.791.406 43580791370400
£165.77 excl.
£198.92 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000048032

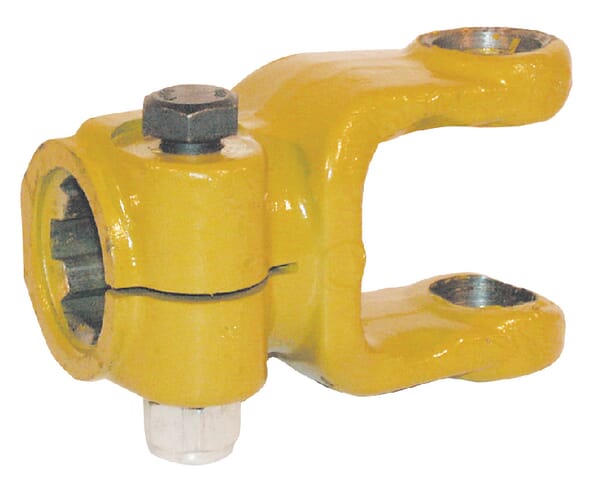

Comer Yoke, clamp bolt, 44.5mm -20 spline, T80/V80 141028065
