£279.84
excl. VAT
£335.81 incl. VAT
£335.81
incl. VAT
£279.84 excl. VAT
Free shipping
Out of stock — Backorder available
Usually ships within 3–8 weeks.
Product details
| Application range | Soil cultivating machinery, Harvesters, Mowers |
|---|---|
| Attachment machine side | Quick disconnect yoke |
| Attachment tractor side | Quick disconnect yoke |
| Connection outside diameter machine side inch and splines | 1.3/8-6 |
| Connection outside diameter tractor side inch and splines | 1.3/8-6 |
| Cross joint bush diameter by machine side | 30.2 mm |
| Cross joint bush diameter by tractor side | 30.2 mm |
| Cross joint length by machine side | 92 mm |
| Cross joint length by tractor side | 92 mm |
| Inner tube large outside diameter | 45 mm |
| Inner tube wall thickness | 4 mm |

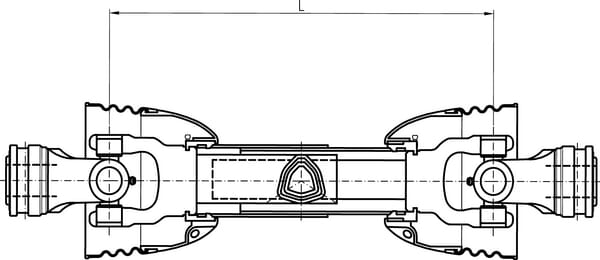

| LLength | 760 mm |
| Locking type by machine side | Collar lock |
| Locking type by tractor side | Collar lock |
| Max dynamic torque | 1450 N·m |
| Original number equivalent | 07.625.025.11 |
| Outer tube large outside diameter | 54 mm |
| Outer tube wall thickness | 4 mm |
| Power 1000 rpm | 74 kW |
| Power 540 rpm | 47 kW |
| Profile tube shape | Triangular |
| Properties | Lubrication interval: 8 hours, CE marking available |
| Size code | T60 |
| Technical info | Refer to the Comer instruction manual, Max. dynamic capacity 540 rpm - 47 kW - 830 Nm, Max. dynamic capacity 1000 rpm - 74 kW - 710 Nm, Values at working angle 5° and service life 1000 hours |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 17000 g |
| Dimensions | 1100 × 180 × 180 mm |
| Dangerous goods | No |
You might also like
Free shipping
BPA000046650

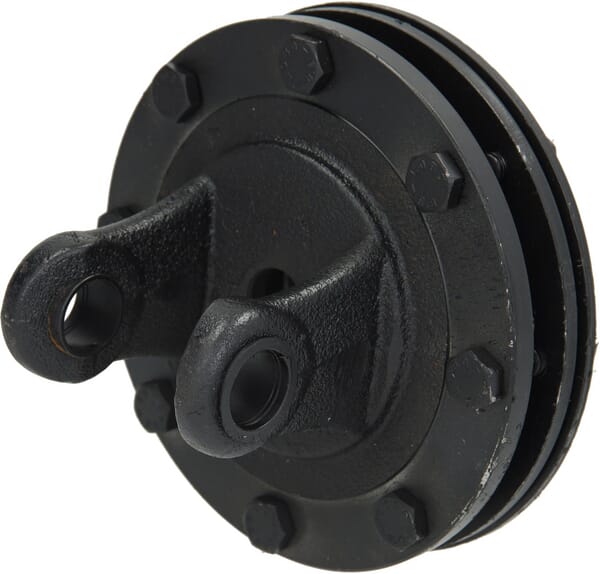

Comer Friction Clutch - Type T - T60 146264130
£598.65 excl.
£718.38 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000115370

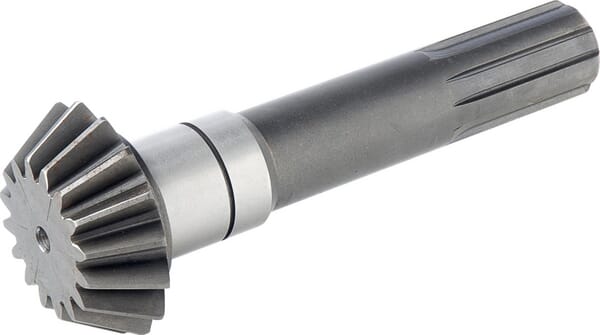

Comer Pinion shaft Z16 0.142.6000.00 43580142600000
£112.87 excl.
£135.44 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000057702

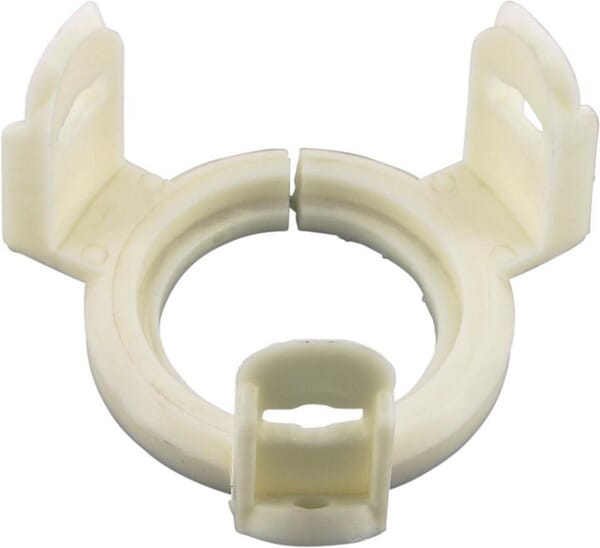

Comer Bearing ring 180011008
£11.72 excl.
£14.06 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000085143
Comer Extension L=1060 312502
£263.38 excl.
£316.06 incl.
In stock
Expected to ship on Tuesday 22 September
Free shipping
BPA000015210
Comer Shaft diameter 33mm 03105000
£105.66 excl.
£126.79 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000115281

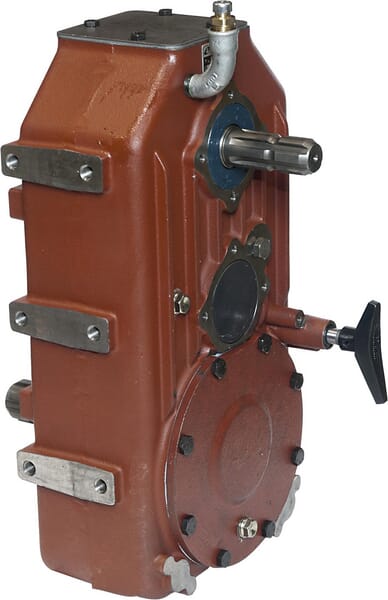

Comer Gearbox DP-732B 1:1 / 1,88:1, 59 43509732347
