Product details

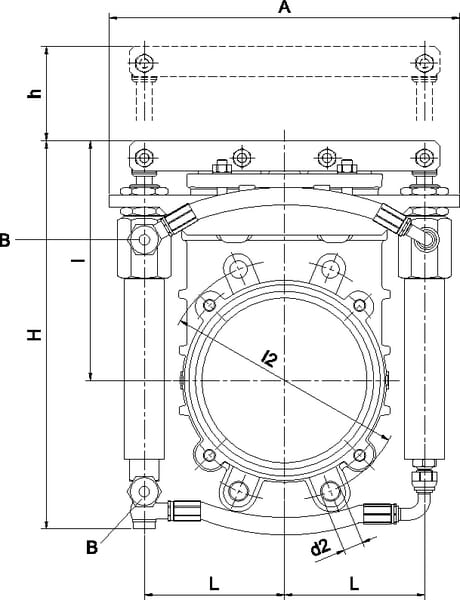

| ATotal width | 495 mm |
|---|---|
| Benefits | Compact |
| Connection type | Double flanged |
| Cylinder working pressure | 120 BAR |
| d2Flange mounting bolts/holes thread diameter | M20 |
| DPassage hole nominal diameter | 249 mm |
| Flange mounting bolts/holes distance | 249 mm |
| Flange mounting holes number | 12 |
| Flow direction type | Uni-directional |
| Gate material | Stainless steel |
| hCylinder stroke | 260 mm |
| Housing material | Cast iron |
| HTotal height | 542 mm |
| IPassage hole centre to top distance (closed) | 349 mm |
| l2Flange mounting bolts/holes circle diameter | 350 mm |
| LCentre to cylinder centre distance | 212.5 mm |
| Max medium temperature | 80 °C |
| Max working pressure | 6 BAR |
| Min medium temperature | -15 °C |
| Original number equivalent | ARZO0101250560 |
| Properties | Blockage-free cut-off valve, Painted cast iron housing with stainless steel gate valve and bolts, To install exclusively in the flow direction, Without discharge |
| Technical info | Cylinder connection:M18x1.5 with male quick connection 1/2"xØ20,5 ISO 7241-1 A |
| Type of drive/steering | Hydraulic double acting |
| Unit | Each |
| Water tight | Yes |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 47000 g |
| Dimensions | 580 × 490 × 180 mm |
| Dangerous goods | No |
