About this product

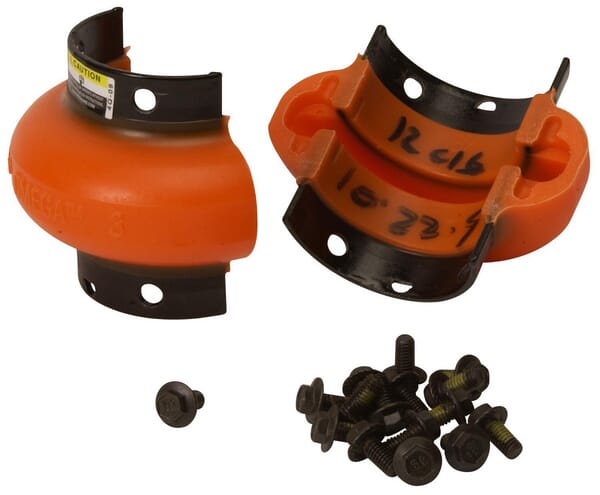

A Rexnord Omega E70 elastic coupling element, supplied as a single unit comprising two coupling halves and mounting bolts. The element is rated for a nominal working torque of 2490 N·m and a maximum rotation speed of 3600 r/min. The coupling measures 356 mm in outside diameter with a total width of 281 mm and weighs approximately 39 kg. As an Omega-type elastic coupling, it accommodates minor misalignment whilst transmitting power between shafts in transmission applications.
Product details
| Max rotation speed | 3600 r/min |
|---|---|
| Nominal working torque | 2490 N·m |
| Outside diameter | 356 mm |
| Total width | 281 mm |
| Type code | E 70 |
| Unit | Each |
| Weight | 39 |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | — |
| Dimensions | — |
| Dangerous goods | No |
