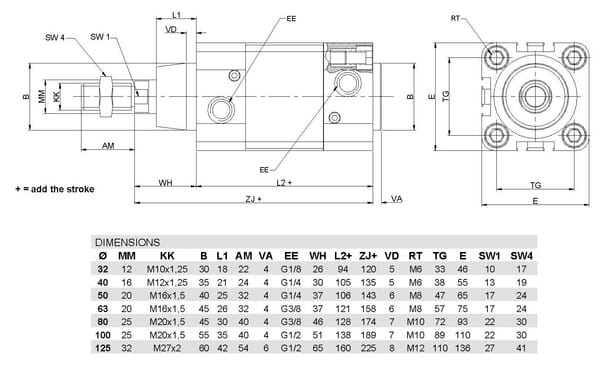

Product details
| Bore diameter | 125 mm |
|---|---|
| Damping type | Pneumatic - both sides - adjustable |
| Long description | Series 61 cylinders are manufactured in accordance with ISO 15552 standards and are compatible with the full range of standard accessories. A permanent magnet integrated into the piston allows piston position detection via proximity switches mounted in the longitudinal grooves of the cylinder profile. These grooves can be closed using slot cover profiles. This cylinder series features adjustable end-of-stroke pneumatic cushioning. In addition, mechanical cushioning is incorporated to further reduce impact forces as the piston reaches the end positions, ensuring smoother operation and extended service life. |
| Magnetic | Yes |
| Min. length | 529 mm |
| Mounting diameter (width) - cylinder connection | 12 mm |
| Mounting type - cylinder side connection | Thread |
| Outside diameter | 125 mm |
| Product details | Camozzi, series 61, Double-acting operation for precise and controlled movement, Magnetic piston for position sensing with proximity and reed sensors, Adjustable pneumatic cushioning at both end positions, Anodized aluminium profile tube with integrated sensor grooves, Stainless steel piston rod for durability and long service life, ISO 15552 compliant design for full interchangeability, Integrated mechanical cushioning for reduced impact at stroke end, Robust anodized aluminium profile tube |
| Rod diameter | 25 mm |
| Series | 61 |
| Stroke | 250 mm |
| Type | Double acting |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | — |
| Dimensions | — |
| Dangerous goods | No |
