Product details
| Bore diameter | 125 mm |
|---|---|
| Damping type | Pneumatic - both sides - adjustable |

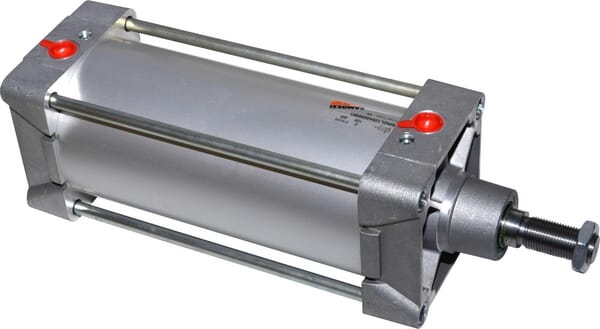

| Long description | Series 61 cylinders are manufactured in accordance with ISO 15552 standards and are compatible with the full range of standard accessories. A permanent magnet integrated into the piston allows piston position detection via proximity switches mounted in the longitudinal grooves of the cylinder profile. These grooves can be closed using slot cover profiles. This cylinder series features adjustable end-of-stroke pneumatic cushioning. In addition, mechanical cushioning is incorporated to further reduce impact forces as the piston reaches the end positions, ensuring smoother operation and extended service life. |
| Magnetic | Yes |
| Min. length | 479 mm |
| Mounting diameter (width) - cylinder connection | 12 mm |
| Mounting type - cylinder side connection | Thread |
| Outside diameter | 125 mm |
| Product details | Camozzi, series 61, Double-acting operation for precise and controlled movement, Magnetic piston for position sensing with proximity and reed sensors, Adjustable pneumatic cushioning at both end positions, Anodized aluminium profile tube with integrated sensor grooves, Stainless steel piston rod for durability and long service life, ISO 15552 compliant design for full interchangeability, Integrated mechanical cushioning for reduced impact at stroke end, Robust anodized aluminium profile tube |
| Rod diameter | 25 mm |
| Series | 61 |
| Stroke | 200 mm |
| Type | Double acting |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | — |
| Dimensions | — |
| Dangerous goods | No |
Recently viewed
BPA000029917
Stihl Gasket and diaphragm kit 11190071060
£26.00 excl.
£31.19 incl.
In stock
Expected to ship on Thursday 24 September
Free shipping
BPA000240003

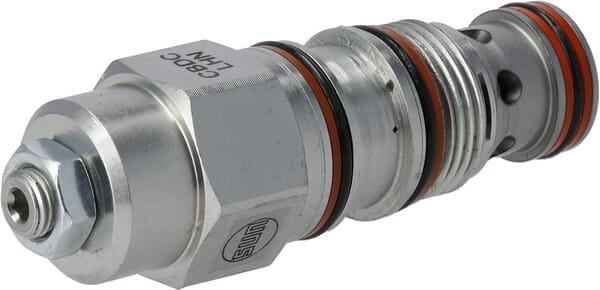

Sun Valve CBDCLHN 80 litre 70-280 T2A CBDCLHNT2A
£229.44 excl.
£275.33 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000074911
Radiator Hose Elbow 3 cylinder 26901860374M2
£1.43 excl.
£1.72 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000365144

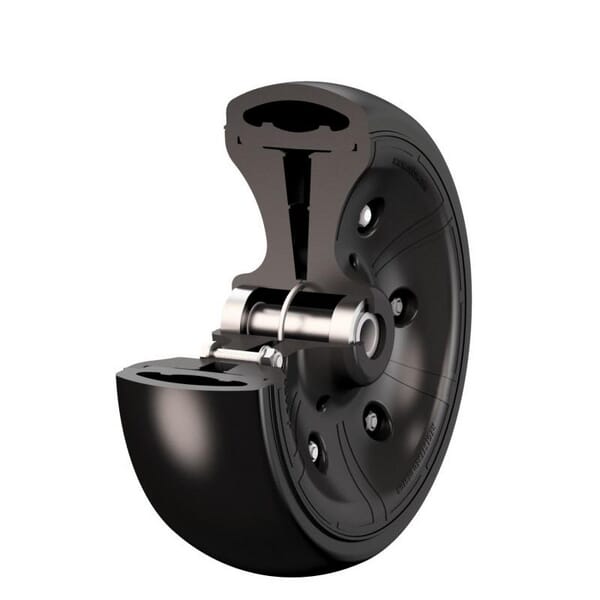

Otico Farmflex Semi-Pneumatic wheel SPW300100R
£95.86 excl.
£115.03 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000290080
MANN-FILTER Oil filter element, metal-free HU9452X
£11.48 excl.
£13.78 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000050978

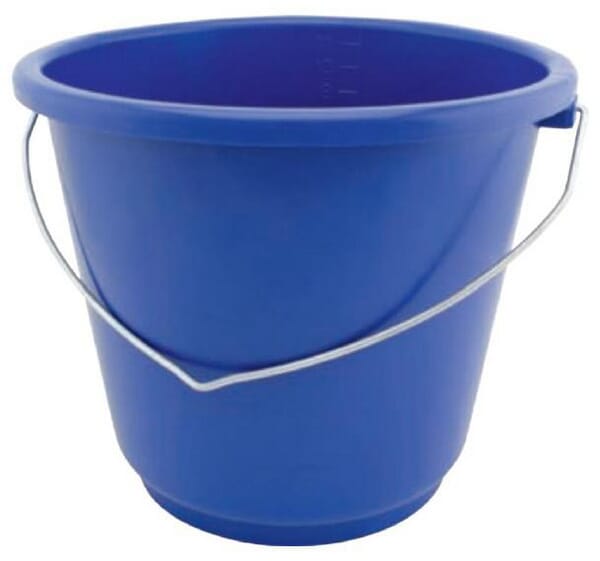

Flexible bucket 12L blue 1626160203
£7.42 excl.
£8.90 incl.
In stock
Expected to ship on Wednesday 23 September
Free shipping
BPA000227558
John Deere Cristal delantero AL167656
£1,193.33 excl.
£1,431.99 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000365136

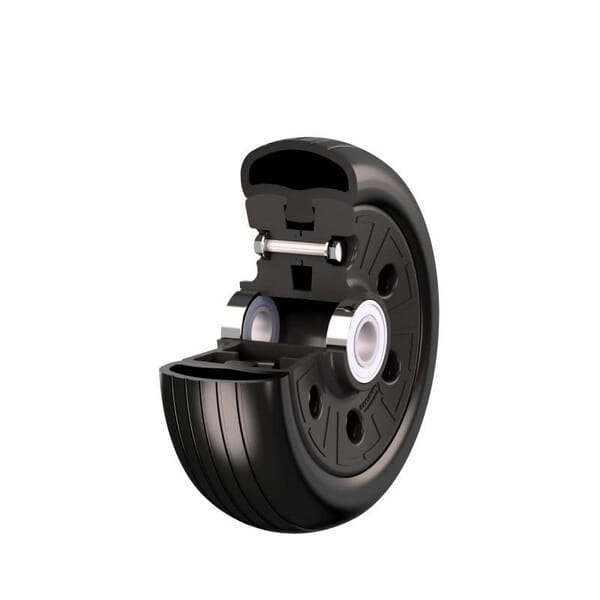

Otico Farmflex Semi-Pneumatic wheel SPW20067K
£76.40 excl.
£91.68 incl.
In stock
Expected to ship on Tuesday 22 September
Free shipping
BPA000365143

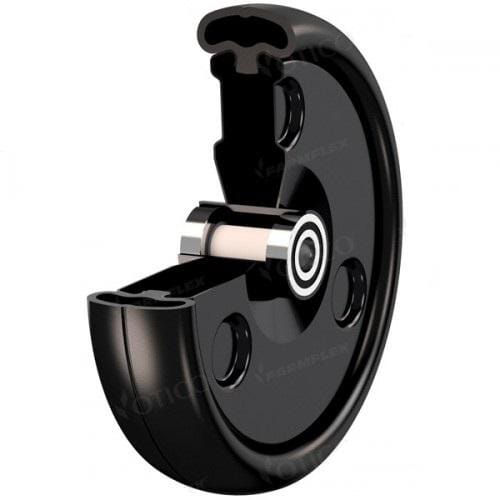

Otico Farmflex Semi-Pneumatic wheel SPW28065N
£138.44 excl.
£166.13 incl.
In stock
Expected to ship on Tuesday 22 September
Free shipping
BPA000070436

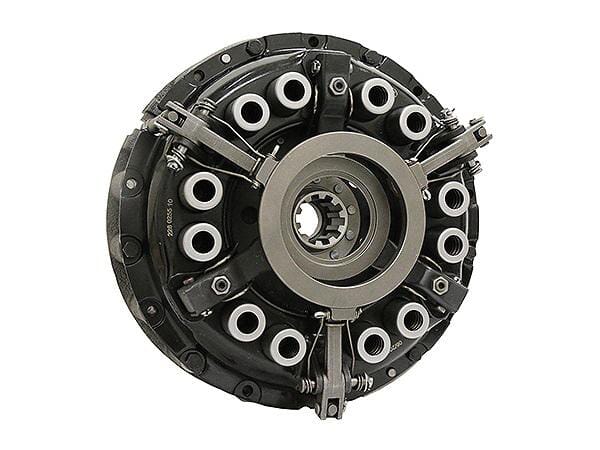

LuK Clutch pressure plate 228025510
