Product details
| Bore diameter | 25 mm |
|---|---|
| Damping type | n/a |

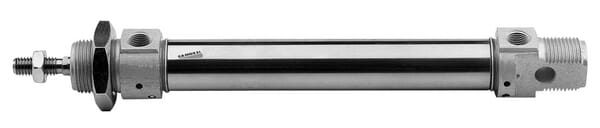

| Long description | The Camozzi Series 24 pneumatic cylinders are compact, double-acting cylinders designed for reliable linear motion in industrial automation applications. This series is equipped with a magnetic piston, enabling accurate position detection using proximity or reed sensors. Manufactured in accordance with ISO 6432, Series 24 cylinders offer standardized dimensions, ensuring easy interchangeability and seamless integration into existing pneumatic systems. |
| Magnetic | Yes |
| Min. length | 461.5 mm |
| Mounting diameter (width) - cylinder connection | 22 mm |
| Mounting type - cylinder side connection | Thread |
| Outside diameter | 25 mm |
| Product details | Camozzi, series 24, Double-acting operation for precise and controlled movement, Magnetic piston for position sensing with proximity and reed sensors, ISO 6432 compliant, standardized mounting dimensions, Compact design, ideal for installations with limited space, Aluminium barrel with anodized finish for corrosion resistance, Stainless steel piston rod for durability and long service life, Low friction seals for smooth operation and reduced air consumption, Filtered air in class [7:8:4] according to ISO 8573-1, Seals : NBR/PU, Maximum speed 1 m/sec (unloaded), Operating pressure : up to 10 bar, Operating temperature : 0°C to +80°C (with dry air -20°C) |
| Rod diameter | 10 mm |
| Series | 24 |
| Stroke | 320 mm |
| Type | Double acting |
| Unit | Each |
Compatible accessories
Parts and components that work with this product.
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 620 g |
| Dimensions | 480 × 35 × 35 mm |
| Dangerous goods | No |
