£63.70
excl. VAT
£76.44 incl. VAT
£76.44
incl. VAT
£63.70 excl. VAT
In stock
Expected to ship on Monday 21 September
Product details

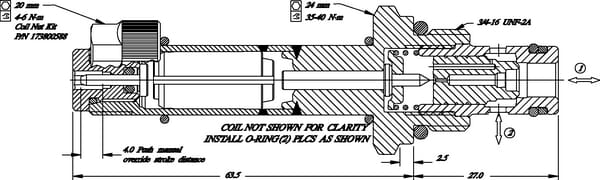

| Cavity | SDC08-2 |
|---|---|
| Content in sale unit | 1 pcs |
| Includes | Cartridge with nut, Magnetic coil, plug and housing to be ordered separately, see accessories |

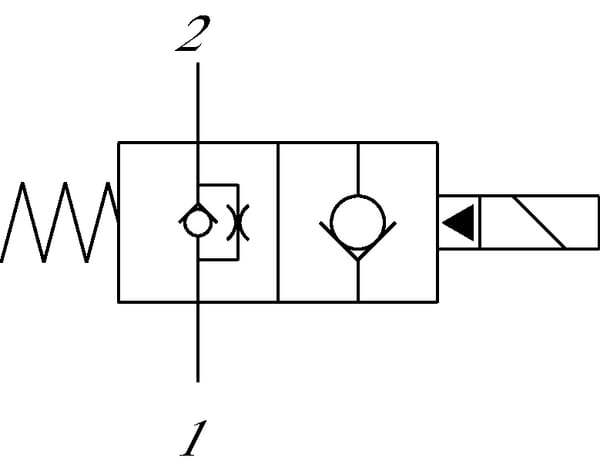

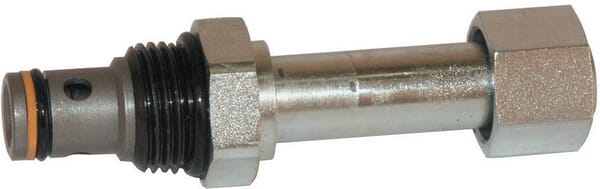

| Long description | This is a normally open, pre-actuated solenoid valve. In a de-energised state, there is free flow from port 2 to 1, and severe restriction from port 1 to port 2. When operated, 2 to 1 is closed and there is free flow from 1 to 2. This type comes standard with a manual push-pin operation. |

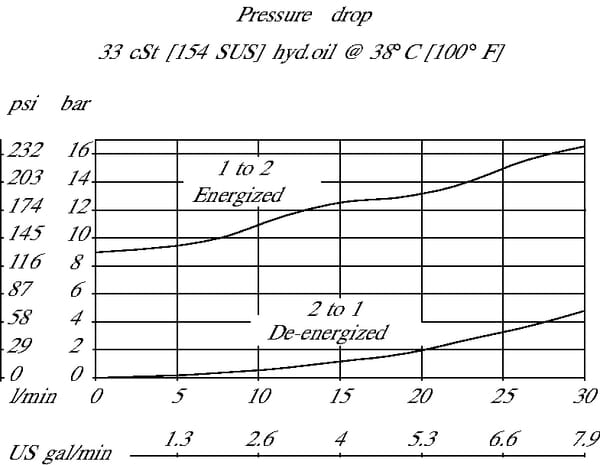

| Max. flow rate | 35 l/min |
| Max working pressure | 230 BAR |
| Normally open or closed | Open |
| Product details | Normally open cartridge, Electrically powered check valve, Pre-actuated cartridge, Valve seat with max. leakage of 6 drops/min, Manual pin operation, Idle: free flow from 2 to 1, Idle: limited flow from 1 to 2, Operated: free flow from 1 to 2, Operated: closed from 2 to 1 |
| Unit | Each |
| Voltage (DC) | 12 V, 24 V |
| With emergency function | No |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 114 g |
| Dimensions | 134 × 45 × 34 mm |
| Dangerous goods | No |
You might also like
Free shipping
BPA000316849

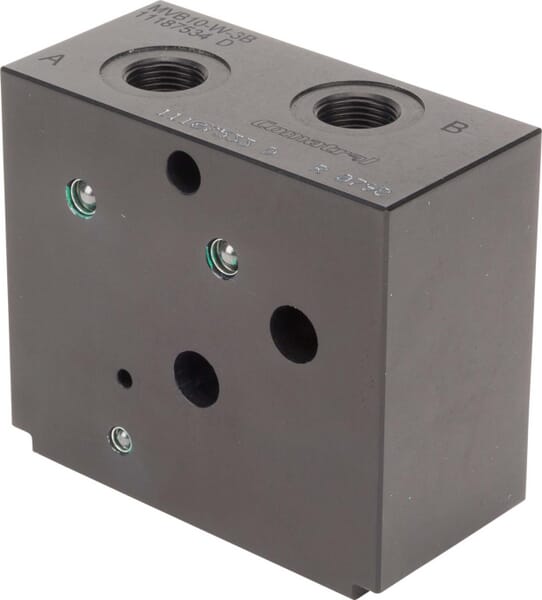

Danfoss Sectioin MVB10-W-3B MVB1011187533
£111.46 excl.
£133.75 incl.
In stock
Expected to ship on Monday 21 September
Free shipping
BPA000239918

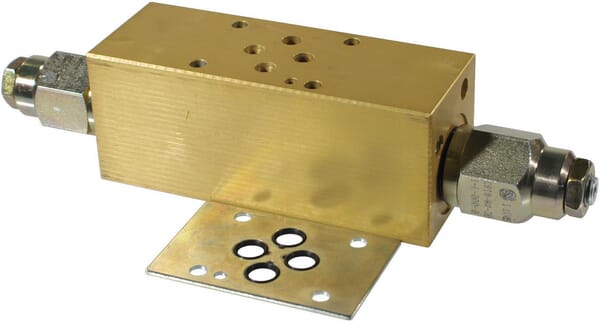

Danfoss Counterbalance CB10HV2B1E200B00 NG06 CB10HVM03016
£485.99 excl.
£583.19 incl.
In stock
Expected to ship on Monday 21 September
BPA000324814

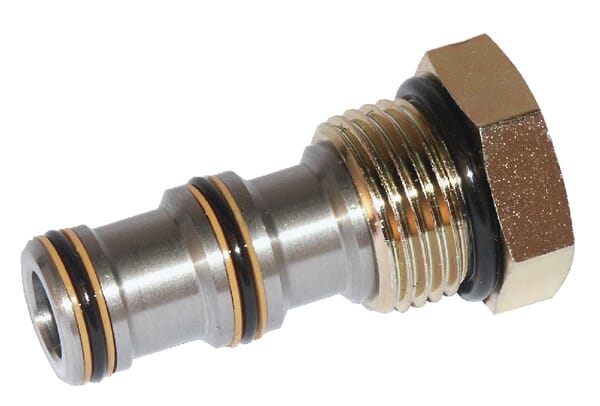

Danfoss Cavity plug NCS06/3 NCS063B0
£46.18 excl.
£55.42 incl.
In stock
Expected to ship on Monday 21 September
Free shipping
BPA000295545

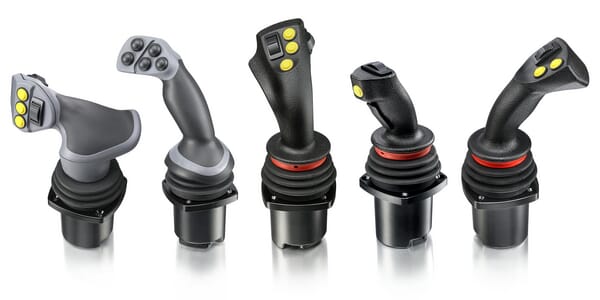

Danfoss Joystick JS1-H XY-CPH-C33-SP7-U-3xPB-1xRL JS1H83097204
£1,341.38 excl.
£1,609.65 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000366179

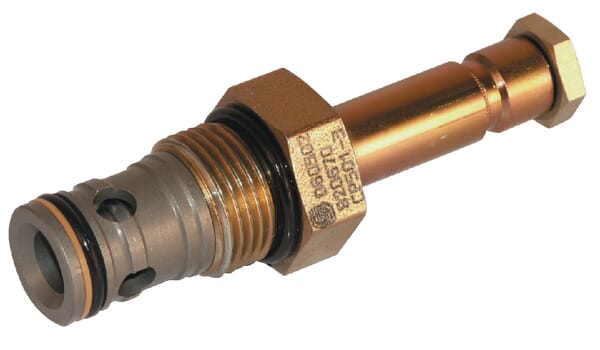

Danfoss Valve 2/2 SVP12-NCR-00-00-XC-B-00 SVP12NCR00B00
£146.62 excl.
£175.94 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000245623

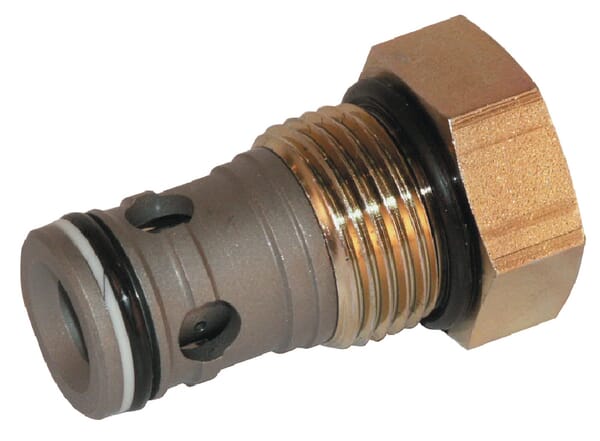

Danfoss Check valve CP101-1-B-0-005 CP1011B0005
