£47.81
excl. VAT
£57.37 incl. VAT
£57.37
incl. VAT
£47.81 excl. VAT
In stock
Expected to ship on Tuesday 22 September
Product details
| Cavity | SDC10-2 |
|---|---|

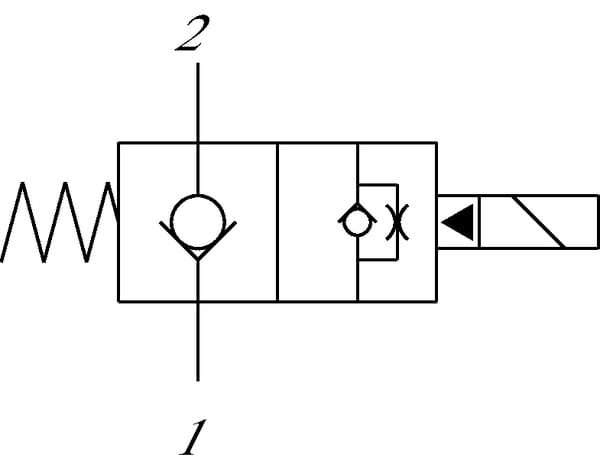

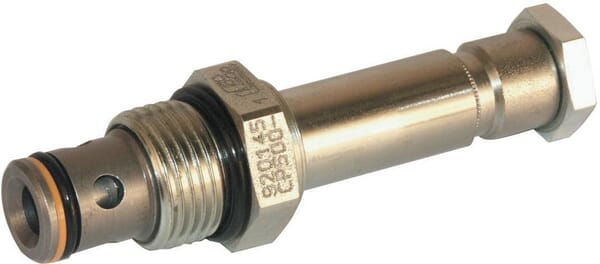

| Long description | This is a normally closed, pre-actuated solenoid valve. In a de-energised state, flow from 2 to 1 is closed, while there is free flow from 1 to 2. When operated, there is free flow from 2 to 1, and severe restriction from port 1 to port 2. |

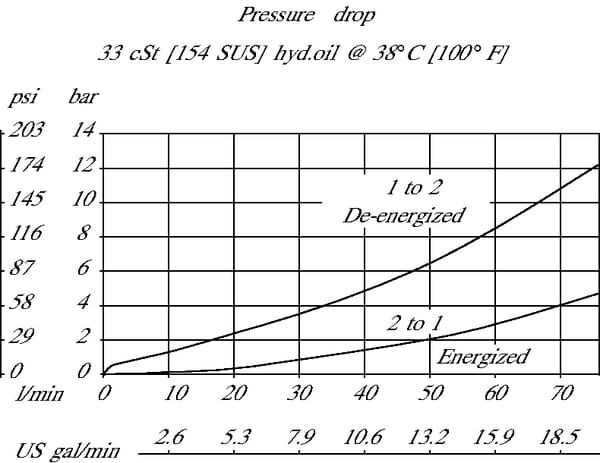

| Max. flow rate | 80 l/min |
| Max working pressure | 230 BAR |
| Normally open or closed | Closed |
| Product details | Normally closed cartridge, Electrically powered check valve, Pre-actuated cartridge, Valve seat with max. leakage of 6 drops/min, Idle: Closed from 2 to 1, Idle: free flow from 1 to 2, Operated: free flow from 2 to 1, Operated: very limited flow from 1 to 2 |
| Unit | Each |
| Voltage (DC) | 12 V, 24 V |
| With emergency function | No |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 202 g |

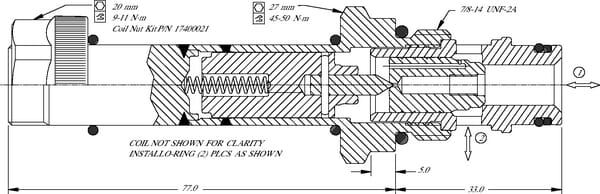

| Dimensions | 117 × 65 × 35 mm |
| Dangerous goods | No |
You might also like
Free shipping
BPA000341776

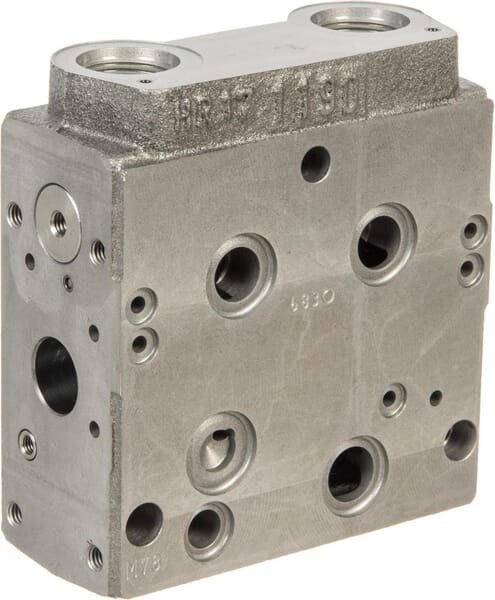

Danfoss Base module PVBZ PVG3211032961
£675.58 excl.
£810.70 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000341919
Danfoss Piston 157B7451 PVG32157B7451
£51.76 excl.
£62.11 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000341859

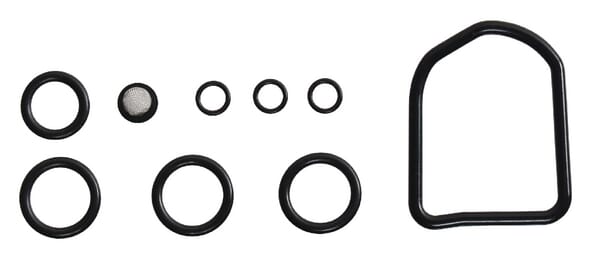

Danfoss Seal kit suitable for PVEH/D/M/O 157B4997 PVG32157B4997
£14.14 excl.
£16.97 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000246533

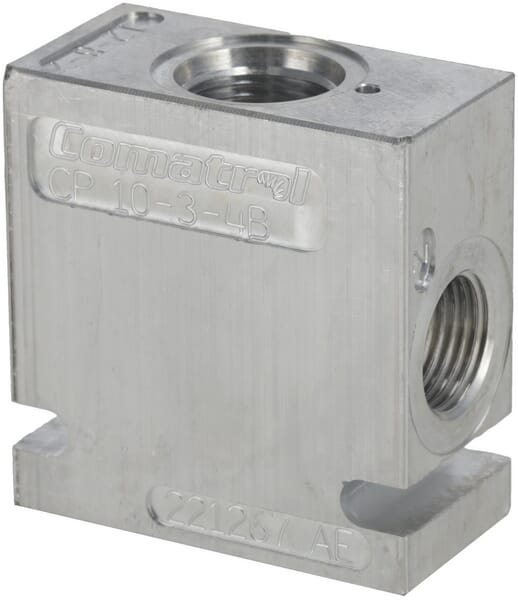

Danfoss Aluminium housing CP10-3 -A-08 (1/2") CP9103A08
£63.72 excl.
£76.46 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000341936
Danfoss Piston 40 L/M 157B7562 PC/LS PVG32157B7562
£64.07 excl.
£76.88 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000340711

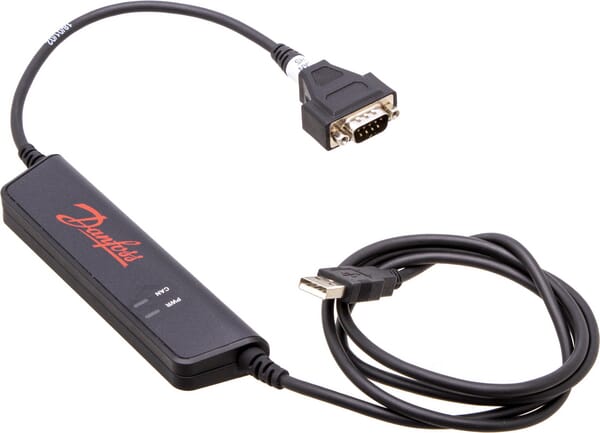

Danfoss Cable, Plus+1 CAN/USB gateway PLUS1CG150
