£242.60
excl. VAT
£291.12 incl. VAT
£291.12
incl. VAT
£242.60 excl. VAT
Free shipping
Out of stock — Backorder available
Usually ships within 3–8 weeks.

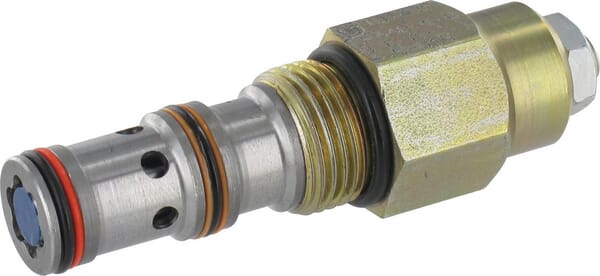

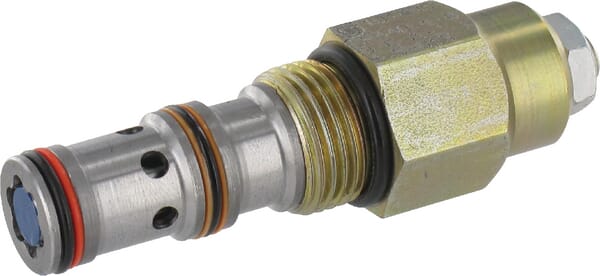

Product details
| Cavity | CP10-3L |
|---|---|
| Includes | Cartridge, Excl. housing |
| Length under head | 52.3 mm |
| Long description | Equalising valves or brake valves provide controlled movement, stopping and holding of loads. They prevent the lag of movements (negative load) and protect the installation against external forces (anti-shock). Overcentre valves provide controlled initiation and stopping of a movement, while holding the load at rest. When mounted directly on the cylinder or motor, they also function as hose breakage protection. |

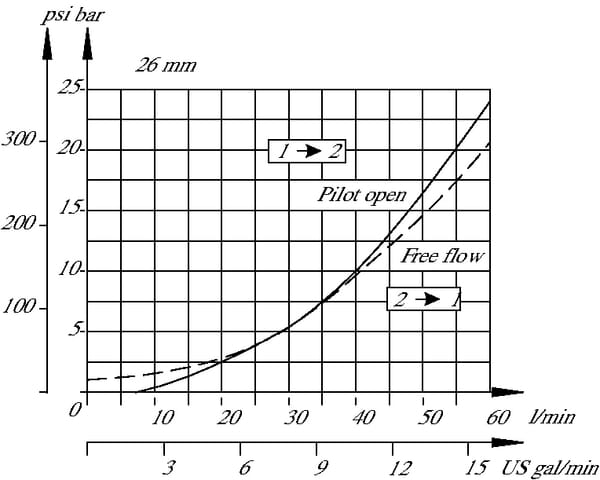

| Max. flow rate | 57 l/min |
| Max working pressure | 345 BAR |
| Operating pressure | 1-1 BAR |
| Pilot ratio | 1:4.5 |
| Pressure range | 103-345 BAR |

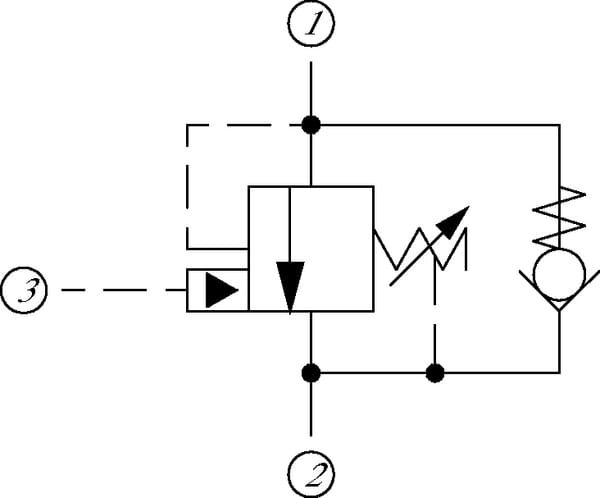

| Product details | HV: Hydraulically released spring chamber; A, B and T must be connected to each other in the neutral position, Pressure setting must be approx. 30% higher than the maximum load pressure, High return pressure can impair valve operation, Line installation as close to the consumer as possible, Free flow from 2 to 1, Opening pressure depends on pressure setting, load pressure and control pressure ratio |
| Pros | Provides gentle, controlled movements, Load-holding valve, Hose breakage protection, Protects against pressure peaks caused by external forces, Prevents lag caused by negative loads, Protects consumer against cavitation |
| Torque range | 47-54 N·m |

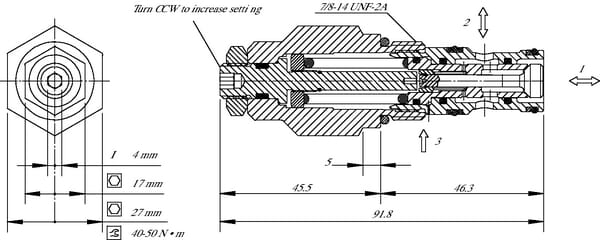

| Total length | 92.2 mm |
| Unit | Each |
| Wrench/spanner size | 25.4 mm |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 196 g |
| Dimensions | 90 × 27 × 27 mm |
| Dangerous goods | No |
You might also like
BPA000341768
Danfoss Assembly set PVAS M8 49-60mm-3x80mm PVG25611188218
£39.41 excl.
£47.29 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000341953
Danfoss Piston 100 l/m 157B9054 PVG32157B9054
£51.76 excl.
£62.11 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000366053
Danfoss Nut for SV08 coil SV908NUT
£5.50 excl.
£6.60 incl.
In stock
Expected to ship on Monday 21 September
Free shipping
BPA000341799

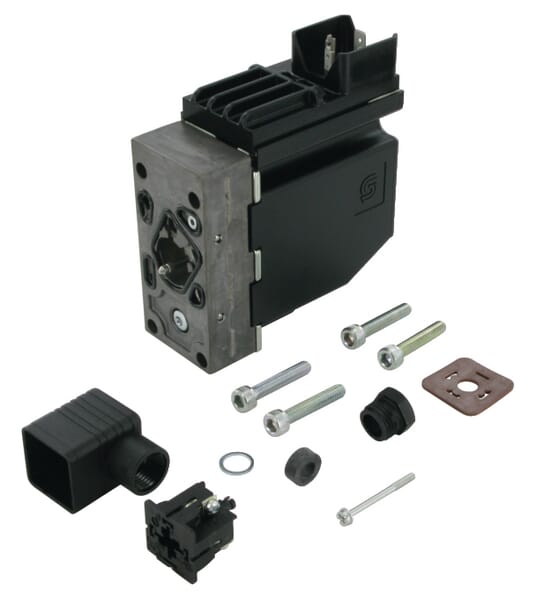

Danfoss Magnet PVEO-HP on/off 12V DEU PVG3211166765
£429.51 excl.
£515.41 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000239883

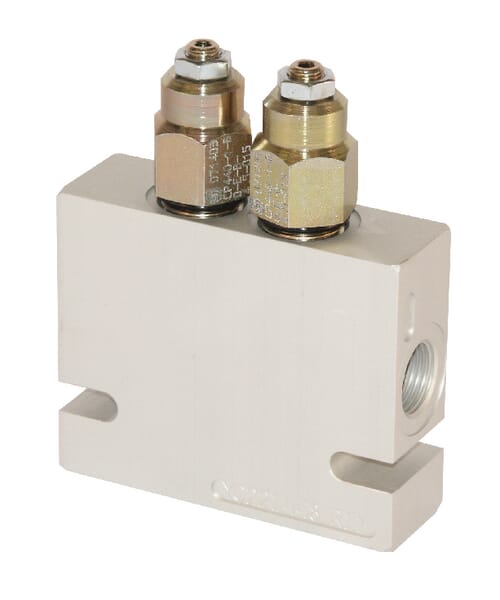

Danfoss Counter balance 2x CB10AV3B1E1 S08 CB10AV3B1E1005
£573.68 excl.
£688.42 incl.
In stock
Expected to ship on Monday 21 September
Free shipping
BPA000295561

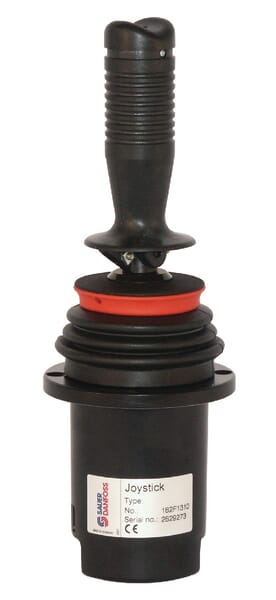

Danfoss Joystick JS1-H XY-PRH-NNN-ST2-U JS1H83147631
