£1,392.60
excl. VAT
£1,671.12 incl. VAT
£1,671.12
incl. VAT
£1,392.60 excl. VAT
Free shipping
Out of stock — Backorder available
Usually ships within 3–8 weeks.
Product details
| Connector type | Can cable 2 x Deutsch6 |
|---|---|
| Lever positioning function | Spring return |

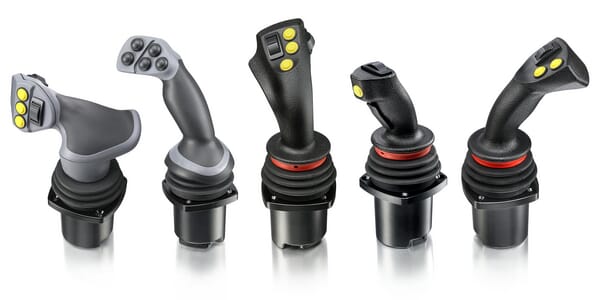

| Long description | The JS1 heavy duty joysticks (JS1-H) and associated handles meet the needs of the demanding conditions typically found in mobile installations. The available handles offer a high degree of protection against chemicals, shock, vibrations and EMC exposure. Danfoss joysticks are suitable for both inside and outside the cab and feature ergonomic shapes that minimise operator fatigue. |
| Master model code | JS1H-XY-CPH-S-C33-TPR2-R-Y1A-Y1A-P1A-NNN-Y1A-Y1A-Y1A-Y1A-Y1A-Y1A-NNN-Y1A-BNHN-NN |
| Neutral position switch | n/a |
| Number of actuation directions | 4 |
| Number of proportional functions | 6 |
| Number of push buttons | 4 |
| Number of rocker switches | 0 |
| Number of Rollers | 1 |
| Output signal type | CANopen protocols |
| Product details | Supply voltages: U (DC) 9-36 VDC, Current consumption PVE : max. 150mA, Current consumption base : max. 120mA, Current consumption neutral position switch : max 3A, voltage: U(S) 0,25-0,75 from U (DC), Enclosure: Below flange IP21, standard IP65, with roller IP40, Max. direction switch load for all prop. Functions: 30 V (DC) 2 mA, J1939 and CANopen protocols |
| Pros | The leathery grained surface allows the palm to breathe, Professional joystick for intensive use, Hall effect with two sensors per axis or position detection with long-life potentiometer, Ergonomic handle design |
| Rated max. operation current | 150 mA |
| Unit | Each |
| Version | Righthand, Right hand |
| Voltage range | 9-36 V |
| Voltage type | DC |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 1592 g |
| Dimensions | 1 × 1 × 1 mm |
| Dangerous goods | No |
You might also like
BPA000246560

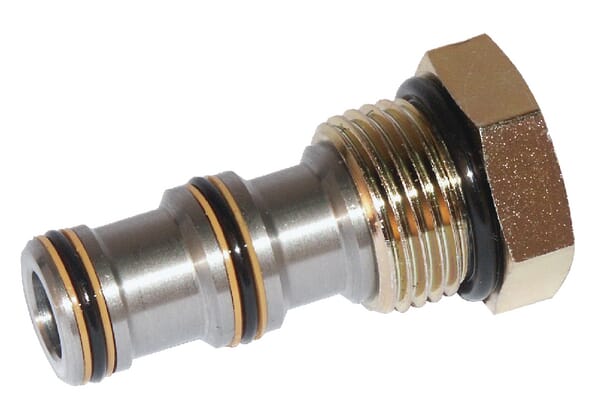

Danfoss Cavity Plug 3- Way series 08 CP93083B0
£39.59 excl.
£47.51 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000331592

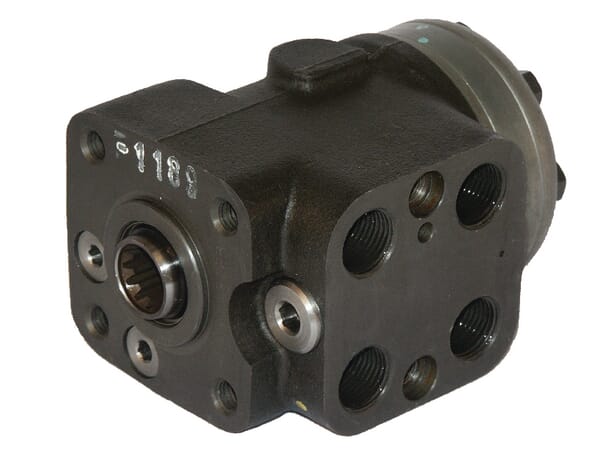

Danfoss Orbit steering unit OSPC125LS1501232
£752.92 excl.
£903.50 incl.
In stock
Expected to ship on Monday 21 September
Free shipping
BPA000239909

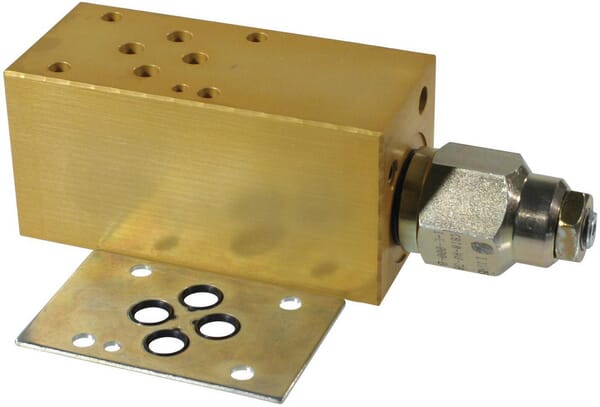

Danfoss Counterbalance CB10HV1A1E100B00 NG06 CB10HVM03002
£168.18 excl.
£201.82 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000347136

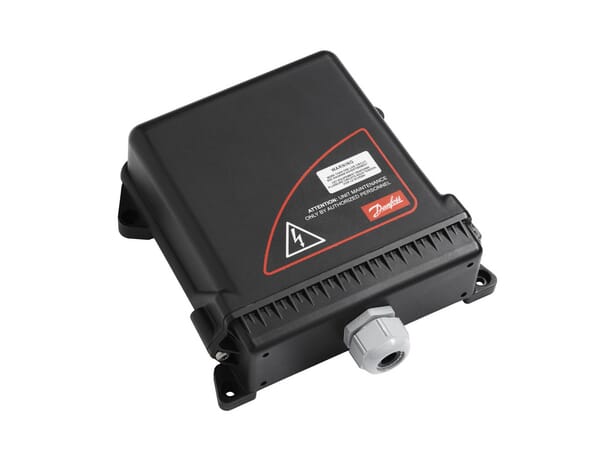

Danfoss Receiver R11 RCT11337280
£541.51 excl.
£649.81 incl.
In stock
Expected to ship on Monday 21 September
Free shipping
BPA000245841

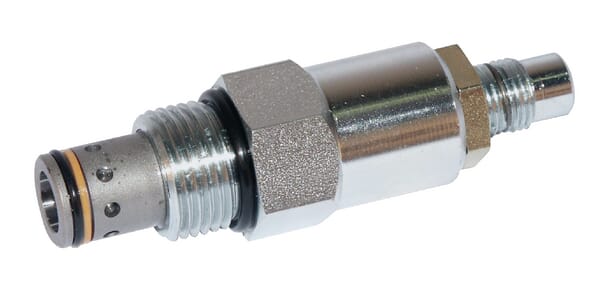

Danfoss Pressure relief valve, cartridge CP2102B0ED
