£171.64
excl. VAT
£205.97 incl. VAT
£205.97
incl. VAT
£171.64 excl. VAT
Free shipping
In stock
Expected to ship on Thursday 17 September
Product details
| Displacement | 243.9 cm³/rev |
|---|---|
| Drain port size code | n/a |
| Drain port thread diameter | 1/4 Inch |
| Drain port thread type | BSP |
| Flange code | A2 |
| Flange shape | Oval |

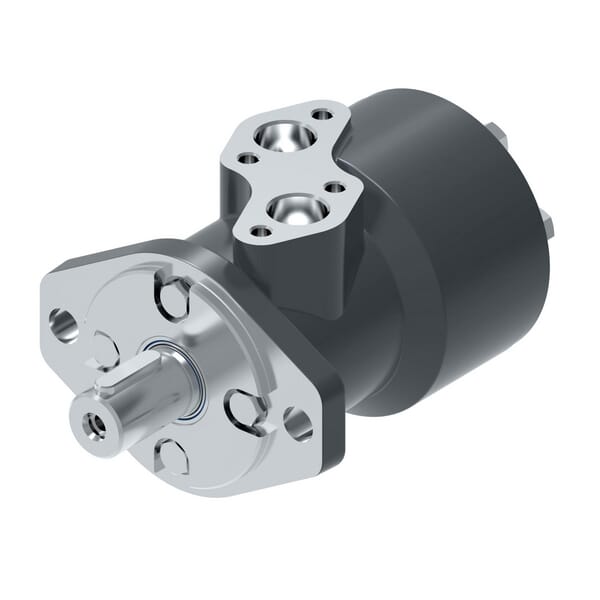

| Long description | The Danfoss Xcel Motors - XLH Series is built for medium-duty applications that require consistent and reliable performance. These motors combine spool valve technology with advanced gerotor technology, delivering steady torque output and meeting the demands of moderate to high-performance applications. While they may not match the XLS Series in friction reduction, XLH motors are durable, efficient, and offer dependable control thanks to the robust spool valve design. |
| Main port thread diameter | 1/2 Inch |
| Main port thread type | BSP |
| Max. continous working pressure | 100 BAR |
| Max continuous torque | 660 N·m |
| Max rotation speed | 234 r/min |
| Number of mounting holes | 2 |
| Product details | Danfoss Xcel XLH Series, Low Speed High Torque, Spool valve motors for medium duty applications |
| Rotation direction | n/a |
| Shaft diameter | 25 mm |
| Shaft type | Cylindrical |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 7243 g |
| Dimensions | 235 × 140 × 125 mm |
| Dangerous goods | No |
You might also like
BPA000024696

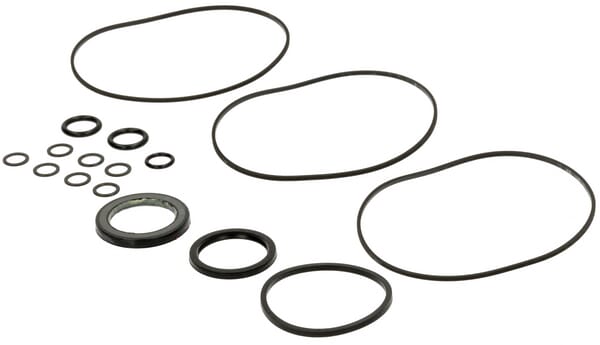

Danfoss Seal kit LYNN S-PLUS (1 1039AFD
£41.49 excl.
£49.79 incl.
In stock
Expected to ship on Thursday 17 September
Free shipping
BPA000052044

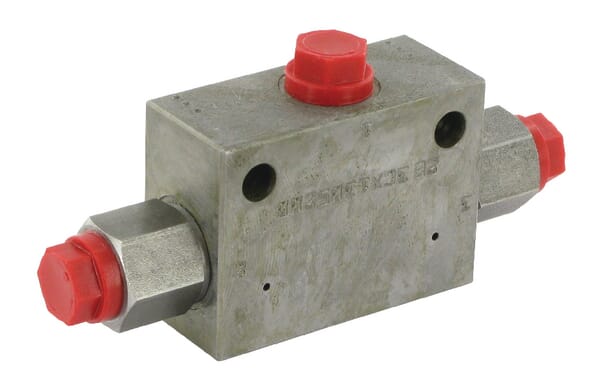

Danfoss LS compensation valve PVFC 158H805500
£334.31 excl.
£401.17 incl.
In stock
Expected to ship on Thursday 17 September
Free shipping
BPA000376567
Danfoss Counter balance valve VCB 06-CN-2 VCB06CN2B00
£133.09 excl.
£159.71 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000239879

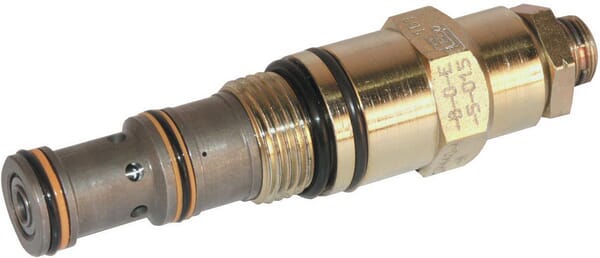

Danfoss Counterbalance cartridge CB10AV2B1 CB10AV2B1E100B00
£157.36 excl.
£188.83 incl.
In stock
Expected to ship on Friday 18 September
Free shipping
BPA000341806

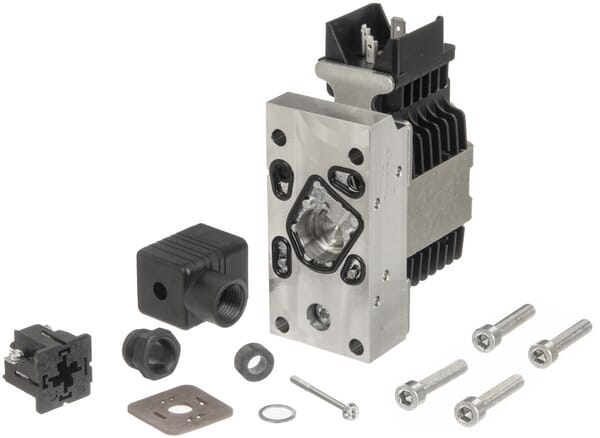

Danfoss Magnet PVEO-R on/off 12V DIN 1x4 PVG3211166831
£414.20 excl.
£497.04 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000341882

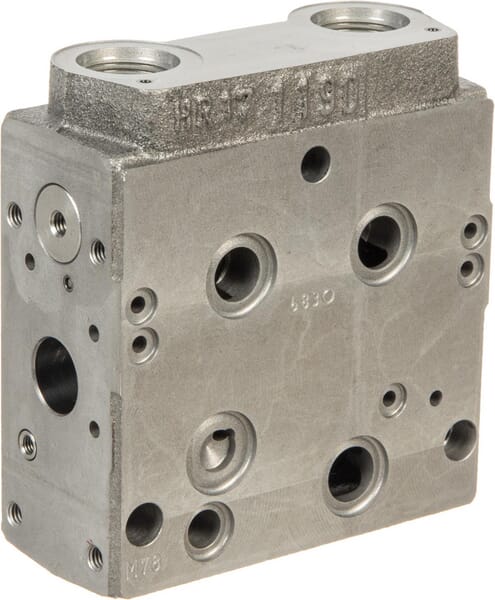

Danfoss Base module PVBZ PVG32157B6969
