£295.74
excl. VAT
£354.89 incl. VAT
£354.89
incl. VAT
£295.74 excl. VAT
Free shipping
In stock
Expected to ship on Friday 18 September
Product details
| Displacement | 10.8 cm³/rev |
|---|---|
| Flange and back cover material | Aluminium |
| Flange code | E10 |
| Flange type norm | European |
| Housing material | Aluminium |
| Inlet port diameter | 13.5 mm |
| Key width | 4 mm |
| Main port size code | 2G12 |
| Main port thread diameter | M6 |
| Material shaft seal | Viton |
| Max. continous working pressure | 250 BAR |
| Max pressure peak | 280 BAR |
| Mounting diameter | 36.5 mm |
| Mounting holes horizontal distance | 71.5 mm |
| Mounting holes vertical distance | 96.2 mm |
| Number of mounting holes | 4 |
| Outlet port diameter | 13.5 mm |
| Port position | Side |
| Pressure port bolts circle diameter | 30 mm |
| Pressure port size code | 2G08 |
| Pressure port thread diameter | M6 |
| Pump group code | 2 |
| Rotation direction | Clockwise (CW) |
| Sealing material | Nitrile rubber [NBR] |
| Sealing type | Low pressure |
| Shaft cone size code | 1:8 |
| Shaft diameter | 17.46 mm |
| Shaft thread diameter | M12 |
| Shaft thread pitch | 1.25 mm |
| Shaft thread type | Metric |
| Shaft type | Tapered 1:8 |
| Shaft type code | T80 |
| Suction port bolts circle diameter | 30 mm |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 2602 g |
| Dimensions | 150 × 116 × 90 mm |
| Dangerous goods | No |
You might also like
Free shipping
BPA000341994

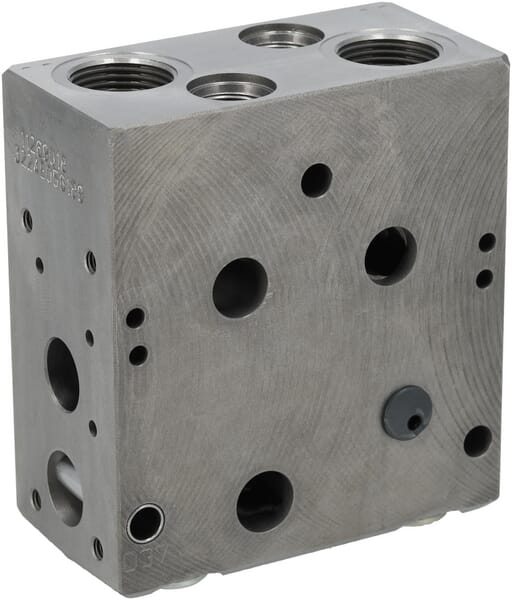

Danfoss Basic module PVB48 BSP-COMP-PVLP-T0 PVG4811269018
£546.91 excl.
£656.29 incl.
In stock
Expected to ship on Monday 21 September
BPA000341836
Danfoss Pin PVG32155L0390
£26.68 excl.
£32.02 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000341724
Danfoss Assembly set PVAS-256/128-6/1 PVG25611187690
£105.51 excl.
£126.61 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000366154
Danfoss Control valve 2/2 SVP08NO 24VDC A06 SVP08NO002
£116.64 excl.
£139.97 incl.
In stock
Expected to ship on Friday 18 September
BPA000333769

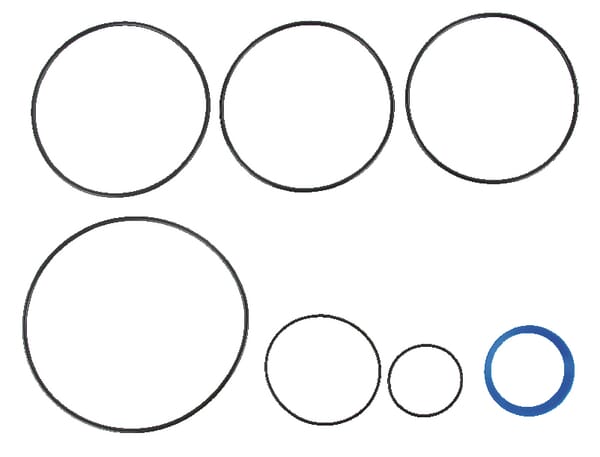

Danfoss Gasket set 151B0114 OMTS9AFD
£30.29 excl.
£36.35 incl.
In stock
Expected to ship on Monday 21 September
Free shipping
BPA000331673

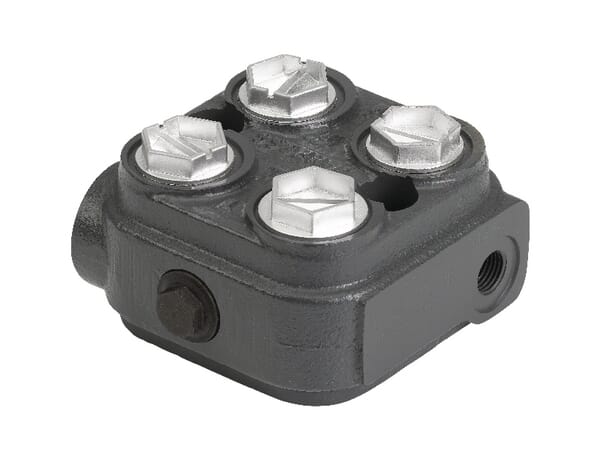

Danfoss Safety block 152-1116 OVPL28
