£295.78
excl. VAT
£354.94 incl. VAT
£354.94
incl. VAT
£295.78 excl. VAT
Free shipping
In stock
Expected to ship on Tuesday 22 September

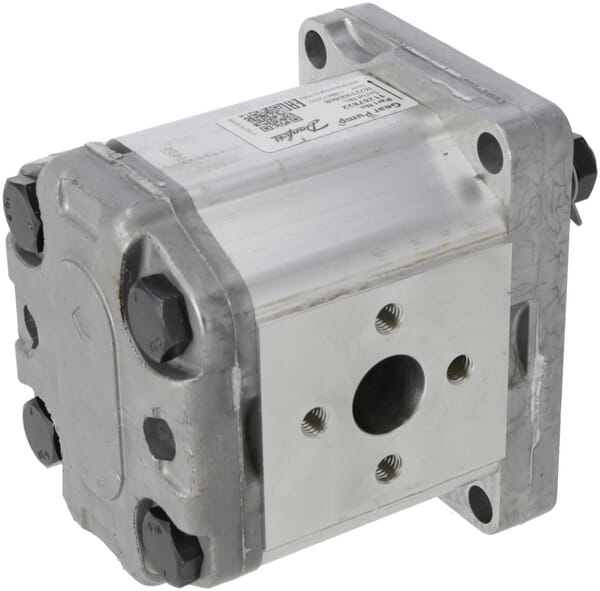

Product details
| Displacement | 14.4 cm³/rev |
|---|---|
| Flange and back cover material | Aluminium |
| Flange code | E10 |
| Flange type norm | European |
| Housing material | Aluminium |
| Inlet port diameter | 20 mm |
| Key width | 4 mm |
| Main port size code | 2G12 |
| Main port thread diameter | M8 |
| Material shaft seal | Viton |
| Max. continous working pressure | 250 BAR |
| Max pressure peak | 280 BAR |
| Mounting diameter | 36.5 mm |
| Mounting holes horizontal distance | 71.5 mm |
| Mounting holes vertical distance | 96.2 mm |
| Number of mounting holes | 4 |
| Outlet port diameter | 13.5 mm |
| Port position | Side |
| Pressure port bolts circle diameter | 30 mm |
| Pressure port size code | 2G12 |
| Pressure port thread diameter | M6 |
| Pump group code | 2 |
| Rotation direction | Clockwise (CW) |
| Sealing material | Nitrile rubber [NBR] |
| Sealing type | Low pressure |
| Shaft cone size code | 1:8 |
| Shaft diameter | 17.46 mm |
| Shaft thread diameter | M12 |
| Shaft thread pitch | 1.25 mm |
| Shaft thread type | Metric |
| Shaft type | Tapered 1:8 |
| Shaft type code | T80 |
| Suction port bolts circle diameter | 40 mm |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 2750 g |
| Dimensions | 160 × 120 × 90 mm |
| Dangerous goods | No |
You might also like
Free shipping
BPA000331662

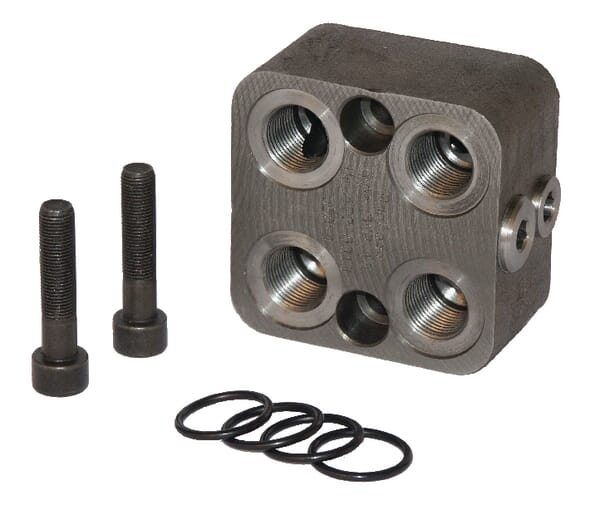

Danfoss Shock Valve 152-0010 OVP10
£358.54 excl.
£430.25 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000341835

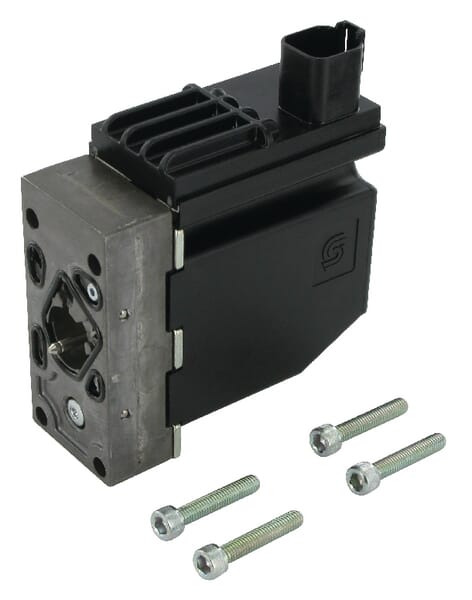

Danfoss Magnet PVEP PWM 10-32V Passiv-S7-1X6DEU PVG3211314593
£743.65 excl.
£892.38 incl.
In stock
Expected to ship on Tuesday 22 September
Free shipping
BPA000365122

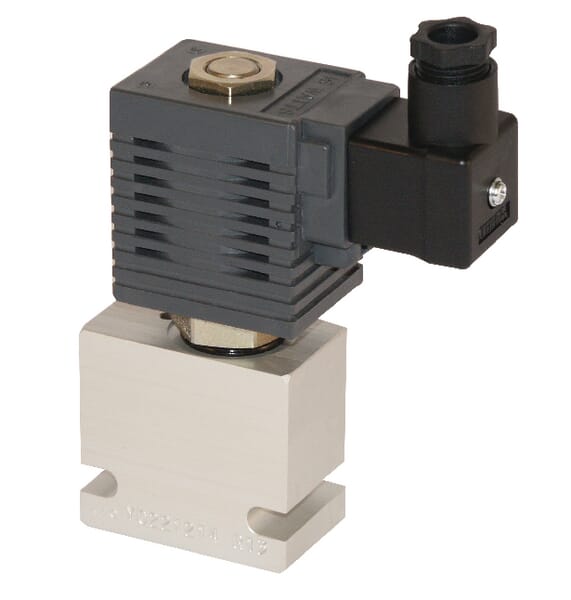

Danfoss Valve 2/2 SVP12-NCR-24D-DN-XC-B-6B SPV12NCR002
£166.52 excl.
£199.82 incl.
In stock
Expected to ship on Tuesday 22 September
Free shipping
BPA000343655

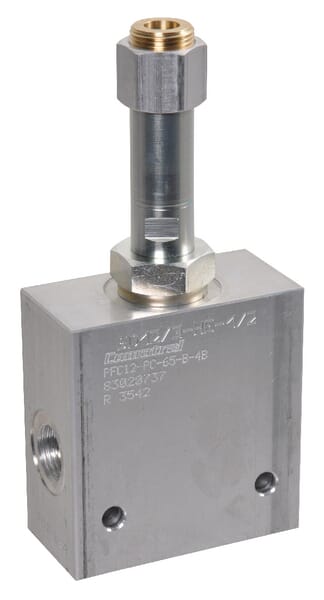

Danfoss Control valve 3w press.comp.NC 1/2" PFC12PC650000B4B
£458.72 excl.
£550.46 incl.
In stock
Expected to ship on Tuesday 22 September
Free shipping
BPA000341744
Danfoss Assembly set PVAS M8 649-660mm-3x687mm PVG25611188189
£157.23 excl.
£188.68 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000333771

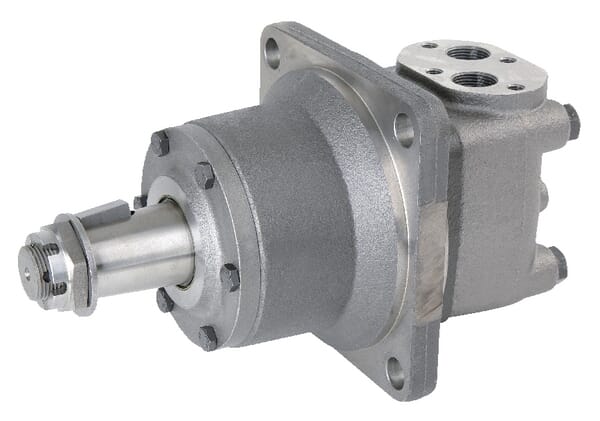

Danfoss Wheel motor, shaft diameter 45 tapered OMTW200151B3031
