£310.01
excl. VAT
£372.01 incl. VAT
£372.01
incl. VAT
£310.01 excl. VAT
Free shipping
In stock
Expected to ship on Friday 18 September

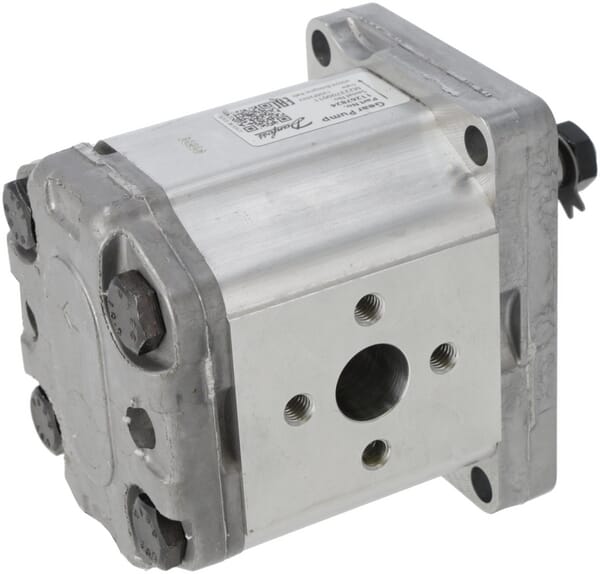

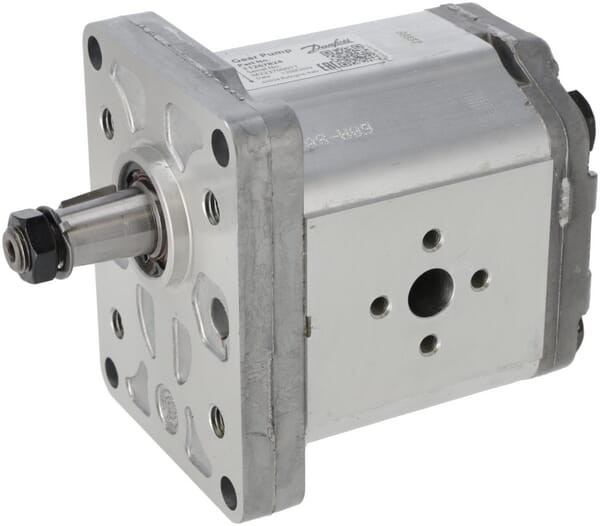

Product details
| Displacement | 16.8 cm³/rev |
|---|---|
| Flange and back cover material | Aluminium |
| Flange code | E10 |
| Flange type norm | European |
| Housing material | Aluminium |
| Inlet port diameter | 20 mm |
| Key width | 4 mm |
| Main port size code | 2G12 |
| Main port thread diameter | M8 |
| Material shaft seal | Viton |
| Max. continous working pressure | 250 BAR |
| Max pressure peak | 280 BAR |
| Mounting diameter | 36.5 mm |
| Mounting holes horizontal distance | 71.5 mm |
| Mounting holes vertical distance | 96.2 mm |
| Number of mounting holes | 4 |
| Outlet port diameter | 13.5 mm |
| Port position | Side |
| Pressure port bolts circle diameter | 30 mm |
| Pressure port size code | 2G12 |
| Pressure port thread diameter | M6 |
| Pump group code | 2 |
| Rotation direction | Clockwise (CW) |
| Sealing material | Nitrile rubber [NBR] |
| Sealing type | Low pressure |
| Shaft cone size code | 1:8 |
| Shaft diameter | 17.46 mm |
| Shaft thread diameter | M12 |
| Shaft thread pitch | 1.25 mm |
| Shaft thread type | Metric |
| Shaft type | Tapered 1:8 |
| Shaft type code | T80 |
| Suction port bolts circle diameter | 40 mm |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 2871 g |
| Dimensions | 155 × 110 × 90 mm |
| Dangerous goods | No |
You might also like
BPA000341761
Danfoss Assembly set PVAS M8 217-228mm-3x250mm PVG25611188211
£66.82 excl.
£80.18 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000246559
Danfoss Cavity Plug 2- Way series 08 CP93082B0
£24.51 excl.
£29.41 incl.
In stock
Expected to ship on Friday 18 September
BPA000341959
Danfoss Plunger 100 L/M 157-B-9624 PVG32157B9624
£92.08 excl.
£110.50 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000398261
Danfoss Seal kit XL2 Series Danfoss Xcel XL29Z33102
£56.45 excl.
£67.74 incl.
In stock
Expected to ship on Friday 18 September
BPA000341859

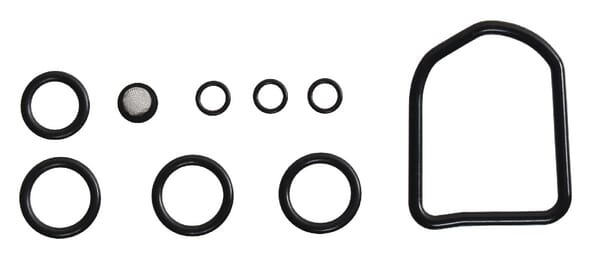

Danfoss Seal kit suitable for PVEH/D/M/O 157B4997 PVG32157B4997
£14.14 excl.
£16.97 incl.
In stock
Expected to ship on Friday 18 September
BPA000246459

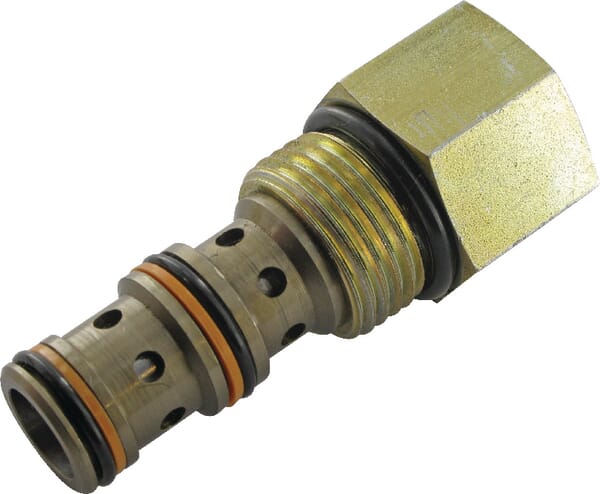

Danfoss Pressure compensator CP 700-1-B-0-1 CP7001B0D
