£322.26
excl. VAT
£386.71 incl. VAT
£386.71
incl. VAT
£322.26 excl. VAT
Free shipping
In stock
Expected to ship on Tuesday 22 September
Product details
| Displacement | 25.2 cm³/rev |
|---|---|
| Flange and back cover material | Aluminium |
| Flange code | E10 |
| Flange type norm | European |
| Housing material | Aluminium |
| Inlet port diameter | 23.5 mm |
| Key width | 4 mm |
| Main port size code | 2G12 |
| Main port thread diameter | M8 |
| Material shaft seal | Viton |
| Max. continous working pressure | 250 BAR |
| Max pressure peak | 280 BAR |
| Mounting diameter | 36.5 mm |
| Mounting holes horizontal distance | 71.5 mm |
| Mounting holes vertical distance | 96.2 mm |
| Number of mounting holes | 4 |
| Outlet port diameter | 20 mm |
| Port position | Side |
| Pressure port bolts circle diameter | 30 mm |
| Pressure port size code | 2G12 |
| Pressure port thread diameter | M8 |
| Pump group code | 2 |
| Rotation direction | Clockwise (CW) |
| Sealing material | Nitrile rubber [NBR] |
| Sealing type | Low pressure |
| Shaft cone size code | 1:8 |
| Shaft diameter | 17.46 mm |
| Shaft thread diameter | M12 |
| Shaft thread pitch | 1.25 mm |
| Shaft thread type | Metric |
| Shaft type | Tapered 1:8 |
| Shaft type code | T80 |
| Suction port bolts circle diameter | 40 mm |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 3248 g |
| Dimensions | 170 × 110 × 90 mm |
| Dangerous goods | No |
You might also like
Free shipping
BPA000246221

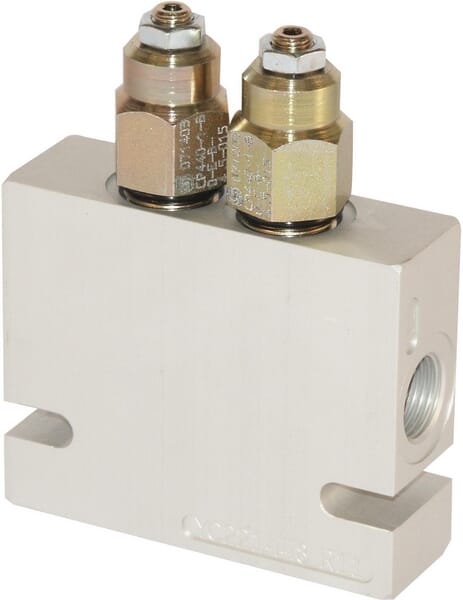

Danfoss Counter balance 2X CP4411B0EA451 A12 3/4 CP4412001
£354.57 excl.
£425.48 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000341963

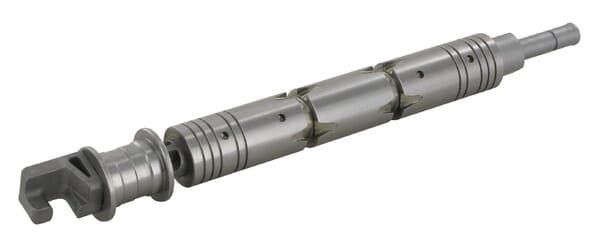

Danfoss Plunger 100 L/M 157-B-9704 PVG32157B9704
£82.51 excl.
£99.01 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000341938

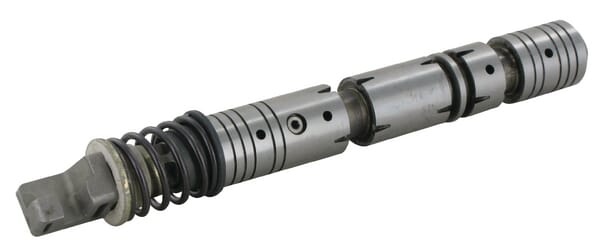

Danfoss Plunger 25 L/M 157-B-7621 PVG32157B7621
£131.78 excl.
£158.14 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000341728
Danfoss Assembly set PVAS-256/128-4/3-1/7 PVG25611187694
£99.99 excl.
£119.99 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000341679

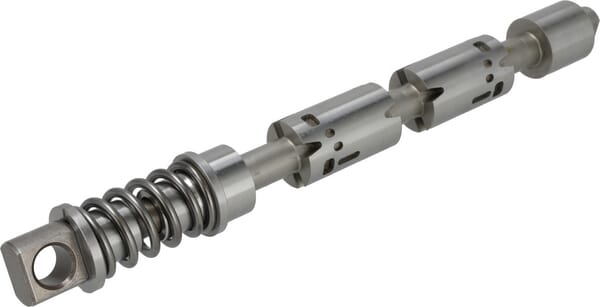

Danfoss Plunger PVG256 PVE 320 l/min PVG25611182618
£156.65 excl.
£187.98 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000331584

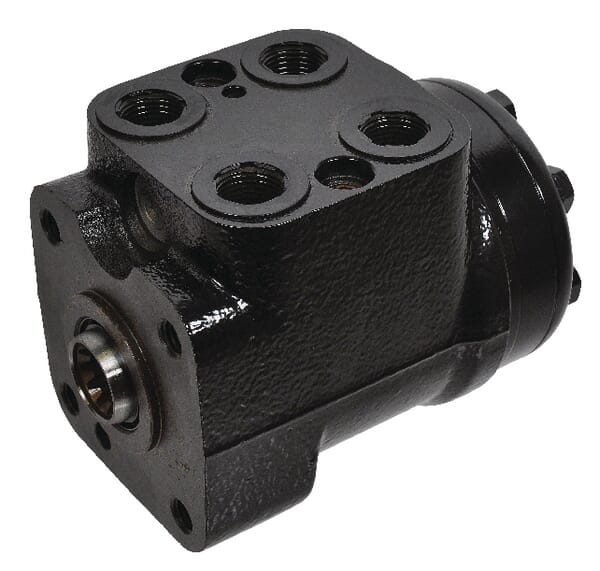

Danfoss Orbit steering unit OSPC100ON150N1173
