£1,194.93
excl. VAT
£1,433.92 incl. VAT
£1,433.92
incl. VAT
£1,194.93 excl. VAT
Free shipping
Out of stock — Backorder available
Usually ships within 3–8 weeks.
Product details
| Displacement | 200 cm³/rev |
|---|---|
| Flange shape | Wheel |

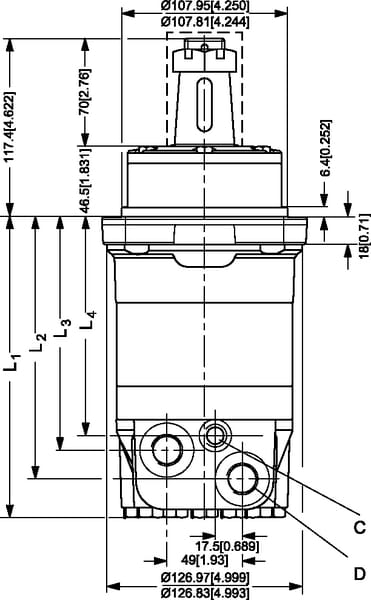

| L1Rotor length | 170.7 mm |
| L2Main second port center to front flange distance | 145.3 mm |
| L3Housing length | 126.3 mm |
| L4Drain port center to front flange distance | 116.8 mm |

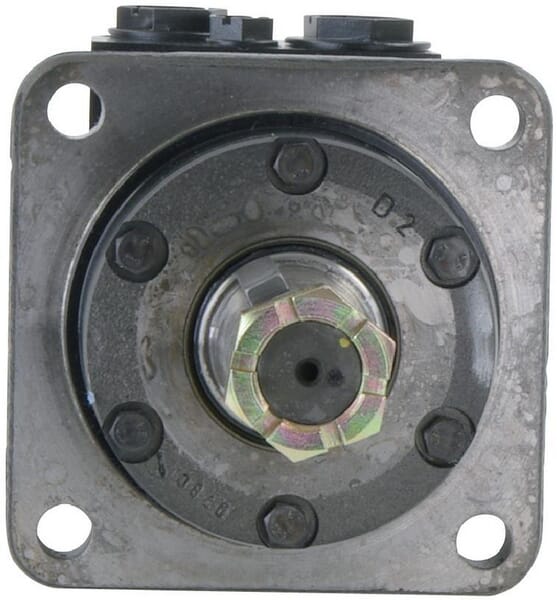

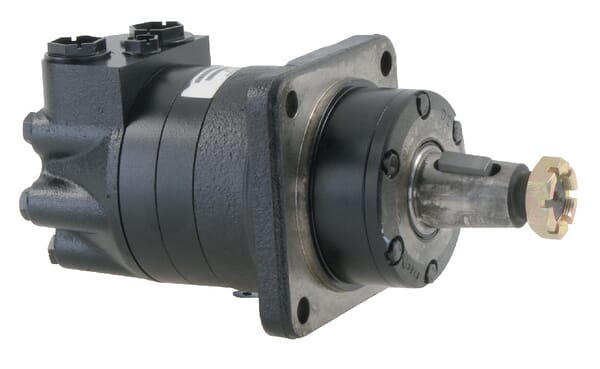

| Long description | Orbital motor offers compact construction and simple mounting. High torque and shaft load, because of shorter distance from mounting flange to the point of load application. |
| Main port thread diameter | 1-1/16 Inch |
| Main port threads per inch | 12 |
| Main port thread type | UN |
| Max. continous working pressure | 250 BAR |
| Max continuous torque | 720 N·m |
| Max. flow rate | 80 l/min |
| Max intermittend working pressure | 325 BAR |
| Max. power | 22 kW |
| Max rotation speed | 400 r/min |

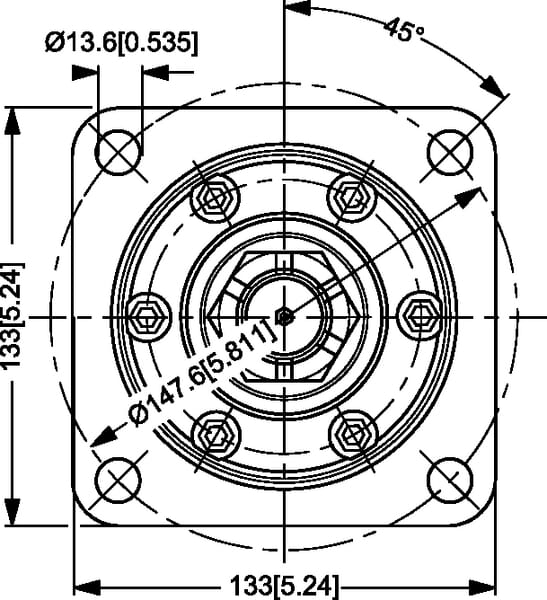

| Number of mounting holes | 4 |
| Original number equivalent | 151F6011 |
| Product details | P1 = Continuous operating pressure, P2 = Int. operating pressure, max. 10 % /min, P3 = Peak pressure |
| Sealing type | Standard |

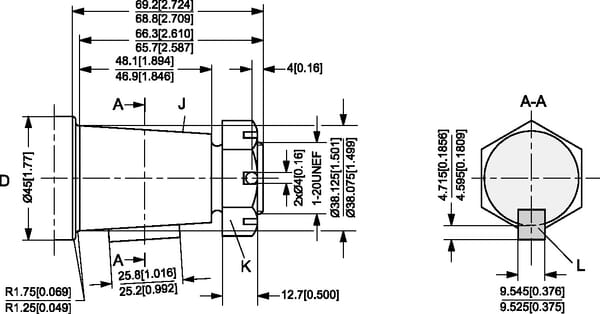

| Shaft cone size code | 1:8 |
| Shaft diameter | 38.1 mm |
| Shaft type | Tapered |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 16000 g |
| Dimensions | 440 × 230 × 170 mm |
| Dangerous goods | No |
You might also like
Free shipping
BPA000341662
Danfoss Plunger PVG256 PVE 65 l/min PVG25611177686
£156.65 excl.
£187.98 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000363066

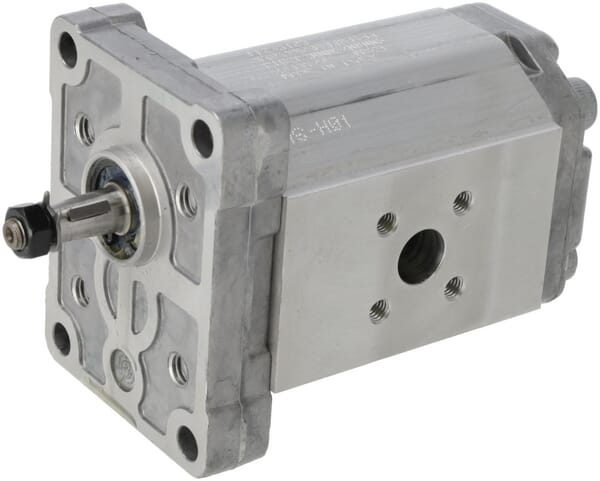

Danfoss Pump SKP1NN/010RN01BAP1B2B2 SKP1NN10RN01BA
£243.01 excl.
£291.61 incl.
In stock
Expected to ship on Friday 18 September
Free shipping
BPA000341866

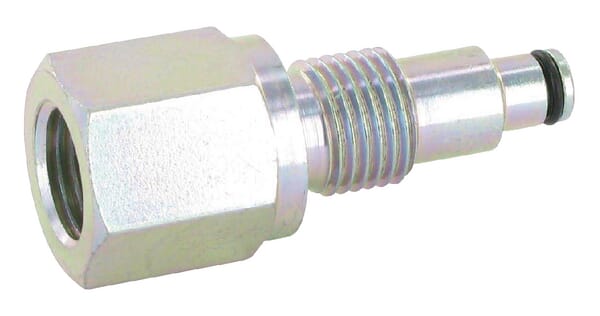

Danfoss Plug PVPC 157B5400 PVG32157B5400
£116.44 excl.
£139.73 incl.
In stock
Expected to ship on Monday 21 September
Free shipping
BPA000245804

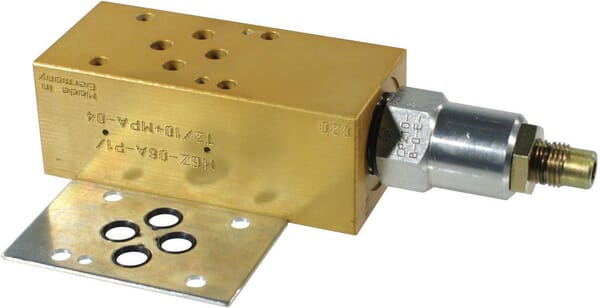

Danfoss Pressure relief valve CP2001B0 CP2001M03018
£258.96 excl.
£310.75 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000246136

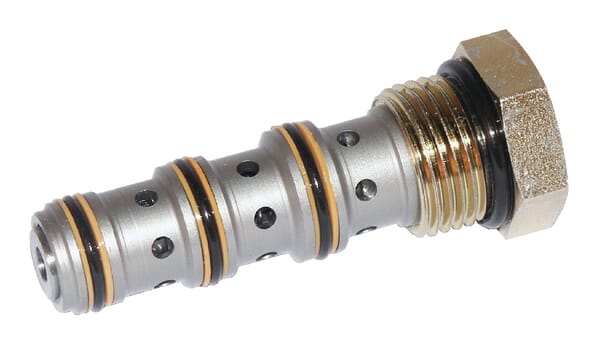

Danfoss Flow divider CP340-1-B-0-33 CP3401B033
£77.62 excl.
£93.14 incl.
In stock
Expected to ship on Friday 18 September
BPA000341928
Danfoss Plunger 100 L/M 157-B-7504 PVG32157B7504
£40.02 excl.
£48.02 incl.
Backorder available
Usually ships within 3–8 weeks
Recently viewed
BPA000072497
FAG Spherical roller bearing 40x80x23mm INA/FAG 22208E1C3
£59.16 excl.
£70.99 incl.
In stock
Expected to ship on Friday 18 September
BPA000396045
Burnett & Hillman Adaptor M/F 1/4 BSP M10x1 VRBM0410
£16.41 excl.
£19.69 incl.
In stock
Expected to ship on Friday 18 September
BPA000329998
Kramp O-ring 50.47x2.62mm 70 shore 10x OR5047262P010
£2.32 excl.
£2.78 incl.
In stock
Expected to ship on Monday 21 September
BPA000210393
Kverneland Hydraulic hose 0bo1snx6000 dn6 dkol A100035561
£0.44 excl.
£0.53 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000304577
Kramp Work light bar LED, 105W, 8820lm, rectangular, 12/24V, white/orange, 525.5x40x54.4mm Deutsch plug, Combo, curved, 21LED's, E-BOOST LA10824
£106.35 excl.
£127.62 incl.
In stock
Expected to ship on Friday 18 September
BPA000366243
Kramp Rocker switch, I-0, off-on, 12V, 2-pin, rotary beacon SW10055KR
£15.35 excl.
£18.42 incl.
In stock
Expected to ship on Friday 18 September
BPA000195609
Kramp Hexagon socket head cap screw DIN912 M10x80 steel 12.9 9121080129B
£0.94 excl.
£1.13 incl.
In stock
Expected to ship on Friday 18 September
BPA000232612
Hallite Rod wiper ASU 32x40.6x5.3/7mm ASU3240653
£1.55 excl.
£1.86 incl.
In stock
Expected to ship on Friday 18 September
BPA000290826
Lechler Air injection hollow cone nozzle ITR 80° 015 green ceramic ITR80015
£23.23 excl.
£27.88 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000203115
Kramp Hexagon head bolt DIN933 M10x55 steel 8.8 9331055B
£0.45 excl.
£0.54 incl.
In stock
Expected to ship on Friday 18 September
BPA000296210

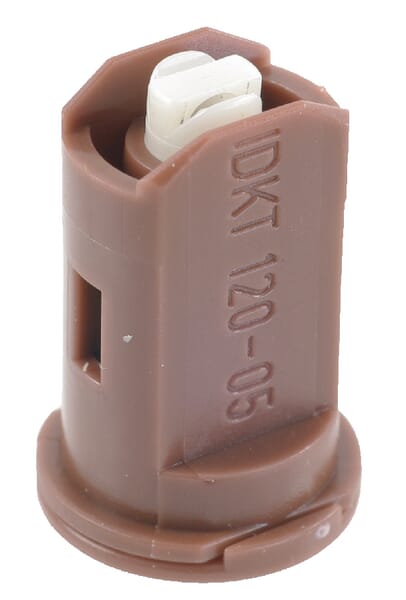

Lechler Air injection double fan nozzle IDKT 120° 05 brown ceramic IDKT12005C
