£794.38
excl. VAT
£953.26 incl. VAT
£953.26
incl. VAT
£794.38 excl. VAT
Free shipping
In stock
Expected to ship on Tuesday 22 September
Product details
| Application | Telescopic |
|---|---|
| Application range | Trailer tipping cylinder, Vehicle construction |
| Cylinder material | Steel S355J2+N |
| Details | Tenifer TF1 coating |
| DIN standard | 1629 |
| Max. capacity at 180 bar | 16.1 t |
| Max. capacity - stage 2 | 16.1 t |
| Max. piston speed | 0.5 m/s |

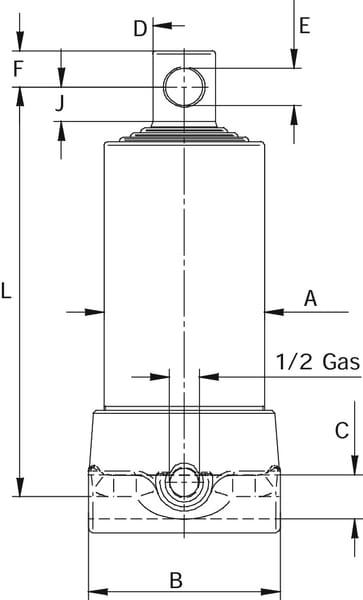

| Min. length | 695 mm |
| Mounting hole center to cylinder end distance | 30 mm |
| Mounting hole diameter - cylinder connection | 150 mm |
| Mounting type - cylinder side connection | Bore |
| Mounting type - rod side connection | Bore |
| Number of stages | 2 |
| Oil capacity | 8.3 l |
| Oil connection length | 150 mm |
| Oil connection thread diameter | M36 |
| Outside diameter | 59 mm |
| Piston surface roughness range | 0.05-0.15 µm |
| Properties | Unpainted, Low installation dimensions, Excellent running properties, Long service life |
| Sealing material | Polyurethane |
| Side shaft diameter | 36 mm |
| Stroke | 1095 mm |
| Unit | Each |
| Vickers hardness (HV) | HV5/12=500/550 |
| Weight | 42.5 kg |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 42500 g |
| Dimensions | 876 × 150 × 150 mm |
| Dangerous goods | No |
