£382.86
excl. VAT
£459.43 incl. VAT
£459.43
incl. VAT
£382.86 excl. VAT
Free shipping
In stock
Expected to ship on Tuesday 22 September
Product details

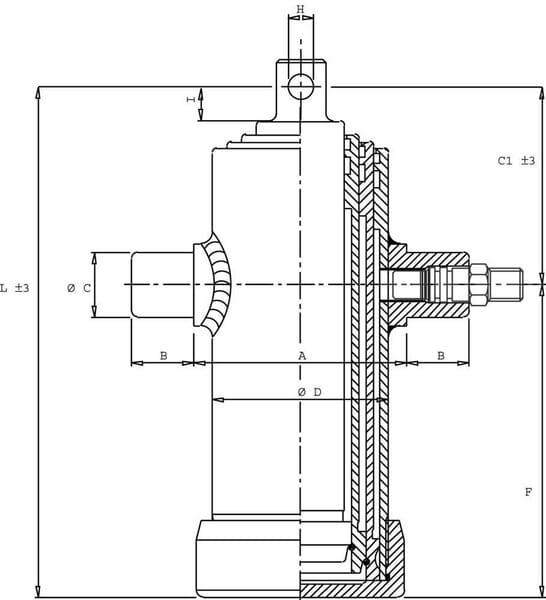

| Application | Telescopic |
|---|---|
| BOil connection length | 40 mm |
| C1Oil connection to rod end distance | 102 mm |
| CSide shaft diameter | 35 mm |
| Cylinder material | Steel S355J2+N |
| DIN standard | 1629 |
| DOutside diameter | 95 mm |
| FMounting hole center to cylinder end distance | 275 mm |
| HMounting hole diameter - rod connection | 26 mm |
| IMounting bush outside diameter | 32 mm |
| LMin. length | 377 mm |
| Max. capacity at 180 bar | 8.1 t |
| Max. capacity - stage 2 | 5.2 t |
| Max. capacity - stage 3 | 8.1 t |
| Max. piston speed | 0.5 m/s |
| Max. working pressure | 180 BAR |
| Mounting hole diameter - cylinder connection | 40 mm |
| Mounting type - cylinder side connection | Trunnion |
| Mounting type - rod side connection | Bore |
| Number of stages | 3 |
| Oil capacity | 2.5 l |
| Oil connections thread pitch | 1.50 mm |
| Oil connection thread diameter | M18 |
| Oil connection thread type | Metric |
| Piston surface roughness range | 0.05-0.15 µm |
| Product details | Unpainted, Low installation dimensions, Excellent running properties, Long service life, Tenifer TF1 coating |
| Sealing material | Polyurethane |
| Stage 1 diameter | 46 mm |
| Stage 2 diameter | 61 mm |
| Stage 3 diameter | 76 mm |
| Stroke | 790 mm |
| Unit | Each |
| Vickers hardness (HV) | HV5/12=500/550 |
| Weight | 18 kg |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 17600 g |
| Dimensions | 411 × 240 × 110 mm |
| Dangerous goods | No |
You might also like
Free shipping
BPA000373607
Di Natale-Bertelli Telescopic cylinder TC 3031 ball head TC3031
£452.88 excl.
£543.46 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000373786
Di Natale-Bertelli Seal kit TC93051
£144.36 excl.
£173.23 incl.
In stock
Expected to ship on Tuesday 22 September
Free shipping
BPA000373617
Di Natale-Bertelli Telescopic cylinder TC 3042 ball head TC3042
£506.93 excl.
£608.32 incl.
In stock
Expected to ship on Tuesday 22 September
Free shipping
BPA000373689
Di Natale-Bertelli Telescopic cylinder hole in rod TC4051F
£1,456.94 excl.
£1,748.33 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000373659
Di Natale-Bertelli Telescopic cylinder TC 4027 ball head TC4027
£874.85 excl.
£1,049.82 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000373596
Di Natale-Bertelli Telescopic cylinder, 3-stage, stroke 893mm TC2635FF
£428.48 excl.
£514.18 incl.
Backorder available
Usually ships within 3–8 weeks
Recently viewed
Free shipping
BPA000373588
Di Natale-Bertelli Telescopic cylinder 2036 / hole in rod TC2036F
£479.08 excl.
£574.90 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000243804
Dunlop Safety boots green, class S5, size 9 Wellingtons Purofort® Professional C46293343
£84.31 excl.
£84.31 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000316789
Dunlop adult Blizzard Heritage green size 36 MU0KL4536
£35.73 excl.
£42.88 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000173538

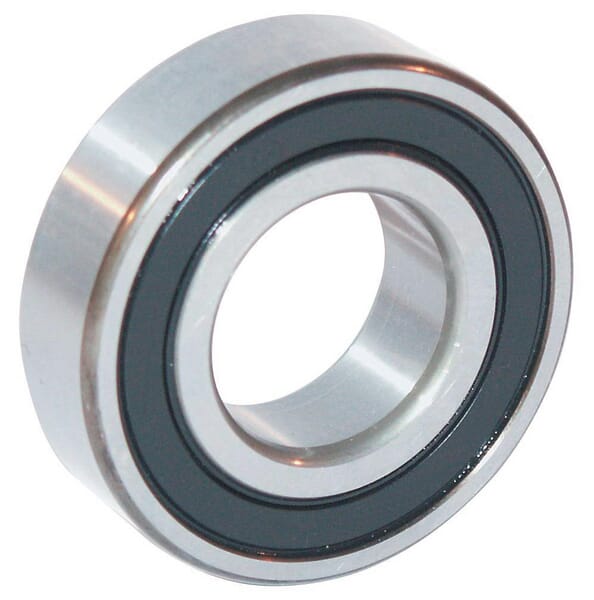

SKF Deep groove ball bearing 20x47x14mm 7500W62042RS
