£394.74
excl. VAT
£473.69 incl. VAT
£473.69
incl. VAT
£394.74 excl. VAT
Free shipping
Out of stock — Backorder available
Usually ships within 3–8 weeks.
Product details
| Application | Telescopic |
|---|---|
| Application range | Trailer tipping cylinder, Vehicle construction |

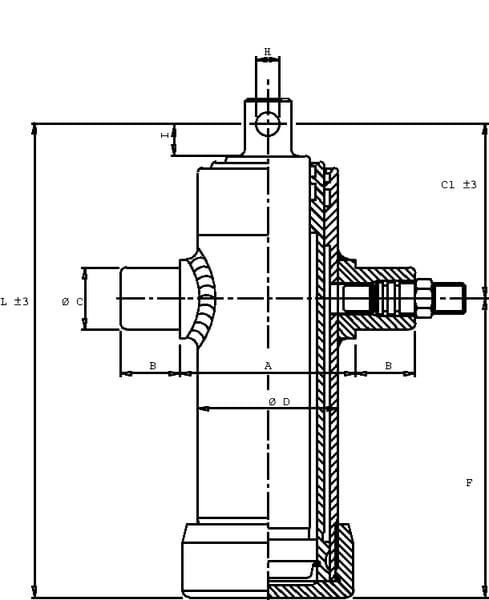

| BOil connection length | 40 mm |
| C1Oil connection to rod end distance | 105 mm |
| CSide shaft diameter | 35 mm |
| Cylinder material | Steel S355J2+N |
| Details | Tenifer TF1 coating |
| DIN standard | 1629 |
| DOutside diameter | 95 mm |
| HMounting hole diameter - rod connection | 31 mm |
| IMounting bush outside diameter | 32 mm |
| LMin. length | 515 mm |
| Long description | Telescopic cylinders 2-stage F |
| Max. capacity at 180 bar | 8.1 t |
| Max. capacity - stage 2 | 8.1 t |
| Max. piston speed | 0.5 m/s |
| Max. working pressure | 180 BAR |
| Mounting hole center to cylinder end distance | 410 mm |
| Mounting hole diameter - cylinder connection | 40 mm |
| Mounting type - cylinder side connection | Trunnion |
| Mounting type - rod side connection | Bore |
| Number of stages | 2 |
| Oil capacity | 3 l |
| Piston surface roughness range | 0.05-0.15 µm |
| Properties | Unpainted, Low installation dimensions, Excellent running properties, Long service life |
| Sealing material | Polyurethane |
| Stage 1 diameter | 61 mm |
| Stage 2 diameter | 76 mm |
| Stroke | 795 mm |
| Unit | Each |
| Vickers hardness (HV) | HV5/12=500/550 |
| Weight | 25.3 kg |
Logistics
| EAN | 8719607052566 |
|---|---|
| Unit of measure | EA |
| Weight | 25900 g |
| Dimensions | 550 × 190 × 110 mm |
| Dangerous goods | No |
You might also like
Free shipping
BPA000373836
Di Natale-Bertelli Trunnion Cradle K130 TC9K130
£163.39 excl.
£196.07 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000373659
Di Natale-Bertelli Telescopic cylinder TC 4027 ball head TC4027
£874.85 excl.
£1,049.82 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000373780

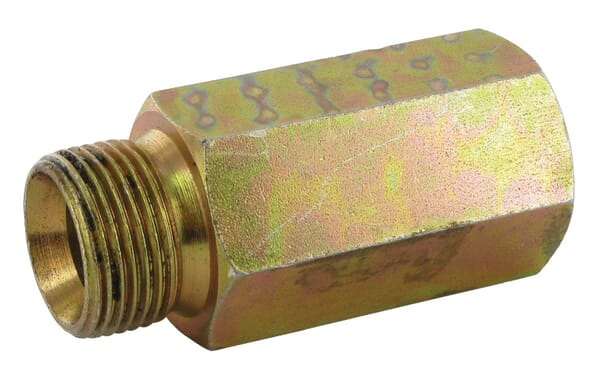

Di Natale-Bertelli Hose break valve TC9-2723 TC92723
