£482.90
excl. VAT
£579.48 incl. VAT
£579.48
incl. VAT
£482.90 excl. VAT
Free shipping
In stock
Expected to ship on Tuesday 22 September
Product details
| Application | Telescopic |
|---|---|
| Application range | Trailer tipping cylinder, Vehicle construction |
| BOil connection length | 40 mm |
| C1Oil connection to rod end distance | 142 mm |
| CSide shaft diameter | 35 mm |
| Cylinder material | Steel S355J2+N |
| Details | Tenifer TF1 coating |
| DIN standard | 1629 |
| DOutside diameter | 95 mm |
| HMounting hole diameter - rod connection | 45 mm |
| IMounting bush outside diameter | 112 mm |
| LMin. length | 452 mm |
| Long description | Telescopic cylinders 3-stage |
| Max. capacity at 180 bar | 8.1 t |
| Max. capacity - stage 2 | 5.2 t |
| Max. capacity - stage 3 | 8.1 t |
| Max. piston speed | 0.5 m/s |
| Max. working pressure | 180 BAR |
| Mounting hole center to cylinder end distance | 310 mm |
| Mounting hole diameter - cylinder connection | 40 mm |
| Mounting type - cylinder side connection | Trunnion |
| Mounting type - rod side connection | Ball |
| Number of stages | 3 |
| Oil capacity | 2.8 l |
| Oil connections thread pitch | 1.50 mm |
| Oil connection thread diameter | M18 |
| Oil connection thread type | Metric |
| Piston surface roughness range | 0.05-0.15 µm |
| Properties | Unpainted, Low installation dimensions, Excellent running properties, Long service life |
| Sealing material | Polyurethane |
| Stage 1 diameter | 46 mm |
| Stage 2 diameter | 61 mm |
| Stage 3 diameter | 76 mm |
| Stroke | 893 mm |
| Unit | Each |
| Vickers hardness (HV) | HV5/12=500/550 |
| Weight | 21 kg |
Logistics
| EAN | 8719607044202 |
|---|---|
| Unit of measure | EA |
| Weight | 21000 g |
| Dimensions | 480 × 230 × 110 mm |
| Dangerous goods | No |
You might also like
BPA000379507
Di Natale-Bertelli Spring for VFCTS12 VFCTS9VEER
£11.44 excl.
£13.73 incl.
In stock
Expected to ship on Tuesday 22 September
Free shipping
BPA000373588
Di Natale-Bertelli Telescopic cylinder 2036 / hole in rod TC2036F
£479.08 excl.
£574.90 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000373758
Di Natale-Bertelli Screw in adaptor 1/2" TC9-08 TC908
£7.98 excl.
£9.58 incl.
In stock
Expected to ship on Tuesday 22 September
Free shipping
BPA000373826
Di Natale-Bertelli Seal kit Z5 diameter 45-diameter 105 TC981323
£139.34 excl.
£167.21 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000373674
Di Natale-Bertelli Telescopic cylinder TC 4042 ball head TC4042
£893.67 excl.
£1,072.40 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000373789

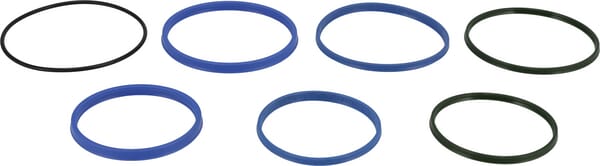

Di Natale-Bertelli Seal kit 4023 EN TC 4027 TC94023
