£618.91
excl. VAT
£742.69 incl. VAT
£742.69
incl. VAT
£618.91 excl. VAT
Free shipping
Out of stock — Backorder available
Usually ships within 3–8 weeks.
Product details
| AMin. mounting holes distance | 150 mm |
|---|---|
| Application | Telescopic |
| Application range | Trailer tipping cylinder, Vehicle construction |
| BOil connection length | 40 mm |
| C1Oil connection to rod end distance | 152 mm |
| CSide shaft diameter | 40 mm |
| Cylinder material | Steel S355J2+N |
| Details | Tenifer TF1 coating |
| DIN standard | 1629 |
| DOutside diameter | 124 mm |
| FMounting hole center to cylinder end distance | 365 mm |
| HMounting hole diameter - rod connection | 55 mm |
| IMounting bush outside diameter | 95 mm |
| LMin. length | 517 mm |
| Long description | Telescopic cylinders 3-stage |
| Max. capacity | 11 t |
| Max. capacity at 180 bar | 16.1 t |
| Max. capacity - stage 2 | 10.9 t |
| Max. capacity - stage 3 | 16.1 t |
| Max. piston speed | 0.5 m/s |
| Max. working pressure | 180 BAR |
| Mounting hole diameter - cylinder connection | 40 mm |
| Mounting type - cylinder side connection | Trunnion |
| Mounting type - rod side connection | Ball |
| Number of stages | 3 |
| Oil capacity | 6.6 l |
| Oil connections thread pitch | 1.50 mm |
| Oil connection thread diameter | M18 |
| Oil connection thread type | Metric |
| Piston surface roughness range | 0.05-0.15 µm |
| Properties | Unpainted, Low installation dimensions, Excellent running properties, Long service life |
| Sealing material | Polyurethane |
| Stage 1 diameter | 68 mm |
| Stage 2 diameter | 88 mm |
| Stage 3 diameter | 107 mm |
| Stroke | 1043 mm |
| Unit | Each |
| Vickers hardness (HV) | HV5/12=500/550 |
| Weight | 39 kg |
Compatible accessories
Parts and components that work with this product.
TC9040
Di Natale-Bertelli Mounting bracket 40mm TC9040
£27.17 excl.
£32.60 incl.
TC908

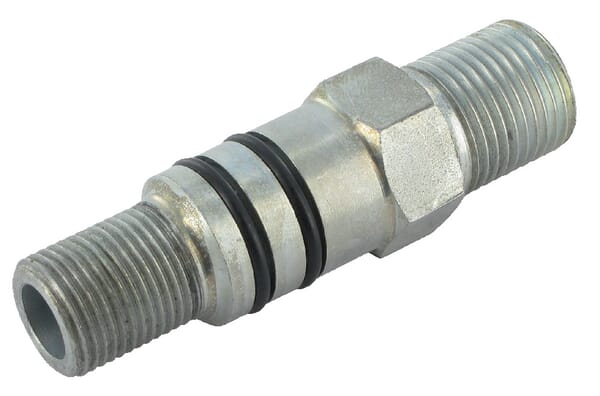

Di Natale-Bertelli Screw in adaptor 1/2" TC9-08 TC908
£7.98 excl.
£9.58 incl.
TC93124
Di Natale-Bertelli Trunnion cradle TC 9-3124 TC93124
£146.66 excl.
£175.99 incl.
TC9865
Di Natale-Bertelli Hose break valve TC65 L upto D50 TC9865
£75.94 excl.
£91.13 incl.
TC9M1812L
Di Natale-Bertelli Fitting M18-12L TC9M1812L
£7.12 excl.
£8.54 incl.
TC9M1815L
Di Natale-Bertelli Fitting M18-15L TC9M1815L
£6.70 excl.
£8.04 incl.
TC9M1818L

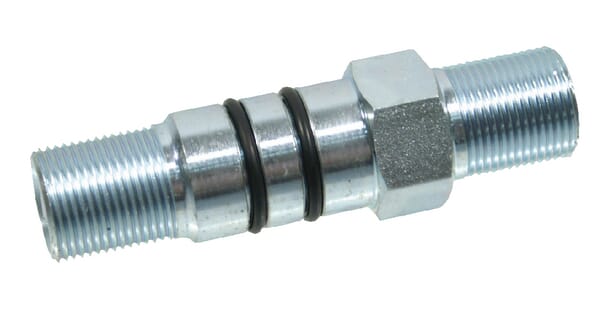

Di Natale-Bertelli Male stud coupling M18-18L TC9M1818L
£6.77 excl.
£8.12 incl.
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 41860 g |
| Dimensions | 540 × 280 × 150 mm |
| Dangerous goods | No |
You might also like
Free shipping
BPA000373944

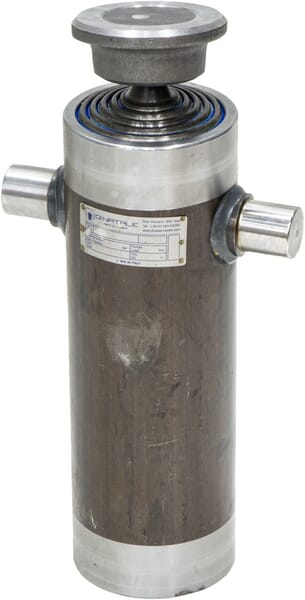

Di Natale-Bertelli Telescopic Ram ø130x1462 TCK54361S
£691.09 excl.
£829.31 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000373756

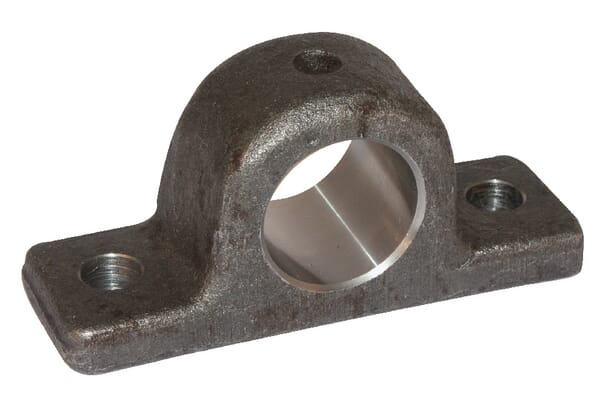

Di Natale-Bertelli Mounting bracket 55mm TC9055
£45.64 excl.
£54.77 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000373642

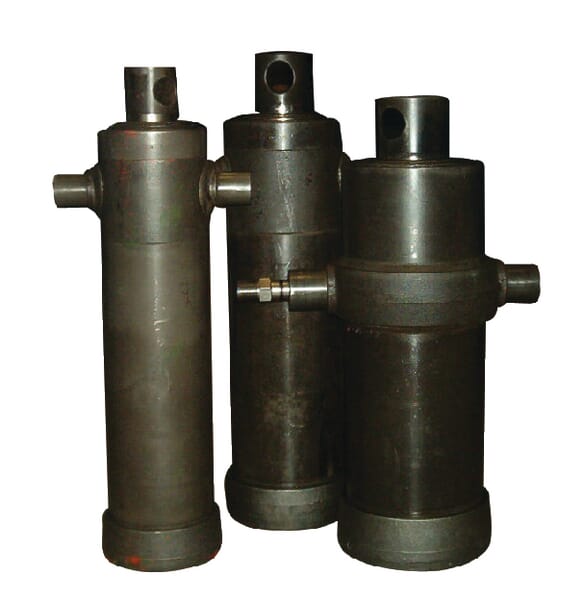

Di Natale-Bertelli Telescopic cylinder hole in rod TC3056F
£1,168.56 excl.
£1,402.27 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000373832

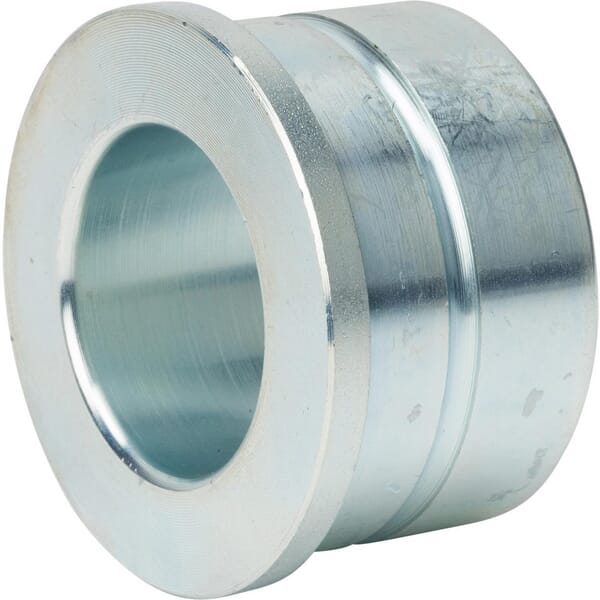

Di Natale-Bertelli Bushing TC999031
£10.89 excl.
£13.07 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000373663
Di Natale-Bertelli Telescopic cylinder TC 4033 ball head TC4033
£580.51 excl.
£696.61 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000373633

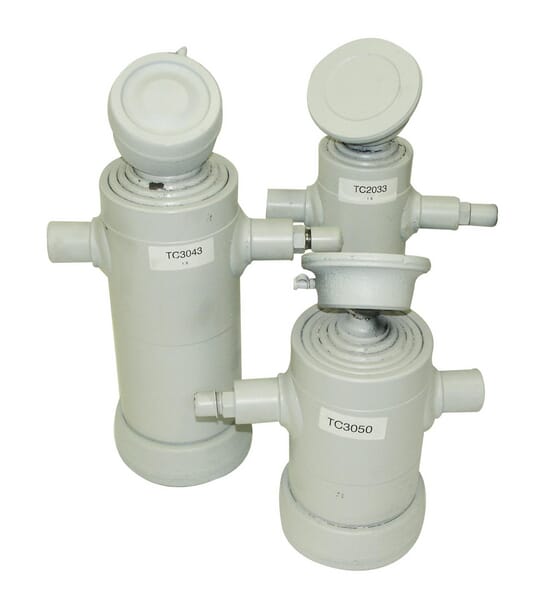

Di Natale-Bertelli Telescopic cylinder TC 3050 ball head TC3050
