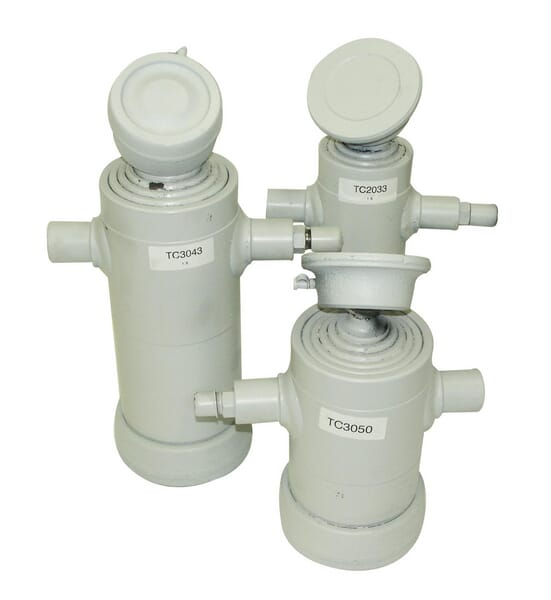

Product details

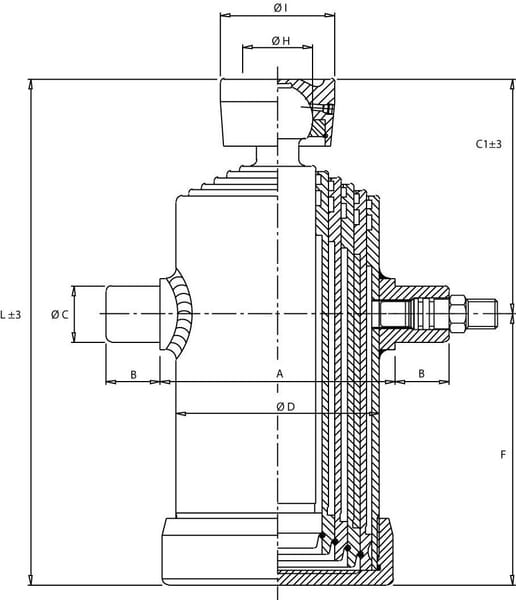

| AMin. mounting holes distance | 210 mm |
|---|---|
| Application | Telescopic |
| Application range | Trailer tipping cylinder, Vehicle construction |
| BOil connection length | 45 mm |
| C1Oil connection to rod end distance | 245 mm |
| CSide shaft diameter | 50 mm |
| Cylinder material | Steel S355J2+N |
| Details | Tenifer TF1 coating |
| DIN standard | 1629 |
| DOutside diameter | 170 mm |
| FMounting hole center to cylinder end distance | 370 mm |
| HMounting hole diameter - rod connection | 65 mm |
| IMounting bush outside diameter | 107 mm |
| LMin. length | 615 mm |
| Long description | Telescopic cylinders 5/6-stage |
| Max. capacity | 16 t |
| Max. capacity at 180 bar | 29.7 t |
| Max. capacity - stage 2 | 10.9 t |
| Max. capacity - stage 3 | 16.1 t |
| Max. capacity - stage 4 | 22.4 t |
| Max. capacity - stage 5 | 29.7 t |
| Max. piston speed | 0.5 m/s |
| Max. working pressure | 180 BAR |
| Mounting hole diameter - cylinder connection | 45 mm |
| Mounting type - cylinder side connection | Trunnion |
| Mounting type - rod side connection | Ball |
| Number of stages | 5 |
| Oil capacity | 20.6 l |
| Oil connections thread pitch | 1.50 mm |
| Oil connection thread diameter | M22 |
| Oil connection thread type | Metric |
| Piston surface roughness range | 0.05-0.15 µm |
| Properties | Unpainted, Low installation dimensions, Excellent running properties, Long service life |
| Sealing material | Polyurethane |
| Stage 1 diameter | 68 mm |
| Stage 2 diameter | 88 mm |
| Stage 3 diameter | 107 mm |
| Stage 4 diameter | 126 mm |
| Stage 5 diameter | 145 mm |
| Stroke | 2120 mm |
| Unit | Each |
| Vickers hardness (HV) | HV5/12=500/550 |
| Weight | 86.5 kg |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 91800 g |
| Dimensions | 630 × 350 × 200 mm |
| Dangerous goods | No |
