£1,307.18
excl. VAT
£1,568.62 incl. VAT
£1,568.62
incl. VAT
£1,307.18 excl. VAT
Free shipping
Out of stock — Backorder available
Usually ships within 3–8 weeks.
Product details
| Application | Telescopic |
|---|---|
| Application range | Trailer tipping cylinder, Vehicle construction |
| Benefits | High corrosion resistance |

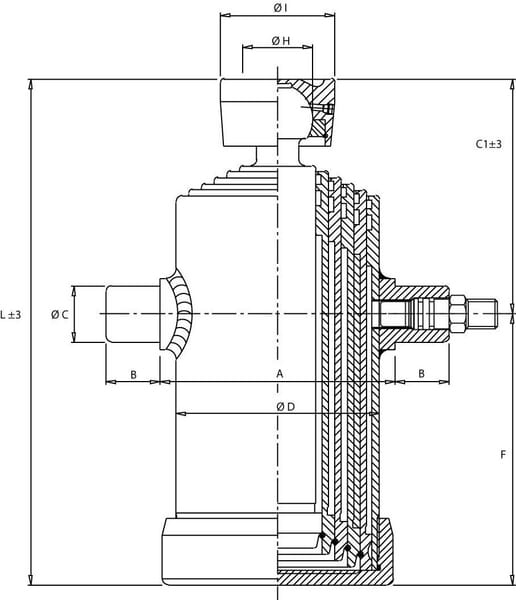

| BOil connection length | 45 mm |
| C1Oil connection to rod end distance | 150 mm |
| CSide shaft diameter | 50 mm |
| Cylinder material | Steel S355J2+N |
| Details | Tenifer TF1 coating |
| DIN standard | 1629 |
| DOutside diameter | 190 mm |
| FMounting hole center to cylinder end distance | 145 mm |
| HMounting hole diameter - rod connection | 45 mm |
| IMounting bush outside diameter | 112 mm |
| LMin. length | 295 mm |
| Max. capacity at 180 bar | 38.4 t |
| Max. piston speed | 0.5 m/s |
| Max. working pressure | 180 BAR |
| Mounting hole diameter - cylinder connection | 45 mm |
| Mounting thread diameter - cylinder connection | 3/4 Inch |
| Mounting type - cylinder side connection | Trunnion |
| Mounting type - rod side connection | Ball |
| Number of stages | 8 |
| Oil capacity | 9.2 l |
| Oil connection thread type | BSP |
| Piston surface roughness range | 0.05-0.15 µm |
| Properties | Unpainted, Low installation dimensions, Excellent running properties, Long service life |
| Sealing material | Polyurethane |
| Stage 1 diameter | 46 mm |
| Stage 2 diameter | 61 mm |
| Stage 3 diameter | 76 mm |
| Stage 4 diameter | 91 mm |
| Stage 5 diameter | 107 mm |
| Stage 6 diameter | 126 mm |
| Stroke | 1000 mm |
| Unit | Each |
| Vickers hardness (HV) | HV5/12=500/550 |
| Weight | 53 kg |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 61000 g |
| Dimensions | 330 × 310 × 310 mm |
| Dangerous goods | No |
You might also like
BPA000373800
Di Natale-Bertelli Ball head coupling TC945A
£54.72 excl.
£65.66 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000373839
Di Natale-Bertelli Male stud coupling M18-18L TC9M1818L
£6.77 excl.
£8.12 incl.
In stock
Expected to ship on Tuesday 22 September
Free shipping
BPA000373682
Di Natale-Bertelli Telescopic cylinder TC 4046 eye TC4046F
£1,367.18 excl.
£1,640.62 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000373641
Di Natale-Bertelli Telescopic cylinder TC 3056 ball head TC3056
£1,205.65 excl.
£1,446.78 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000373803
Di Natale-Bertelli Seal kit series 5000 TC95010
£200.59 excl.
£240.71 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000373711

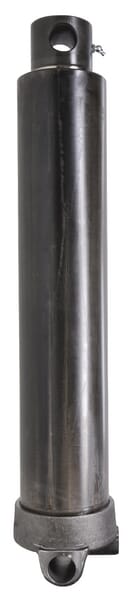

Di Natale-Bertelli Telescopic cylinder, 4-stage, stroke 1500mm TC4643F
