£483.95
excl. VAT
£580.74 incl. VAT
£580.74
incl. VAT
£483.95 excl. VAT
Free shipping
Out of stock — Backorder available
Usually ships within 3–8 weeks.
Product details
| Application | Telescopic |
|---|---|
| Cylinder material | Steel S355J2+N |
| DIN standard | 1629 |
| Includes | Cylinder |

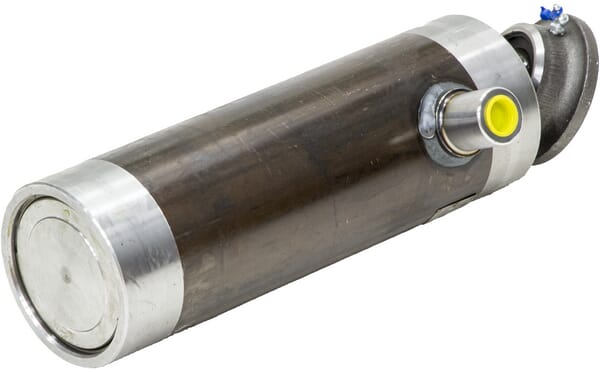

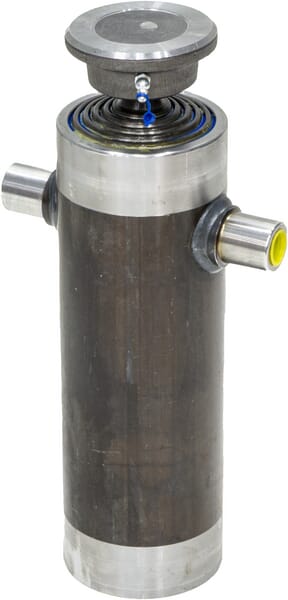

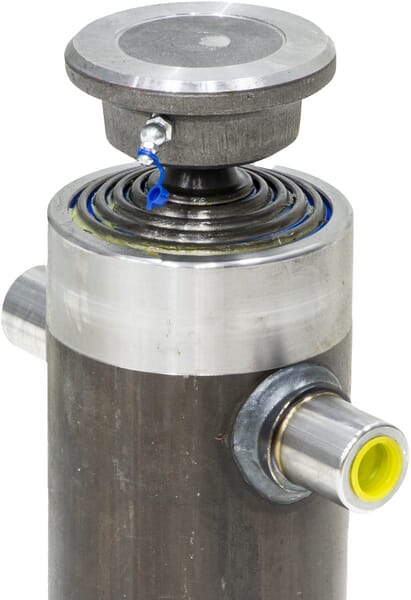

| Long description | The Telescopic Cylinders Series K, also known as Compact Ram Cylinders, are engineered to provide a long stroke while maintaining a shorter retracted length compared to standard multi-stage tipping cylinders, making them ideal for space-constrained applications. |
| Max. capacity - stage 2 | 5.2 t |
| Max. capacity - stage 3 | 8.1 t |
| Max. piston speed | 0.5 m/s |
| Max. working pressure | 200 BAR |
| Mounting type - rod side connection | Ball |
| Number of stages | 4 |
| Oil capacity | 3.6 l |
| Oil connection thread diameter | M110 |
| Oil connection to rod end distance | 152 mm |
| Piston surface roughness range | 0.05-0.15 µm |
| Product details | Kompact series, Tenifer TF1 coated plungers, Do not extend up to the end stop, Stroke limiter : VFCTS12 recommended |
| Pros | High efficiency, Light, modern design, Excellent running properties, High durability and long service life |
| Sealing material | Polyurethane |
| Stage 1 diameter | 45 mm |
| Stage 2 diameter | 60 mm |
| Stage 3 diameter | 75 mm |
| Stage 4 diameter | 90 mm |
| Stroke | 814 mm |
| Unit | Each |
| Vickers hardness (HV) | HV5/12=500/550 |
Compatible accessories
Parts and components that work with this product.
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 20000 g |
| Dimensions | 370 × 220 × 110 mm |
| Dangerous goods | No |
You might also like
Free shipping
BPA000373821
Di Natale-Bertelli Trunnion cradle TC D7-215 TC97215 TC97215
£742.64 excl.
£891.17 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000373835
Di Natale-Bertelli Trunnion Cradle K110 TC9K110
£139.68 excl.
£167.62 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000373755
Di Natale-Bertelli Mounting bracket 50mm TC9050
£33.89 excl.
£40.67 incl.
In stock
Expected to ship on Tuesday 22 September
Free shipping
BPA000373690
Di Natale-Bertelli Telescopic cylinder TC 4052 ball head TC4052
£1,831.16 excl.
£2,197.39 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000373737
Di Natale-Bertelli Telescopic cylinder 7052 S TC7052
£2,271.18 excl.
£2,725.42 incl.
Backorder available
Usually ships within 3–8 weeks
Free shipping
BPA000373823

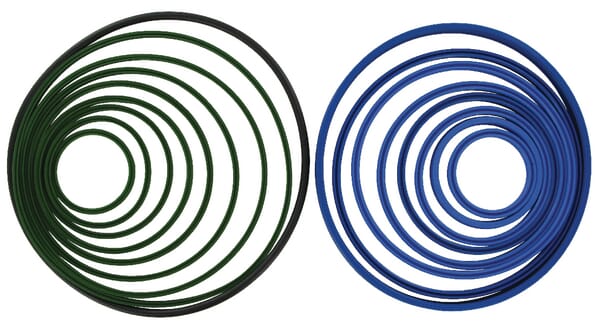

Di Natale-Bertelli Seal kit 8000 - 8001 TC98000
