£18.80
excl. VAT
£22.56 incl. VAT
£22.56
incl. VAT
£18.80 excl. VAT
In stock
Expected to ship on Tuesday 22 September
Product details
| Cone angle side 1 | 24 ° |
|---|---|
| Cone angle side 2 | 24 ° |
| Connection 1, thread diameter | M16 |
| Connection 1, thread pitch | 1.50 mm |
| Connection 1, thread type | Metric |
| Connection 1, type | Swivel nut |
| Connection 1, type - male/female | Female |
| Connection 2, thread diameter | M16 |
| Connection 2, thread pitch | 1.50 mm |
| Connection 2, thread type | Metric |
| Connection 2, type | Swivel nut |
| Connection 2, type - male/female | Female |

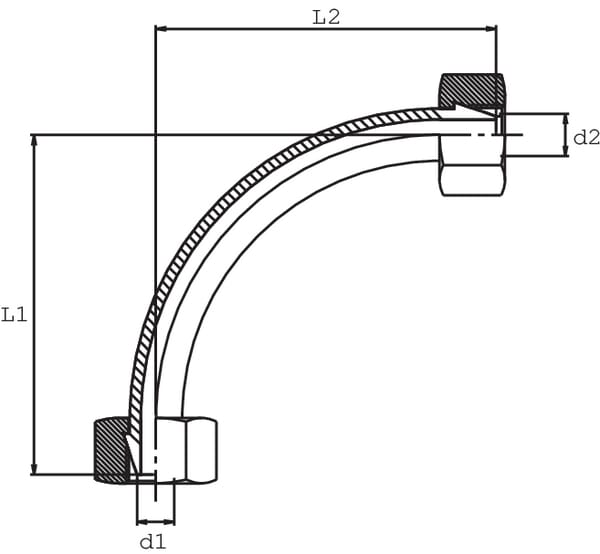

| d1Connection no 1 diameter | 10 mm |
| d2Connection 2, diameter | 10 mm |
| DIN standard | 2401 |
| Includes | coupling, Pre-assembled gland nuts |
| L1Connection 2, centre to end distance | 31 mm |
| L2Connection no 1 center to end distance | 31 mm |
| Max working pressure | 315 BAR |
| Product details | Tube connector, Viton seal available on request, CR6-free zinc plated |
| Series connection 1 | 10L |
| Shape | Elbow 90° |
| Surface treatment | Galvanised |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 64 g |
| Dimensions | 45 × 45 × 20 mm |
| Dangerous goods | No |
You might also like
BPA000287552
Dietzel Coupling 12L 18L GVO12L18L
£16.48 excl.
£19.78 incl.
In stock
Expected to ship on Thursday 24 September
BPA000301207

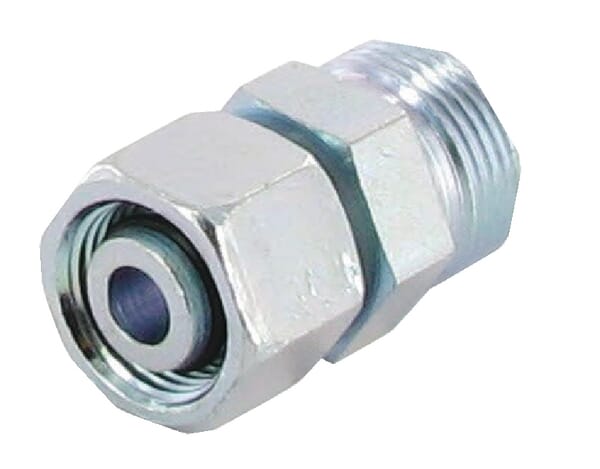

Dietzel Coupling 22L 28L KOVO22L28L
£17.95 excl.
£21.54 incl.
In stock
Expected to ship on Thursday 24 September
BPA000342648

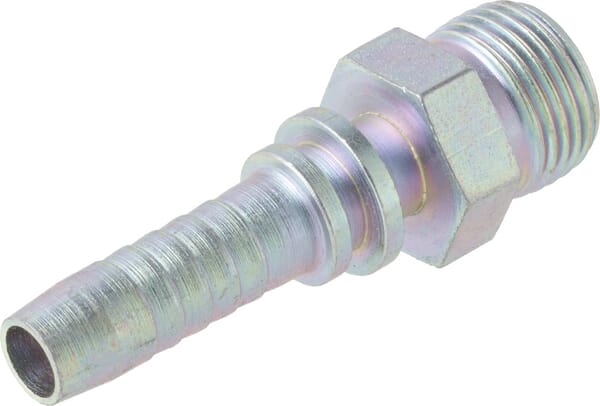

Dietzel Insert DN10-M18x1.5-10S PS1010
£11.52 excl.
£13.82 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000301184

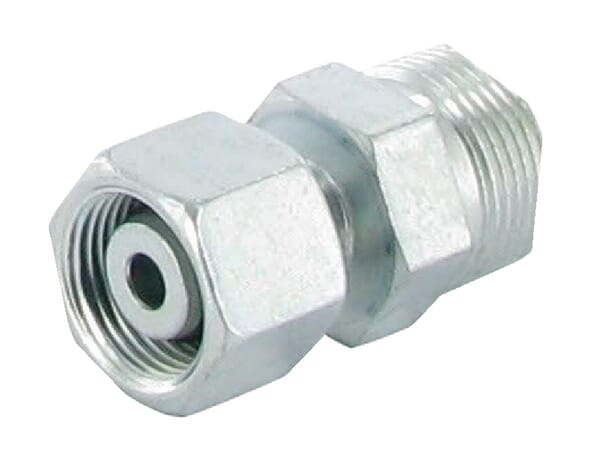

Dietzel Coupling 14S 20S KOVO14S20S
£28.31 excl.
£33.97 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000388559

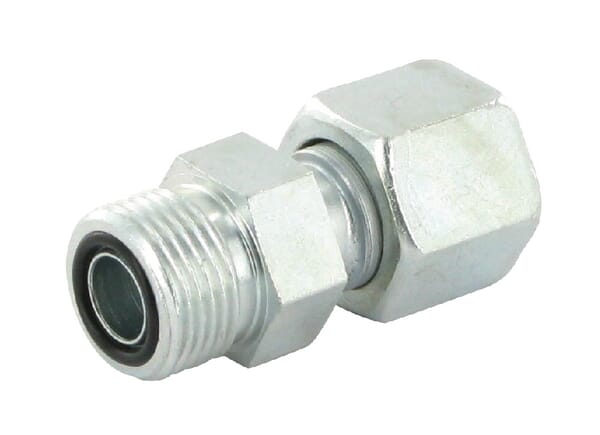

Dietzel Adaptor M/F 13/16 ORFS VNOW13
