About this product

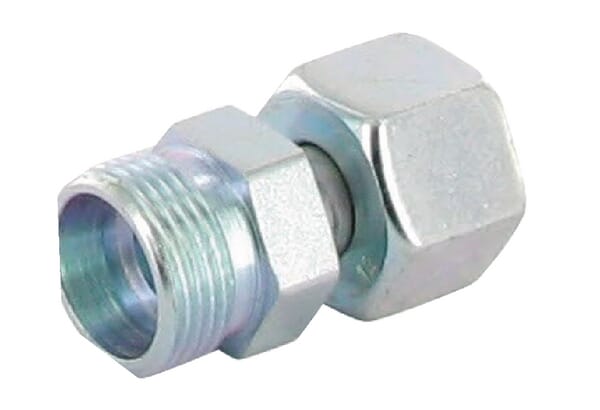

A straight reducing coupling assembly conforming to DIN 2401, supplied as a single unit. Connection 1 features an M24 × 1.50 mm metric female swivel nut with a 16 mm bore and 24° cone angle, whilst Connection 2 has an M30 × 2.00 mm metric female swivel nut with a 20 mm bore and 24° cone angle. The coupling is rated for a maximum working pressure of 400 bar. The assembly measures 45 mm in total length and includes the body, both swivel nuts, and a sealing cone with O-ring pre-installed. The coupling is finished in zinc and nickel plating and comes with a Viton seal; a CR6-free zinc-plated variant is available. The unit weighs 245 g and measures 50 mm × 40 mm × 40 mm (length × width × height). EAN information is not provided; refer to SKU BPA000287578 for inventory ordering.
Product details
| Cone angle side 1 | 24 ° |
|---|---|
| Cone angle side 2 | 24 ° |
| Connection 1, thread diameter | M24 |
| Connection 1, thread pitch | 1.50 mm |
| Connection 1, thread type | Metric |
| Connection 1, type | Swivel nut |
| Connection 1, type - male/female | Female |
| Connection 2, thread diameter | M30 |
| Connection 2, thread pitch | 2.00 mm |
| Connection 2, thread type | Metric |
| Connection 2, type | Swivel nut |
| Connection 2, type - male/female | Female |

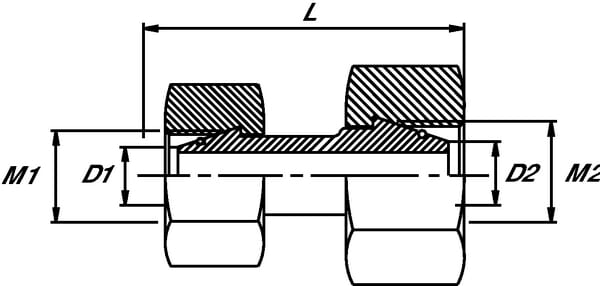

| D1Connection no 1 diameter | 16 mm |
| D2Connection 2, diameter | 20 mm |
| DIN standard | 2401 |
| Includes | Body, Swivel nuts, Sealing cone with O-ring |
| LTotal length | 45 mm |
| Max working pressure | 400 BAR |
| Product details | Pre-assembled with O-ring - Hydraulic hose, Hydraulic pipes - Viton seal available on request, CR6-free zinc plated |
| Pros | Reduced risk of leakage |
| Series connection 1 | 20S |
| Shape | Straight |
| Surface treatment | Zinc, Nickel-plated |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 245 g |
| Dimensions | 50 × 40 × 40 mm |
| Dangerous goods | No |
