£20.66
excl. VAT
£24.79 incl. VAT
£24.79
incl. VAT
£20.66 excl. VAT
In stock
Expected to ship on Thursday 24 September
About this product
A straight reducing cutting-ring coupling assembly designed to connect hydraulic lines with different bore sizes. The coupling features an M30 female swivel nut on one end and an M36 female swivel nut on the other, both with metric thread pitch 2.00 mm and 24° cone angles. It is rated for a maximum working pressure of 400 bar and conforms to DIN 2401. The assembly arrives pre-assembled with O-ring seals and includes the body, swivel nuts, and sealing cone. Surface treatment is zinc and nickel-plated, with CR6-free specification. The coupling measures 51 mm in total length and weighs 426 g. It is supplied as a single piece (EA).
Product details
| Cone angle side 1 | 24 ° |
|---|---|
| Cone angle side 2 | 24 ° |
| Connection 1, thread diameter | M30 |
| Connection 1, thread pitch | 2.00 mm |
| Connection 1, thread type | Metric |
| Connection 1, type | Swivel nut |
| Connection 1, type - male/female | Female |
| Connection 2, thread diameter | M36 |
| Connection 2, thread pitch | 2.00 mm |
| Connection 2, thread type | Metric |
| Connection 2, type | Swivel nut |
| Connection 2, type - male/female | Female |

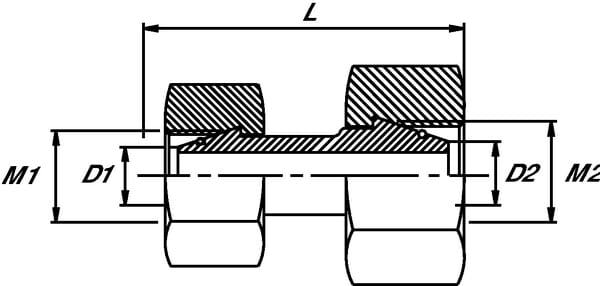

| D1Connection no 1 diameter | 20 mm |
| D2Connection 2, diameter | 25 mm |
| DIN standard | 2401 |
| Includes | Body, Swivel nuts, Sealing cone with O-ring |
| LTotal length | 51 mm |
| Max working pressure | 400 BAR |
| Product details | Pre-assembled with O-ring - Hydraulic hose, Hydraulic pipes - Viton seal available on request, CR6-free zinc plated |
| Pros | Reduced risk of leakage |
| Series connection 1 | 25S |
| Shape | Straight |
| Surface treatment | Zinc, Nickel-plated |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 426 g |
| Dimensions | 60 × 55 × 55 mm |
| Dangerous goods | No |
You might also like

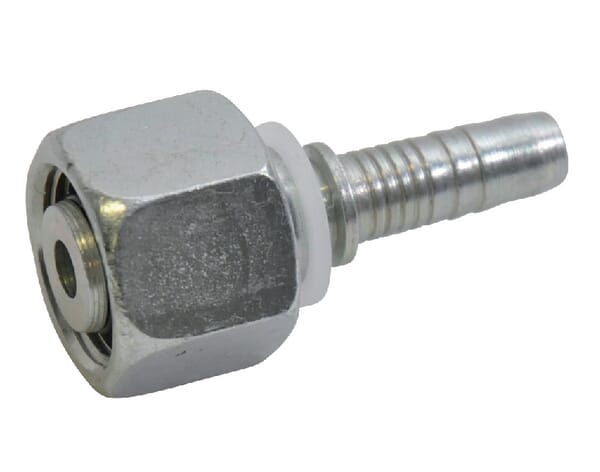

BPA000344176
Dietzel Insert DN13-M22x1.5-14S PGSO1322
£6.79 excl.
£8.15 incl.
In stock
Expected to ship on Tuesday 22 September

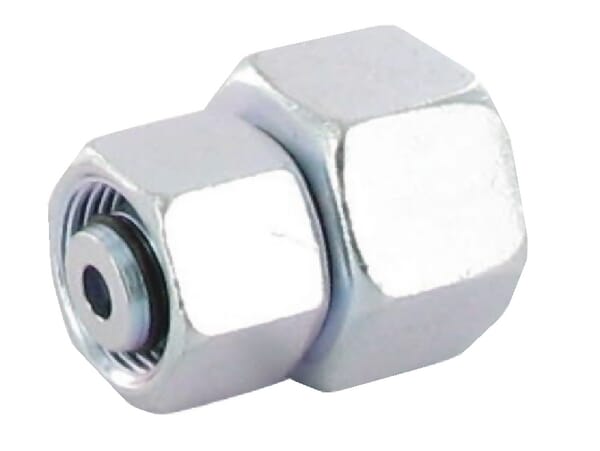

BPA000287554
Dietzel Coupling 12S 12S GVO12S12S
£8.95 excl.
£10.74 incl.
In stock
Expected to ship on Wednesday 23 September
BPA000301217
Dietzel Coupling 28L 35L KOVO28L35L
£29.95 excl.
£35.94 incl.
In stock
Expected to ship on Thursday 24 September
Free shipping

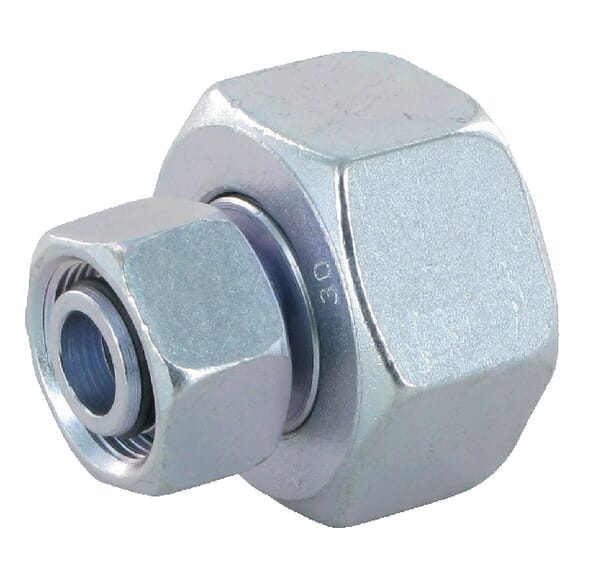

BPA000287601
Dietzel Coupling 22L 38S GVO22L38S
£210.77 excl.
£252.92 incl.
In stock
Expected to ship on Thursday 24 September

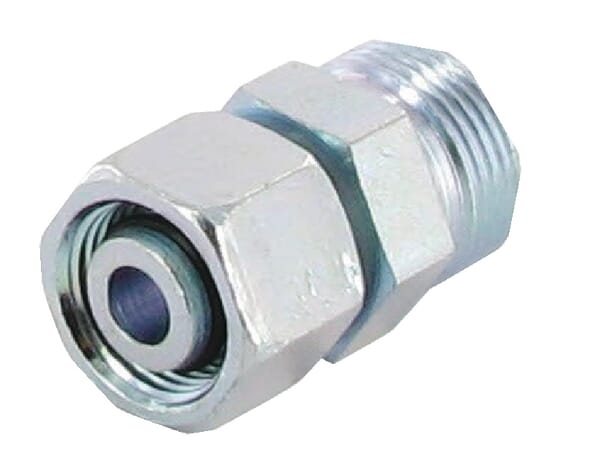

BPA000301151
