£63.85
excl. VAT
£76.62 incl. VAT
£76.62
incl. VAT
£63.85 excl. VAT
In stock
Expected to ship on Thursday 24 September
Product details
| Cone angle side 1 | 24 ° |
|---|---|
| Cone angle side 2 | 24 ° |
| Connection 1, thread diameter | M30 |
| Connection 1, thread pitch | 2.00 mm |
| Connection 1, thread type | Metric |
| Connection 1, type | Swivel nut |
| Connection 1, type - male/female | Female |
| Connection 2, thread diameter | M45 |
| Connection 2, thread pitch | 2.00 mm |
| Connection 2, thread type | Metric |
| Connection 2, type | Swivel nut |
| Connection 2, type - male/female | Female |
| D1Connection no 1 diameter | 22 mm |
| D2Connection 2, diameter | 35 mm |
| DIN standard | 2401 |
| Includes | Body, Swivel nuts, Sealing cone with O-ring |
| LTotal length | 50 mm |
| Max working pressure | 160 BAR |
| Product details | Pre-assembled with O-ring, Hydraulic hose, Hydraulic pipes, Viton seal available on request, CR6-free zinc plated |
| Pros | Reduced risk of leakage |
| Series connection 1 | 35L |
| Shape | Straight |
| Surface treatment | Zinc, Nickel-plated |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 394 g |
| Dimensions | 50 × 45 × 45 mm |
| Dangerous goods | No |
You might also like
BPA000287579
Dietzel Coupling 16S 22L GVO16S22L
£19.46 excl.
£23.35 incl.
In stock
Expected to ship on Thursday 24 September
BPA000287567
Dietzel Coupling 15L 16S GVO15L16S
£10.47 excl.
£12.56 incl.
In stock
Expected to ship on Thursday 24 September
Free shipping

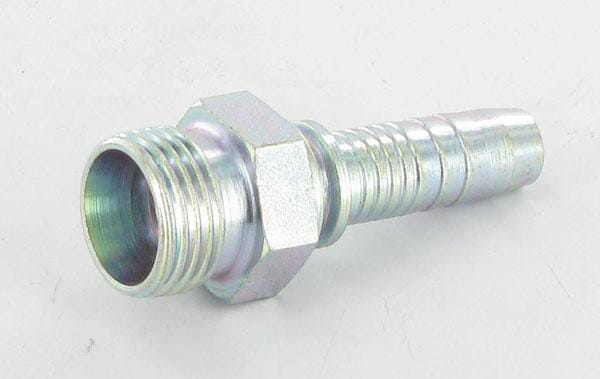

BPA000341531
Dietzel Insert DN08-M16x1.5 PRFM816
£102.43 excl.
£122.92 incl.
Backorder available
Usually ships within 3–8 weeks

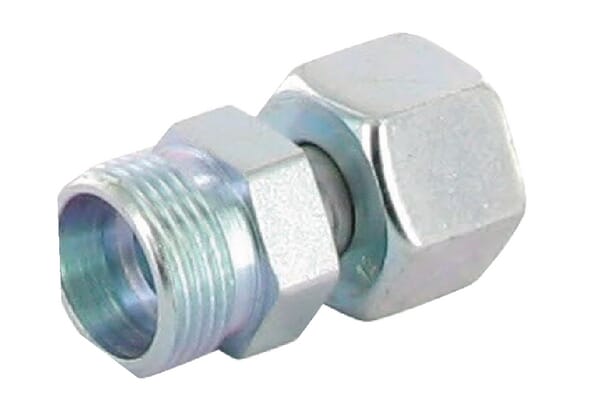

BPA000301191
