£9.90
excl. VAT
£11.88 incl. VAT
£11.88
incl. VAT
£9.90 excl. VAT
Out of stock — Backorder available
Usually ships within 3–8 weeks.
Product details
| Cone angle side 1 | 24 ° |
|---|---|
| Cone angle side 2 | 24 ° |
| Connection 1, thread diameter | M16 |
| Connection 1, thread pitch | 1.50 mm |
| Connection 1, thread type | Metric |
| Connection 1, type | Swivel nut |
| Connection 1, type - male/female | Female |
| Connection 2, thread diameter | M18 |
| Connection 2, thread pitch | 1.50 mm |
| Connection 2, thread type | Metric |
| Connection 2, type | Swivel nut |
| Connection 2, type - male/female | Female |
| D1Connection no 1 diameter | 8 mm |
| D2Connection 2, diameter | 10 mm |
| DIN standard | 2401 |
| Includes | Body, Swivel nuts, Sealing cone with O-ring |
| LTotal length | 35 mm |
| Max working pressure | 400 BAR |
| Product details | Pre-assembled with O-ring - Hydraulic hose, Hydraulic pipes - Viton seal available on request, CR6-free zinc plated |
| Pros | Reduced risk of leakage |
| Series connection 1 | 10S |
| Shape | Straight |
| Surface treatment | Zinc, Nickel-plated |
| Unit | Each |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 70 g |
| Dimensions | 37 × 25 × 25 mm |
| Dangerous goods | No |
You might also like

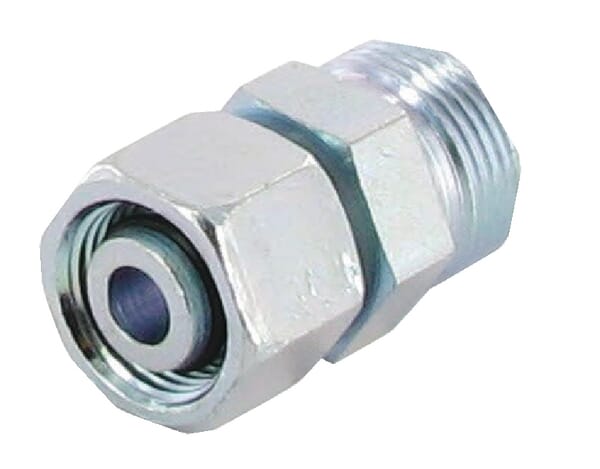

BPA000301242
Dietzel Coupling 8L 12L KOVO8L12L
£7.42 excl.
£8.90 incl.
In stock
Expected to ship on Thursday 24 September
BPA000287538
Dietzel Coupling 10L 16S GVO10L16S
£17.16 excl.
£20.59 incl.
Backorder available
Usually ships within 3–8 weeks

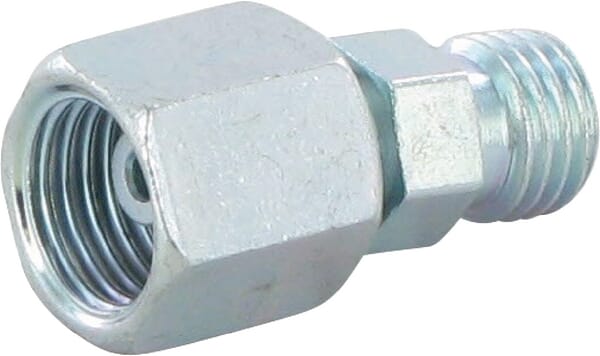

BPA000301237
