£18.02
excl. VAT
£21.62 incl. VAT
£21.62
incl. VAT
£18.02 excl. VAT
In stock
Expected to ship on Tuesday 22 September
Product details
| Application range | For universal use, Agricultural machines, Municipal services technology, Mineral oil-based fluids |
|---|---|
| Body size | 3/8 Inch |
| Connectable under pressure | No |
| Connection 1, type | Quick coupling |
| Connection 1, type - male/female | Female |
| Connection 2, diameter | 12 mm |
| Connection 2, thread diameter | M18 |
| Connection 2, thread pitch | 1.50 mm |
| Connection 2, thread type | Metric |
| Connection 2, type | Thread |
| Connection 2, type - male/female | Male |
| Connection no 1 diameter | 17.3 mm |
| ISO standard | 7241-1-A |
| Max working temperature | 100 °C |
| Min. working temperature | -30 °C |
| Outside diameter | 31 mm |
| Properties | Agricultural standard coupling, Push-pull principle, Breakaway function, Locks on both sides, Axial actuation of locking sleeve in both directions (double acting) |
| Seal material | Nitrile rubber [NBR], Teflon (PTFE) |
| Series | CPV, ANV, CNV |
| Shape | Straight |
| Size code | BG 2 |
| Surface treatment | White passivated |
| Total length | 74 mm |
| Unit | Each |
| Working pressure | 250 BAR |
Logistics
| EAN | — |
|---|---|
| Unit of measure | EA |
| Weight | 180 g |
| Dimensions | 64 × 31 × 18 mm |
| Dangerous goods | No |
You might also like
BPA000363465

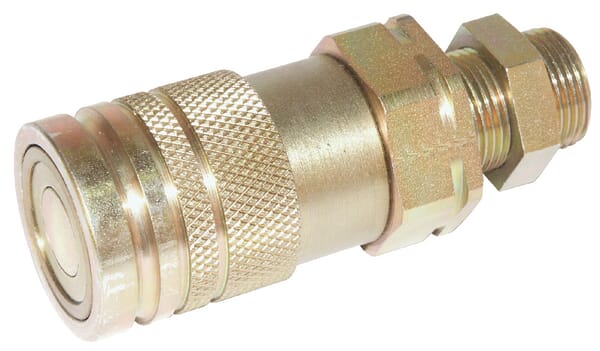

DNP QR coupling Female SKVF12N22
£45.68 excl.
£54.82 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000363392

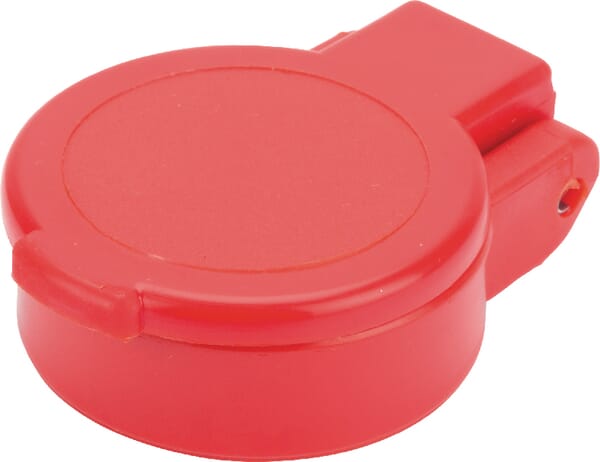

DNP Dust cap Red 1/2" SKV9F120
£3.98 excl.
£4.78 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000363157

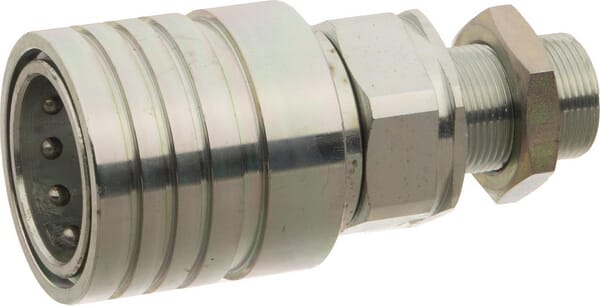

DNP Female coupling 1"-M26x1,5-18L SKPF25N26
£49.42 excl.
£59.30 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000363240

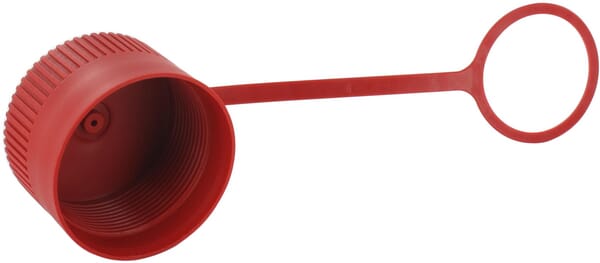

DNP Dust cap 1"1/4 Quick release SKS9F320
£8.91 excl.
£10.69 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000363352

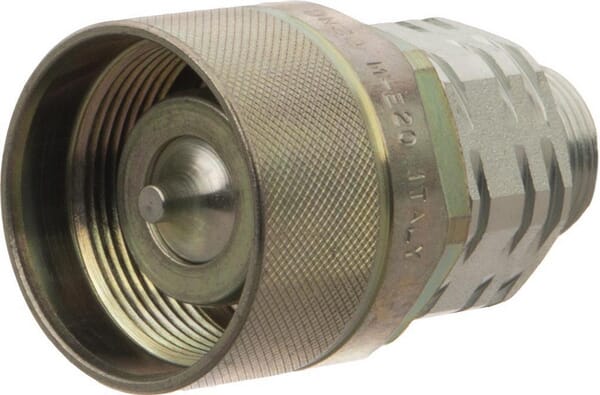

DNP Hydrulic Coupling SKSM16S24
£39.91 excl.
£47.89 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000363149

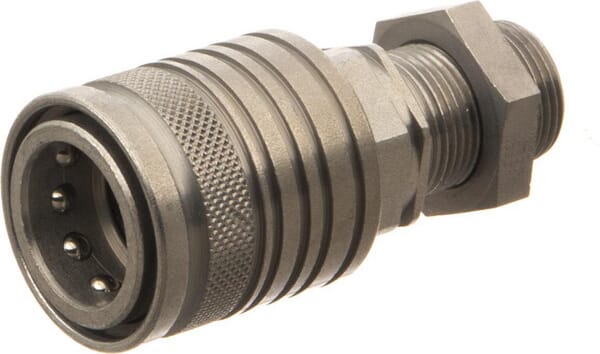

DNP Female coupling 1/2-M22x1,5-14S SKPF12T22
