Product details
| Application range | For installation in special fibre cement casing tubes / in core drills, Containers and tank farms in agriculture, water supply, heating and district heat conduction plants, swimming pools, Containers and tank farms, as well as for gas lines or in shelters, Use in shafts, sewage treatment plants, black and white tanks |
|---|---|
| Benefits | Water-tight and gas-tight sealing |

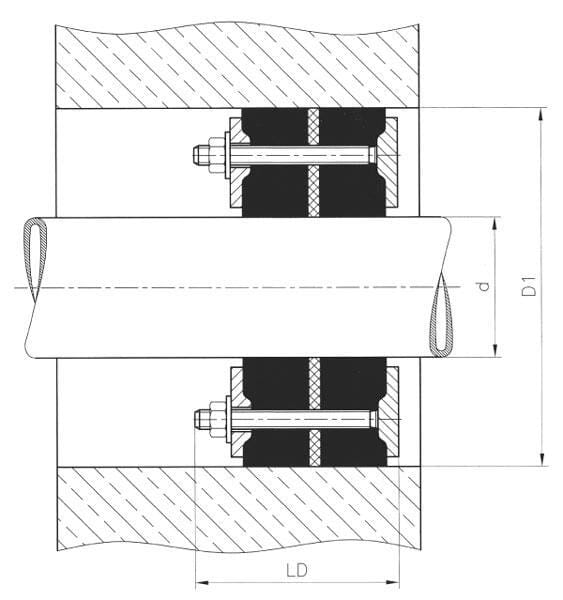

| D1Outside diameter (width) | 300 mm |
| Details | The rubber seals in their installed condition between the media tube and the casing tube or core drill and the two profiled steel rings are pressed together by tightening the nuts: the rubber securely closes the annular gap between the media tube (cable or cable conduit) and the casing tube or core drill |
| dInside diameter (width) | 207 mm |
| LDMounting length | 90 mm |
| Material | Stainless steel A4 |
| Properties | Up to D1 = 350 mm with DPS (double profile system), Asymmetric profiling of the steel rings causes special orientation of the contact pressure on the rubber seals, gently in the direction of the media line, strongly in the direction of the casing tube, Deflections of media pipes up to 8° possible, Double sealing, Can be used with pressing and non-pressing water, Recording of axial movements |
| Unit | Each |
Logistics
| EAN | 8716106745395 |
|---|---|
| Unit of measure | EA |
| Weight | 5794 g |
| Dimensions | 300 × 300 × 85 mm |
| Dangerous goods | No |
You might also like
BPA000154729

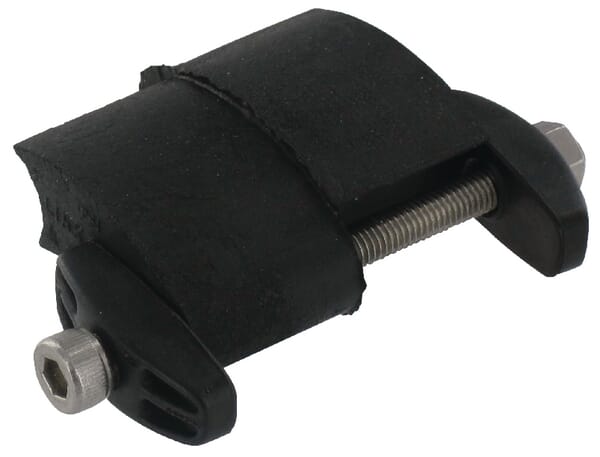

Doyma Link-Seal LS310 link chain 650031000040
