£56.93
excl. VAT
£68.32 incl. VAT
£68.32
incl. VAT
£56.93 excl. VAT
In stock
Expected to ship on Tuesday 22 September

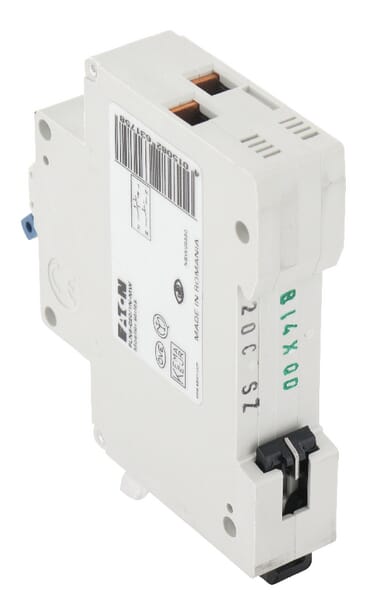

Product details
| Additional equipment possible | Yes |
|---|---|
| Ambient temperature during operating | -25.0 °C |
| Built-in depth | 60 mm |
| Concurrently switching neutral conductor | Yes |
| Connectable conductor cross section multi-wired | 1-25 mm² |
| Connectable conductor cross section solid-core | 1-25 mm² |
| Current limiting class | 3 |
| Explosion-proof | No |
| Flush-mounted installation | No |
| Frequency | 50-60 Hz |
| Insulation class | 20 |
| Manufacturer Product ID | 263175 |
| Number of poles | 2 |
| Number of protected poles | 1 |
| Over voltage category | 3 |
| Pollution degree | 2 |
| Power loss | 4.9 W |
| Rated current | 20 A |
| Rated impulse withstand voltage Uimp | 4 V |
| Rated insulation voltage Ui | 440 V |
| Rated short-circuit breaking capacityat 230 V | 0 kA |
| Rated short-circuit breaking capacityat 400 V | 0 kA |
| Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V | 6 kA |
| Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V | 6 kA |
| Rated voltage | 230 V |
| Release characteristic | C |
| Technical info | The Xpole circuit breakers from Moeller Electric program consists of a number of different types of circuit-breakers:, PLS4 series: nominal switching capacity 4.5 kA (IEC / EN 60898) C characteristic,, PLN6 series: nominal switching capacity 6 kA (IEC / EN 60898) B and C characteristic,, PLS6 series: nominal switching capacity 6 kA (IEC / EN 60898) B and C characteristic, PLSM series: nominal switching capacity 10 kA (IEC / EN 60898) B, C and D characteristic,, PLHT series: nominal switching capacity to 25 kA (IEC / EN 60947-2) C and D characteristic., Obviously the above series is also a wide range of accessories available, such as auxiliary contacts |
| Unit | Each |
| Voltage type | AC |
| Width in number of modular spacings (mm) | 1 mm |
Logistics
| EAN | 4015082631758 |
|---|---|
| Unit of measure | EA |
| Weight | 114 g |
| Dimensions | 85 × 74 × 18 mm |
| Dangerous goods | No |
You might also like
BPA000308388

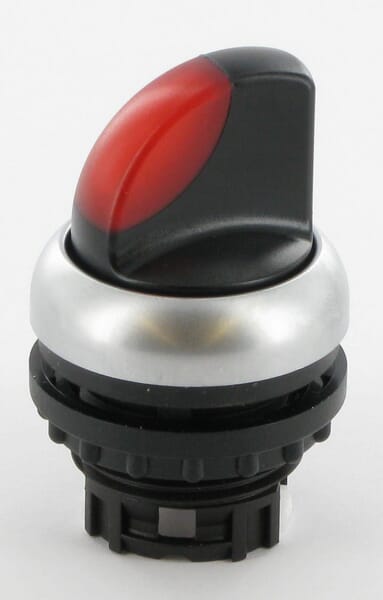

Eaton Selector switch red M22WRLKR
£30.19 excl.
£36.23 incl.
In stock
Expected to ship on Tuesday 22 September
BPA000247592

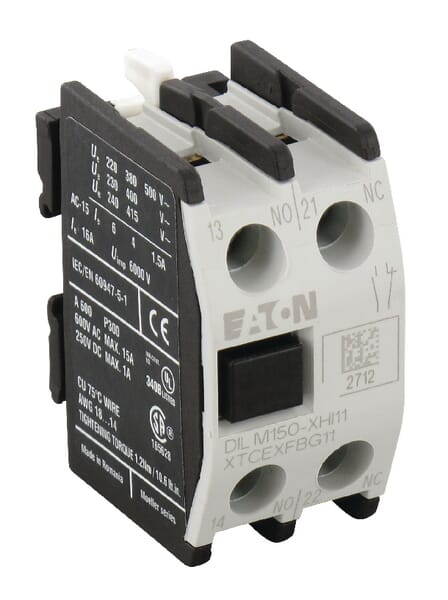

Eaton Top mount.aux.contact 1NO/1NC DILM150XHI11
£16.69 excl.
£20.03 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000247560

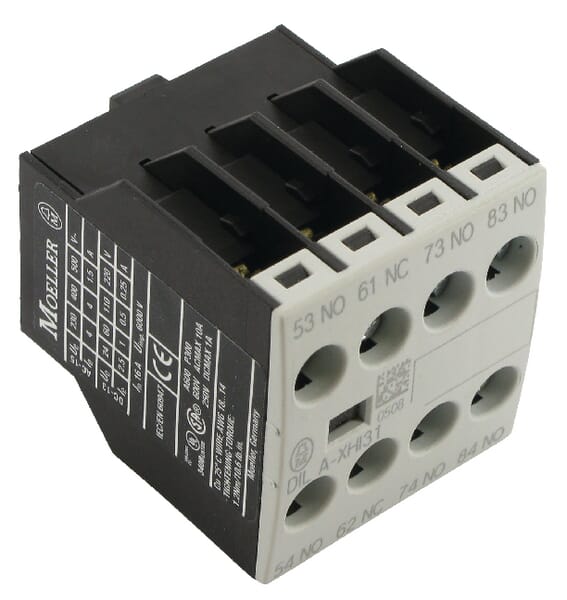

Eaton Auixilary contact modules DILAXHI31
£28.09 excl.
£33.71 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000247579

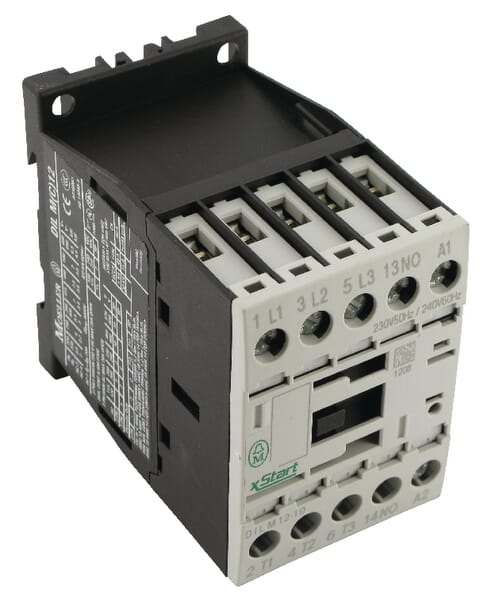

Eaton Contacter 12A 5,5kW DILM1210230VAC
£75.65 excl.
£90.78 incl.
In stock
Expected to ship on Tuesday 22 September
Free shipping
BPA000331833

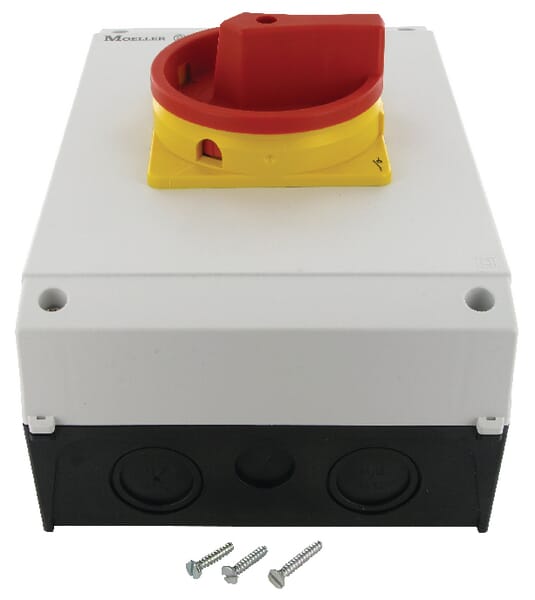

Eaton Rotary switch 3P, 25A P125I2SVBHI11
£149.09 excl.
£178.91 incl.
Backorder available
Usually ships within 3–8 weeks
BPA000403067

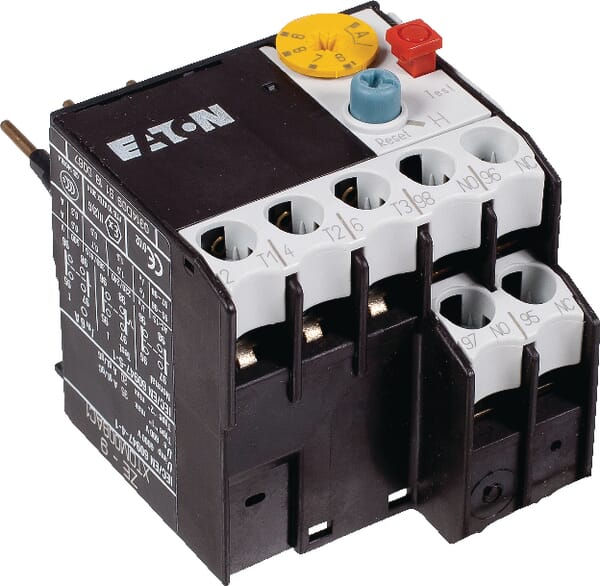

Eaton Thermal relay ZE96090
