£53.36
excl. VAT
£64.03 incl. VAT
£64.03
incl. VAT
£53.36 excl. VAT
Out of stock — Backorder available
Usually ships within 3–8 weeks.

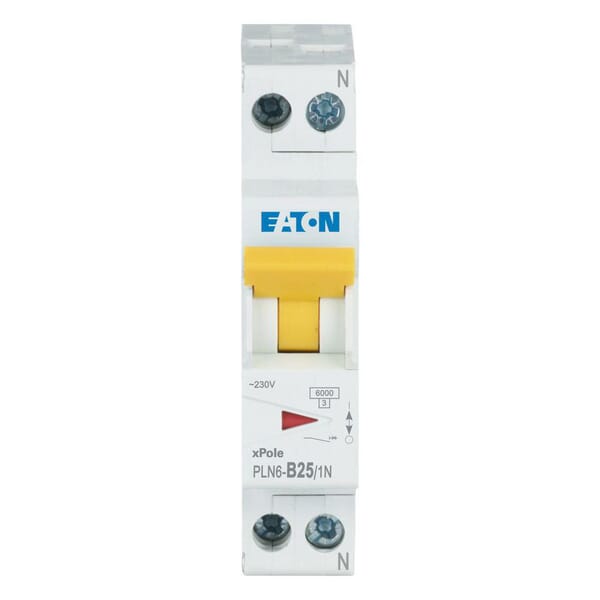

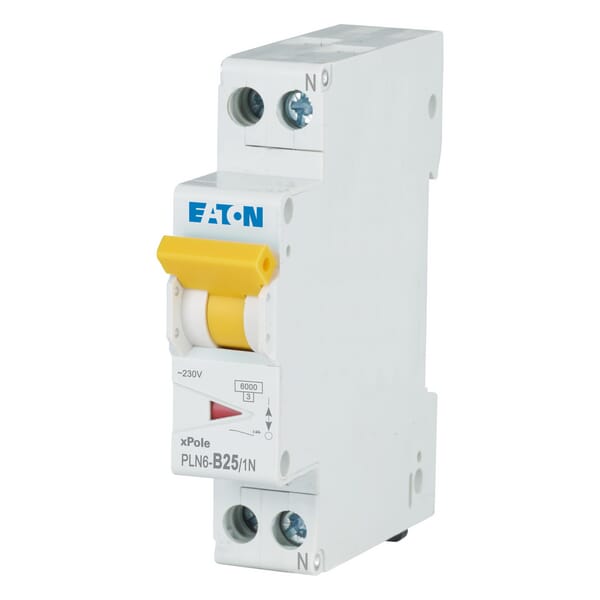

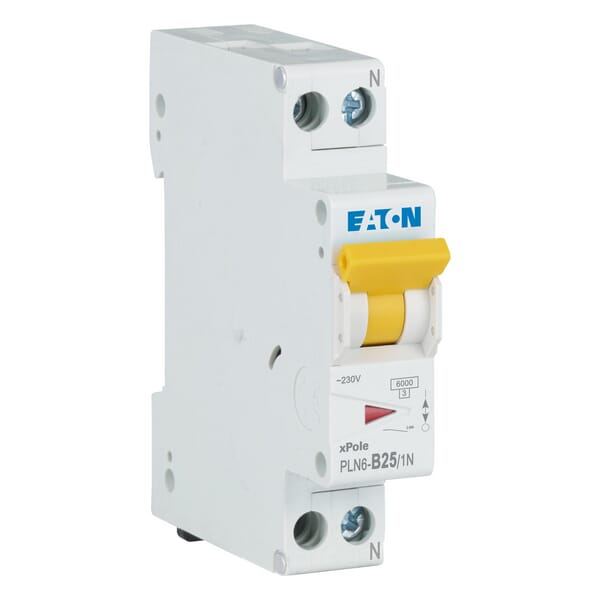

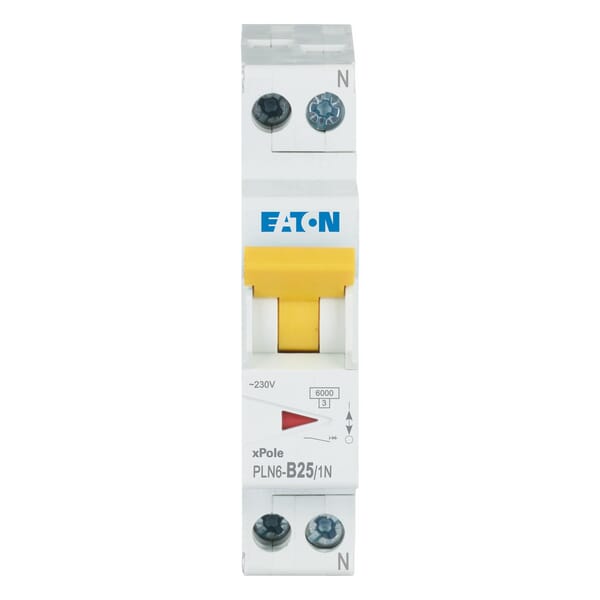

Product details
| Additional equipment possible | Yes |
|---|---|
| Ambient temperature during operating | -25.0 °C |
| Built-in depth | 70.5 mm |
| Concurrently switching neutral conductor | Yes |
| Connectable conductor cross section multi-wired | 1-25 mm² |
| Connectable conductor cross section solid-core | 1-25 mm² |
| Current limiting class | 3 |
| Explosion-proof | No |
| Flush-mounted installation | No |
| Frequency | 50-60 Hz |
| Insulation class | 20 |
| Manufacturer Product ID | 263166 |
| Number of poles | 2 |
| Number of protected poles | 1 |
| Over voltage category | 3 |
| Pollution degree | 2 |
| Power loss | 4.2 W |
| Rated current | 25 A |
| Rated impulse withstand voltage Uimp | 4 V |
| Rated insulation voltage Ui | 440 V |
| Rated short-circuit breaking capacityat 230 V | 0 kA |
| Rated short-circuit breaking capacityat 400 V | 0 kA |
| Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V | 6 kA |
| Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V | 6 kA |
| Rated voltage | 230 V |
| Release characteristic | B |
| Technical info | The Xpole circuit breakers from Moeller Electric program consists of a number of different types of circuit-breakers:, PLS4 series: nominal switching capacity 4.5 kA (IEC / EN 60898) C characteristic,, PLN6 series: nominal switching capacity 6 kA (IEC / EN 60898) B and C characteristic,, PLS6 series: nominal switching capacity 6 kA (IEC / EN 60898) B and C characteristic, PLSM series: nominal switching capacity 10 kA (IEC / EN 60898) B, C and D characteristic,, PLHT series: nominal switching capacity to 25 kA (IEC / EN 60947-2) C and D characteristic., Obviously the above series is also a wide range of accessories available, such as auxiliary contacts |
| Unit | Each |
| Voltage type | AC |
| Width in number of modular spacings (mm) | 1 mm |
Logistics
| EAN | 4015082631666 |
|---|---|
| Unit of measure | EA |
| Weight | 117 g |
| Dimensions | 94 × 78 × 27 mm |
| Dangerous goods | No |
You might also like
Free shipping
BPA000362319

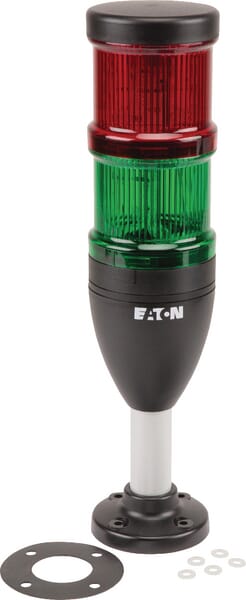

Eaton Complete 24-V LED RG SL7100LRG24LED
£280.63 excl.
£336.76 incl.
In stock
Expected to ship on Tuesday 22 September
Free shipping
BPA000344466

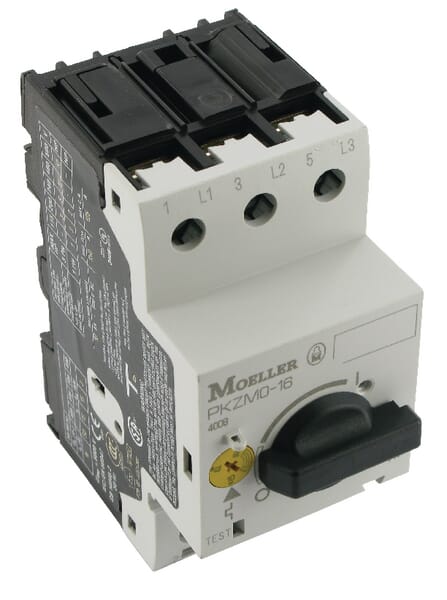

Eaton Motor Protection Circuit breaker PKZM016
£172.08 excl.
£206.50 incl.
In stock
Expected to ship on Tuesday 22 September

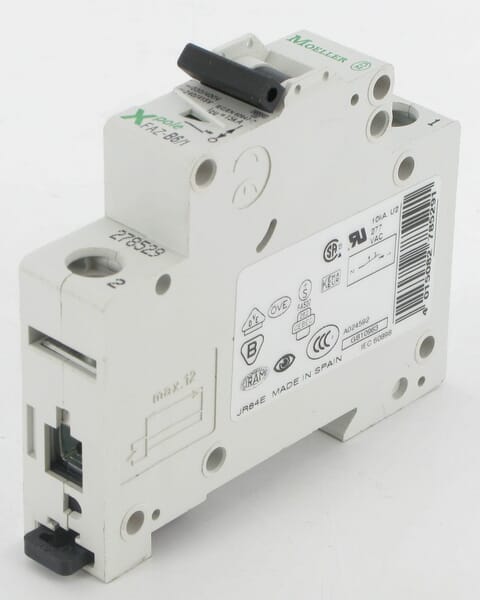

BPA000267095
Eaton Miniature circuit-breaker FAZB161
£27.24 excl.
£32.69 incl.
In stock
Expected to ship on Tuesday 22 September
Free shipping

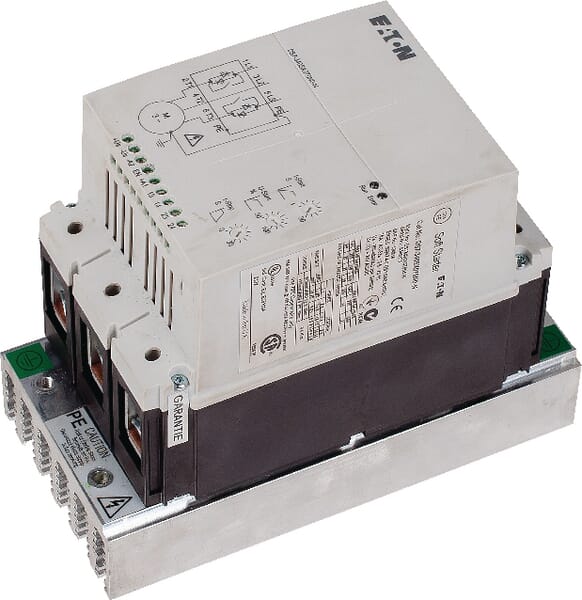

BPA000250246
Eaton Softstart stop 37kW 24AC/DC DS7340SX070N0N
£1,365.85 excl.
£1,639.02 incl.
In stock
Expected to ship on Tuesday 22 September
Free shipping

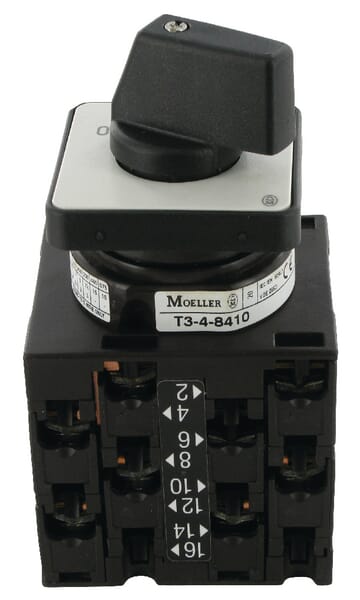

BPA000368933
Eaton Star-delta switch 13kW T348410E
£208.95 excl.
£250.74 incl.
In stock
Expected to ship on Tuesday 22 September
Free shipping
BPA000251593

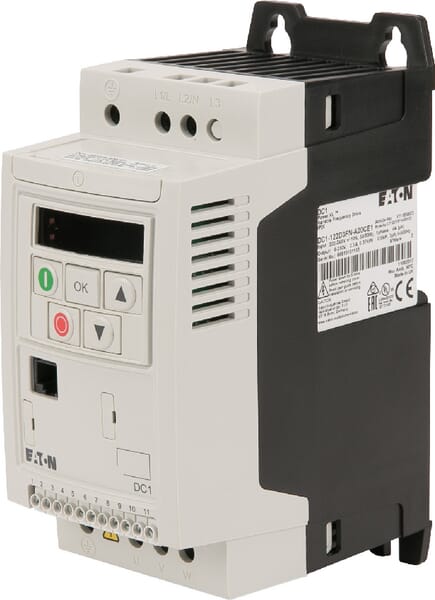

Eaton Frequency controller 0.37kW EMC IP20 1PH DC1122D3FNA20CE1
£338.26 excl.
£405.91 incl.
In stock
Expected to ship on Tuesday 22 September
Recently viewed

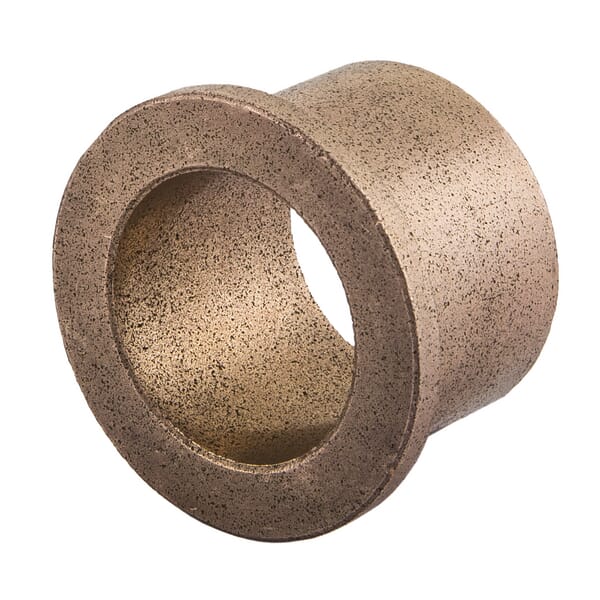

BPA000237008
